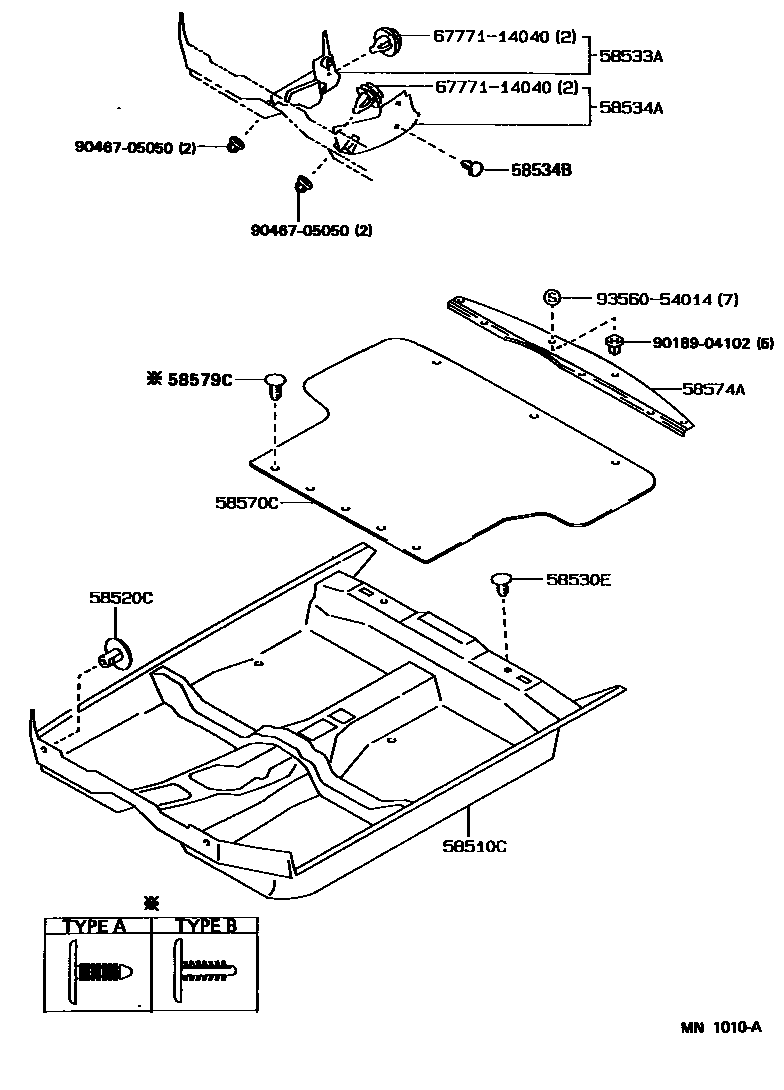

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
58520CCLIP(FOR FRONT FLOOR CARPET)
58530ECLIP(FOR FRONT FLOOR REAR CARPET)
58533ACOVER, FLOOR CARPET, CENTER RH
58534AMAT, TRANSMISSION COVER
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
58570CCARPET ASSY, REAR FLOOR
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
58579CCLIP, REAR FLOOR CARPET SET
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
9018904102
main90189-04102
9046705050
main90467-05050
9356054014
main93560-54014
13 parts on this diagram · 1 diagram in section
