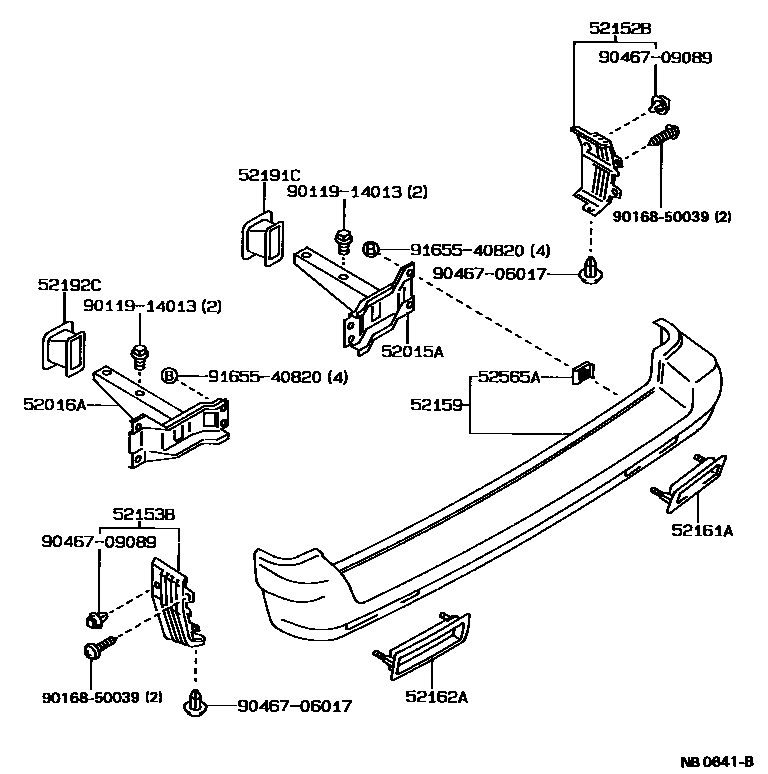

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52191CSEAL, REAR BUMPER ARM, RH
52192CSEAL, REAR BUMPER ARM, LH
52565ARETAINER, REAR BUMPER, LOWER
9011914013
main90119-14013
9016850039
main90168-50039
9046706017
main90467-06017
9046709089
main90467-09089
9165540820
main91655-40820
15 parts on this diagram · 1 diagram in section
