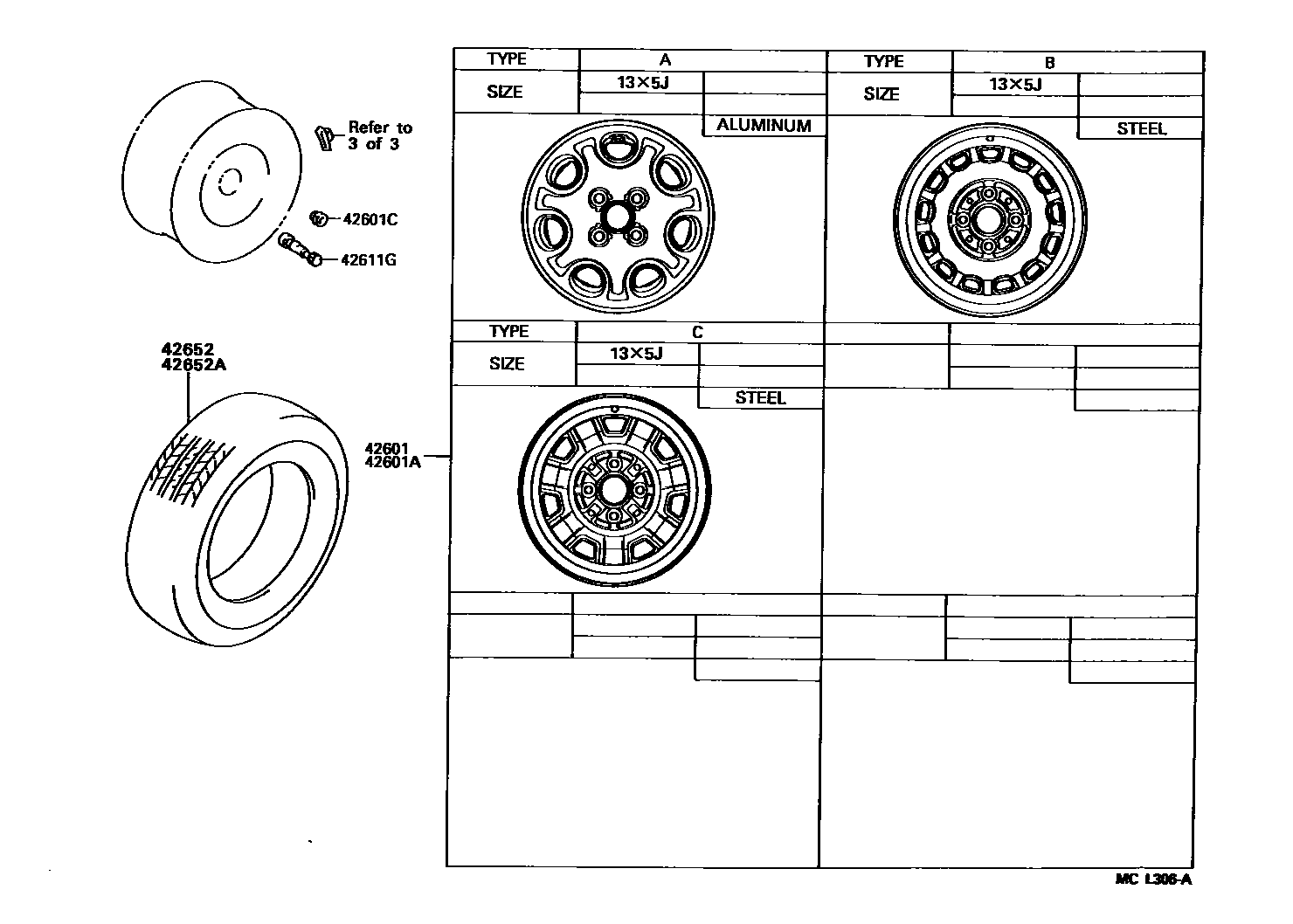

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-12820-03×4iAE95199009-199508

13X5J,TYPE B,SILVER

main42611-1A030×4iAE95..SR5199009-199508

13X5J,ALUMINUM,TYPE A

main42611-20300-03×4iAE95..XL..ARL199009-199508

13X5J,TYPE C,DARK GRAY

42601AWHEEL, DISC (FOR SPARE)

main42611-12820-03iAE95199009-199508

13X5J,TYPE B,SILVER

main42611-1A030iAE95..SR5199009-199508

13X5J,13X5J,ALUMINUM,TYPE A

main42611-20300-03iAE95..XL..ARL199009-199508

13X5J,TYPE C,DARK GRAY

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iAE95..XL199009-199508

W(WHEEL CAP)

main90942-01021×16iAE95199009-199508

main90942-01033×16iAE95..SR5199009-199508

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAE95199009-199508

42652TIRE

main42605-12200×4iAE95..GEN199009-199508

185/70SR13,W(TUBE)

main42605-20100×4iAE95..GEN199009-199508

165SR13,W(TUBE)

main42611-12820-03×4iAE95..GEN199009-199508

13X5J,SILVER

main42652-12730×4iAE95..XL199009-199508

165SR13,ALL SEASON

main42652-12770×4iAE95..SR5199009-199308

185/70SR13,ALL SEASON

main42652-12780×4iAE95..SR5199009-199508

185/70SR13

main42652-12790×4iAE95..GEN199009-199508

185/70R13,SAND

main42652-14140×4iAE95..XL199009-199508

165SR13,*(B),*(D),*(T)

main42652-14290×4iAE95..XL199009-199508

165SR13,*(Y) & W(WHEEL CAP)

42652ATIRE (FOR SPARE)

main42605-12200iAE95..GEN199009-199508

185/70SR13,W(TUBE)

main42605-20100iAE95..GEN199009-199508

165SR13,W(TUBE)

main42611-12820-03iAE95..GEN199009-199508

13X5J,SILVER

main42652-12730iAE95..XL199009-199508

165SR13,ALL SEASON

main42652-12770iAE95..SR5199009-199308

185/70SR13,ALL SEASON

main42652-12780iAE95..SR5199009-199508

185/70SR13

main42652-12790iAE95..GEN199009-199508

185/70R13,SAND

main42652-14140iAE95..XL199009-199508

165SR13,*(B),*(D),*(T)

main42652-14290iAE95..XL199009-199508

165SR13,*(Y) & W(WHEEL CAP)

6 parts on this diagram · 3 diagrams in section
