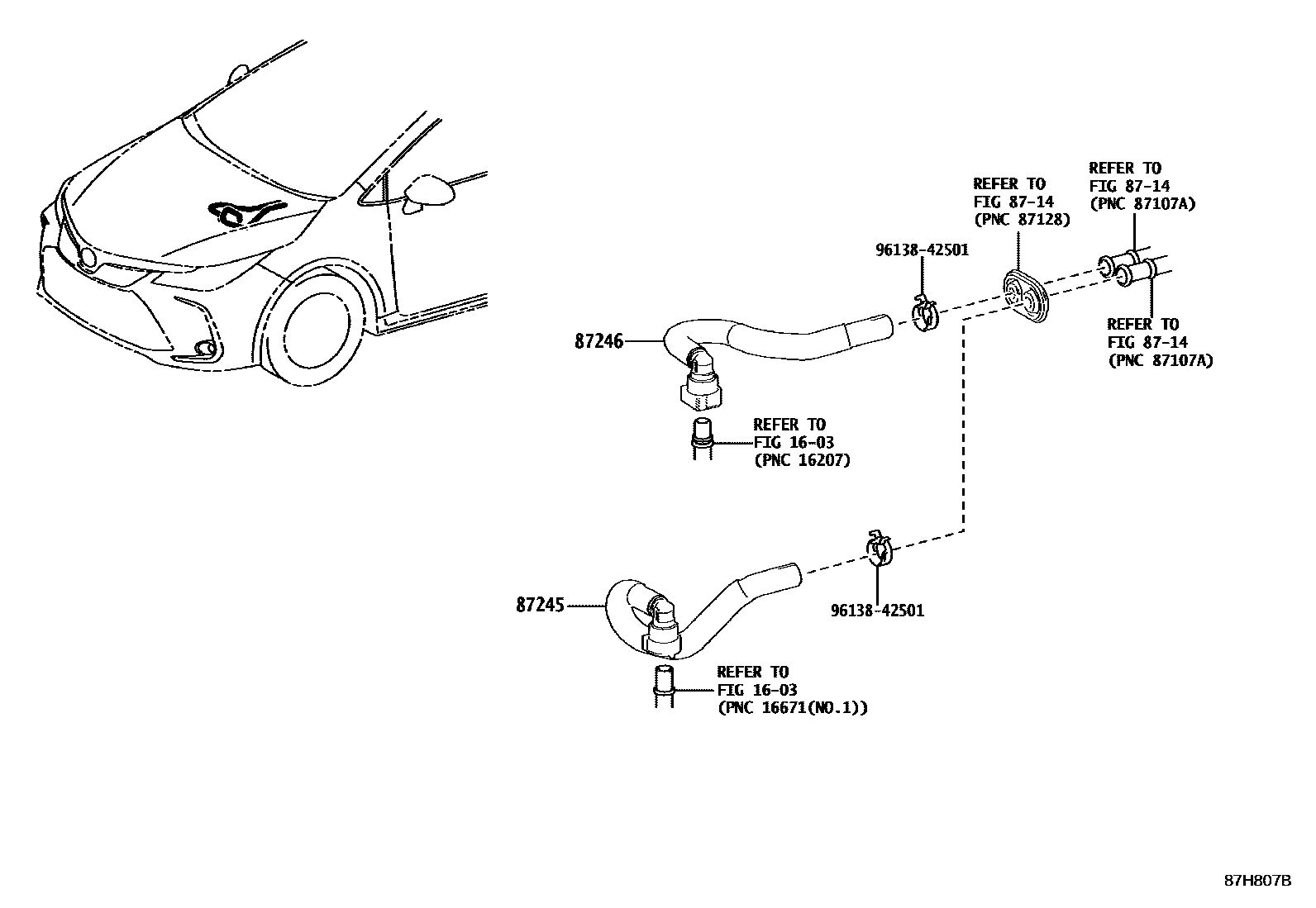

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMZEA12,18201904-202305

main87209-12770iMZEA11202008-202305

main87245-02Q50iZRE210..TH201908-202011

LOW GRADE PACKAGE

main87245-02Q50iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306-202410

main87245-02Q50iZRE210..D..GEN;ZRE210,211..CVT..(E,G,V)..(GEN,MA,PHL,SGP,TH,VN)201908-202306

UP GRADE PACKAGE

main87245-02S10iZRE210..N;ZRE217,218201904-202405

main87245-02S40iZWE211..GCC,TAIW201904-202305

main87245-02W30iZRE210..E..PHL201908-202112

main87245-F4090iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)201908-202410

87246HOSE, HEATER WATER, OUTLET

main87209-12710iMZEA12201904-202305

main87209-12780iMZEA11,17202008-202305

main87245-02Q60iZRE211..IDN201908-202306

UP GRADE PACKAGE

main87245-02Q60iZRE211..G..PHL202306-202410

main87245-02S00iZRE210..E..PHL201908-202112

main87245-02S20iZRE211..TAIW201904-202405

main87245-02S50iZWE211..GCC201904-202305

main87245-F4100iZWE211..V..(PHL,TH)201908-202410

9613842501

main96138-42501

5 parts on this diagram · 6 diagrams in section
