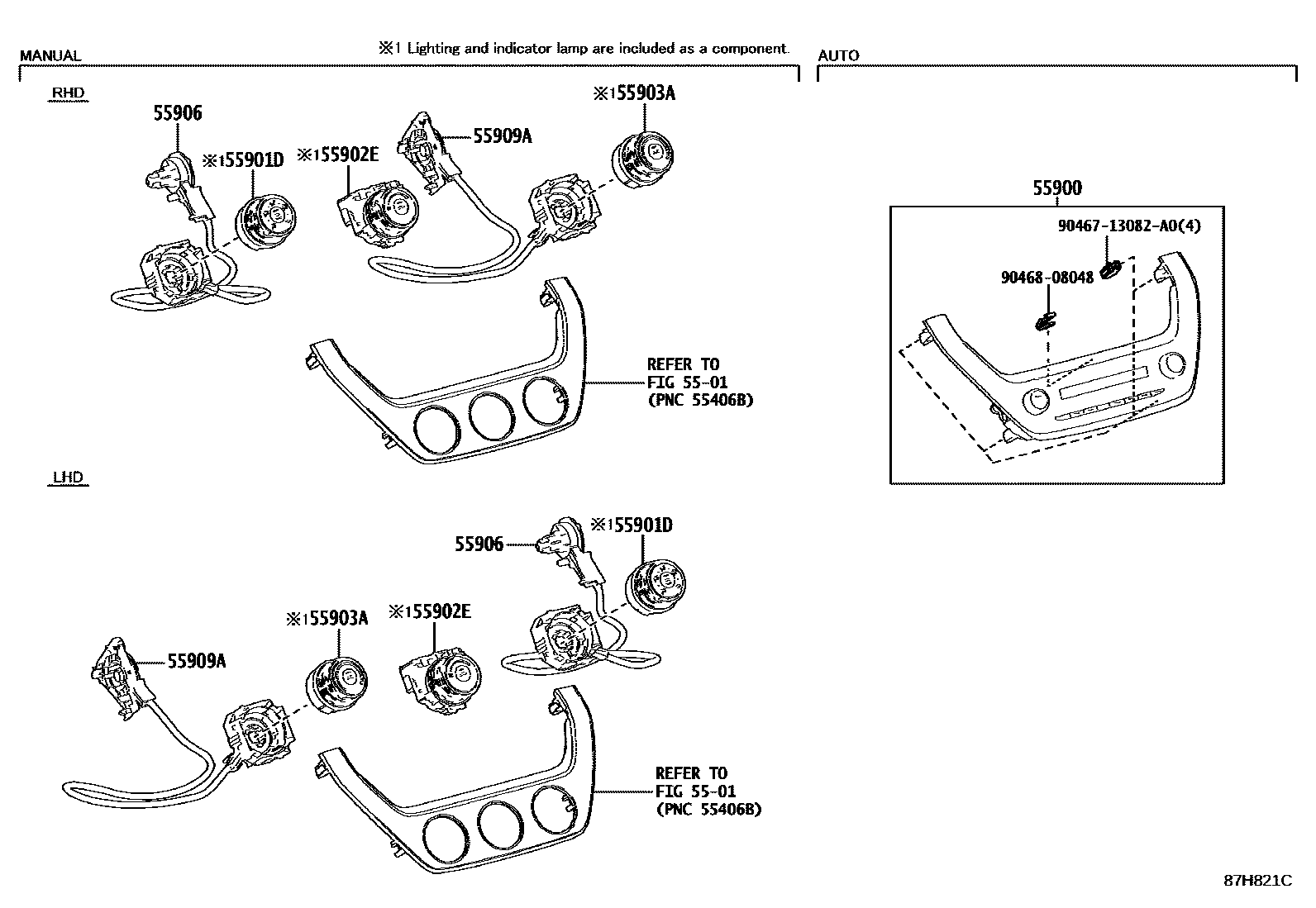

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-02G00-B0iZRE211,ZWE211..(G,V)..VN202201-202306

SILVER,TRIM0#,2#

main55900-02G10-B0supersedes 55900-02F90-B0iZRE211..E..VN;ZRE210,ZWE211..(G,V)..PHL201908-202306

SILVER,TRIM0#,2#

main55900-02G30-B0iZRE211..E..TAIW201904-202304

SILVER,TRIM1#,2#

main55900-02G50-B0iZWE211..MA201908-202112

SILVER,TRIM0#,2#

main55900-02G60-B0iZRE211..TH201908-202306

SILVER,TRIM2#

main55900-02N00-B0iZRE210,211,ZWE211..G..TH202306

SILVER,TRIM2#

main55900-02N10-B0iZRE211,ZWE211..(G,V)..IDN202306

SILVER,TRIM2#

main55900-02N20-B0iZRE211..G..PHL202306-202410

SILVER,TRIM2#

main55900-02N30-B0iZRE210,211,ZWE211..(G,V)..(GEN,VN)202306

SILVER,TRIM0#,2#

main55900-02N40-B0iZRE218,ZWE211..E202304

SILVER,TRIM2#,3#

main55900-02Q60-B0iZRE211..X..PHL202411

SMOKE SILVER METALLIC,TRIM2#

main55900-0A110-B1iZRE211..X..VN;ZWE211..X..PHL202411

SMOKE SILVER METALLIC,TRIM2#

main55900-0A120-B1iZRE211,ZWE211..RHD..X202411

SMOKE SILVER METALLIC,TRIM2#

main55900-0A130-B1iMZEA12..TAIW202405

SMOKE SILVER METALLIC,TRIM2#

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-02230iZRE211..D201904-202304

main55901-02250iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218..D202304

main55901-12280iZRE211..D202306-202411

main55901-12340iZRE210..D..PHL201908-202112

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-02280iMZEA1#,ZRE210..GCC201904-202305

UP GRADE PACKAGE

main55902-02320iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218..D202304

main55902-12410iZRE210..D202306

main55902-26150iZRE211..IDN;ZRE210..CVT..D..(GEN,PHL)201908-202306

UP GRADE PACKAGE

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-02450iMZEA1#,ZRE210..GCC201904-202305

UP GRADE PACKAGE

main55903-02470iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218..D202304

main55903-12380iZRE210..D202306

main55903-12390iZRE210..D..GEN201908-202306

main55903-12400iZRE211..D202306-202411

main55903-26080iZRE211..IDN201908-202306

UP GRADE PACKAGE

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-26080iZRE211..IDN201908-202009

UP GRADE PACKAGE

main55906-26081iZRE211..IDN202010-202306

UP GRADE PACKAGE

main55906-26090iMZEA1#,ZRE21#..LHD..(D,N)201904-202009

UP GRADE PACKAGE

main55906-26091iZRE211..D202304-202411

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26130iZRE210..D..GEN201908-202009

main55909-26131iZRE210..D..GEN202010-202306

main55909-26140iMZEA1#,ZRE21#..LHD..CVT..(D,N)201904-202009

UP GRADE PACKAGE

main55909-26141iZRE211..D202010-202304

9046713082A0

main90467-13082A0

9046808048

main90468-08048

9 parts on this diagram · 5 diagrams in section
