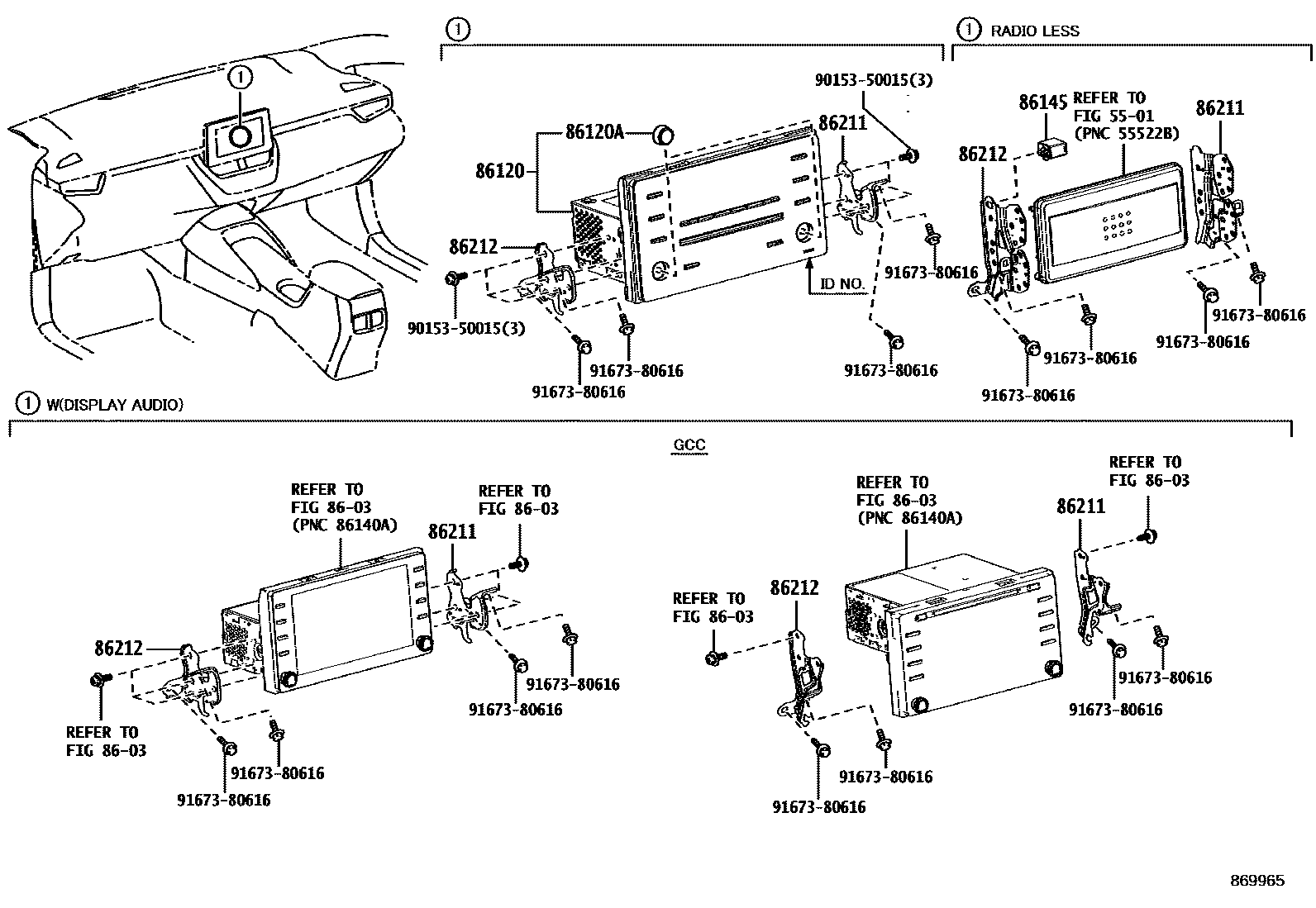

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0004 1 0007 1 0010 1 0013 1CONDENSER

5501

8603

86120RECEIVER ASSY, RADIO

main86120-02L80iZWE211..E201908-202306

PANASONIC,ID=510325

main86120-02L80iZWE211..E201908-202112

PANASONIC,ID=510325,LAOS SPEC

main86120-02L80iZWE211..G201908-202201

PANASONIC,ID=510325, LOW GRADE PACKAGE

main86120-02L90iMZEA11,ZRE210,ZWE211..D..GCC201904-202108

PANASONIC,ID=510326,AUDIO-CD & *BT & USB & 6SPEAKER

main86120-02L90iMZEA12;MZEA11,ZRE210,ZWE211..N..GCC201904-202108

PANASONIC,ID=510326,AUDIO-CD & *BT & USB & 4SPEAKER

main86120-02M80iZRE210..D..GEN201908-202201

PANASONIC,ID=510434,TRINIDAD & TOBAGO,BARBADOSE SPEC

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25319iZWE211..G201908-202201

LOW GRADE PACKAGE

main90011-25319iZWE211..E201908-202112

LAOS SPEC

main90011-25319iZRE210..(D,G)..(GEN,TH)201908-202306

86145CONNECTOR, ANTENNA MALE

main86145-52010iZRE210,ZWE211..V..PHL201904-202306

86211BRACKET, RADIO, NO.1

main86211-02570iZWE211..GEN,IDN;ZWE211..(G,V)..TH;ZRE210,211..GEN,TH201908-202306

CAMBODIA SPEC

main86211-02570iZWE211..GEN,IDN;ZWE211..(G,V)..TH;ZRE210,211..GEN,TH201908-202306

MYANMAR SPEC

main86211-02570iZRE210..V201908-202112

LAOS SPEC

main86211-02570iZRE211..MA202306

BRUNEI SPEC

main86211-02570iZRE211..G..PHL;ZWE211..V..(PHL,TH)202101-202410

main86211-02580iZRE210..6F;ZWE211..MA201908-202306

main86211-02590iZRE210..GCC202305

AUDIO-*DA(8INCH) & 4SPEAKER

main86211-02590iMZEA11,ZRE210,ZWE211..D..GCC201904-202108

AUDIO-CD & *BT & USB & 4SPEAKER

main86211-02590iMZEA11,ZRE210,ZWE211..D..GCC201904-202108

AUDIO-CD & *BT & USB & 6SPEAKER

main86211-02590iZRE210..GCC202305

AUDIO-*DA(8INCH) & 6SPEAKER

main86211-02590iZRE210..GCC202305

ANTENNA-WITH(DAB)&AUDIO-*DA(8INCH) & 4SPEAKER

main86211-02590iZRE210..GCC202305

ANTENNA-WITH(DAB)&AUDIO-*DA(8INCH) & 6SPEAKER

main86211-02600iZRE211,ZWE211..TAIW201904-202305

main86211-02660iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

AUDIO-*DA(7INCH) & DVD & 6SPEAKER

main86211-02660iMZEA12;MZEA11,ZRE210,ZWE211..N..GCC202108-202305

AUDIO-*DA(8INCH) & 6SPEAKER

main86211-02660iMZEA12;MZEA11,ZRE210,ZWE211..N..GCC202108-202305

AUDIO-*DA(8INCH) & 4SPEAKER

main86211-YY090iZRE211..TAIW202304-202405

86212BRACKET, RADIO, NO.2

main86212-02570iZRE210..V201908-202112

LAOS SPEC

main86212-02570iZRE210..V201908-202306

CAMBODIA SPEC

main86212-02570iZRE210..V201908-202306

MYANMAR SPEC

main86212-02570iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,SGP,TH,VN202306

BRUNEI SPEC

main86212-02570iZRE211..G..PHL;ZWE211..V..(PHL,TH)202101-202410

main86212-02580iZRE210..6F;ZWE211..MA201908-202306

main86212-02590iMZEA17,ZRE217,ZWE211..D202305

ANTENNA-WITH(DAB)&AUDIO-*DA(8INCH) & 6SPEAKER

main86212-02590iZWE211..N..GCC;MZEA11,12,18..GCC202305

AUDIO-*DA(8INCH) & 6SPEAKER

main86212-02590iZWE211..N..GCC;MZEA11,12,18..GCC202305

ANTENNA-WITH(DAB)&AUDIO-*DA(8INCH) & 4SPEAKER

main86212-02590iMZEA11,ZRE210,ZWE211..D..GCC201904-202108

AUDIO-CD & *BT & USB & 4SPEAKER

main86212-02590iMZEA11,ZRE210,ZWE211..D..GCC201904-202108

AUDIO-CD & *BT & USB & 6SPEAKER

main86212-02590iMZEA17,ZRE217,ZWE211..D202305

AUDIO-*DA(8INCH) & 4SPEAKER

main86212-02600iMZEA11,12..N;MZEA17,18,ZRE217,218,ZWE211..LHD..(D,N)201904-202305

main86212-02660iMZEA11,ZRE210,ZWE211..D..GCC202108-202305

AUDIO-*DA(8INCH) & 6SPEAKER

main86212-02660iMZEA11,ZRE210,ZWE211..D..GCC202108-202305

AUDIO-*DA(8INCH) & 4SPEAKER

main86212-02660iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

AUDIO-*DA(7INCH) & DVD & 6SPEAKER

main86212-YY090iMZEA12,ZRE218,ZWE211..(E,V,X)..TAIW202304-202405

9015350015

main90153-50015

9167380616

main91673-80616

9 parts on this diagram · 5 diagrams in section
