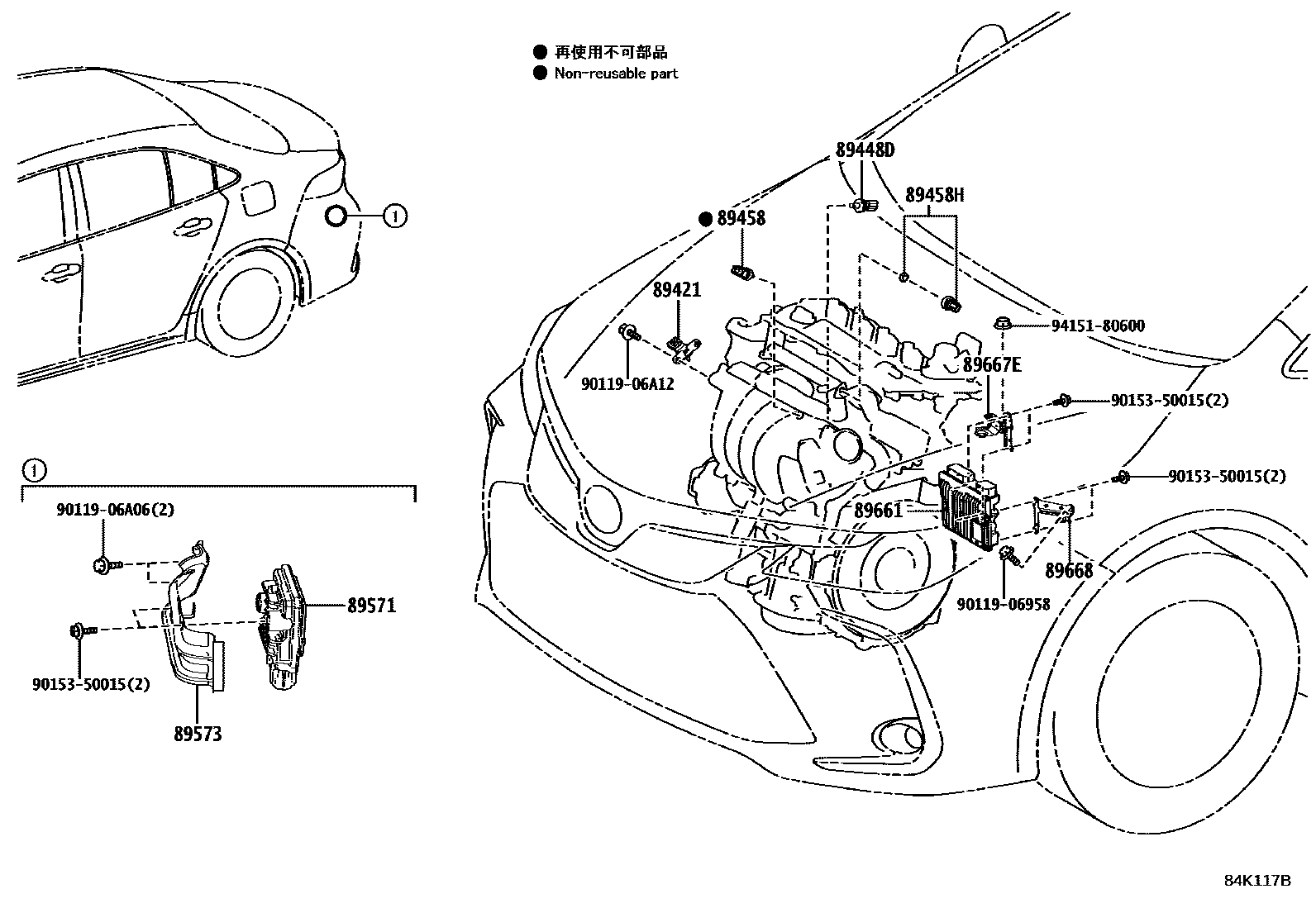

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE210..N;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201904-202410

main89421-33010iMZEA1#201904-202305

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZEA1#201904-202305

89458SENSOR, FUEL PRESSURE

main89458-33030iMZEA1#201904-202305

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZEA1#201904-202206

main89458-33042iMZEA1#202207-202305

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iMZEA1#201904-202306

main89571-42010iMZEA1#;ZRE210,211..TH,VN202305

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02040iZRE210,211..TH,VN201908-202306

main89573-12120iMZEA1#201904-202305

89661COMPUTER, ENGINE CONTROL

main89661-0A470iZWE211..TAIW202405-202411

DENSO

main89661-0A470iZWE211..GCC202410-202411

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),MARK 89661-0A470

main89661-0A750iZWE211..GCC202411

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89661-0A750iZWE211..V..(SGP,TAIW,VN);ZWE211..(E,G,X)..(SGP,TAIW,TH)202411

DENSO

main89661-0A760iZWE211..X..PHL;ZWE211..GCC,GEN,IDN202411

DENSO

main89661-0ZZ40iZWE211..(G,V)..(SGP,TH)201904-202209

DENSO

main89661-0ZZ50iZWE211..GEN,IDN,PHL201904-202411

DENSO

main89661-12W00iMZEA12201904-202305

DENSO TEN

main89661-12W50iMZEA11202008-202108

DENSO

sub89661-12W51

main89661-12W51iMZEA11,17202109-202411

DENSO

main89661-1AJ30iMZEA11,17202305-202411

DENSO TEN,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89661-1AK60iMZEA11,17202411

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89661-1AK70iMZEA11,17202411

DENSO

main89666-02400iZRE211..X..(MA,PHL)202411

DENSO TEN

main89666-02420iZRE210..TH201908-202201

DENSO TEN

main89666-02430iZRE211..TH201908-202012

DENSO TEN

sub89666-02431

main89666-02431iZRE211..TH202101-202201

DENSO TEN

main89666-02440iZRE210..GCC201904-202209

DENSO TEN

main89666-02450iZRE210..SGP201908-202103

DENSO TEN

sub89666-02451

main89666-02451iZRE210..SGP202104-202306

DENSO TEN

main89666-02460iZRE210..CVT..(GEN,PHL)201908-202201

DENSO TEN

main89666-02480iZRE210..6F201908-202112

DENSO TEN

main89666-02500iZRE211..(E,G)..(IDN,MA)201908-202201

DENSO TEN

main89666-02510iZRE211..TAIW201904-202109

DENSO TEN

main89666-02780iZRE210,217..GCC202411

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89666-02E50iZRE211..TAIW202109-202209

DENSO TEN

main89666-02F10iZRE210..TH202201-202306

DENSO TEN

main89666-02F20iZRE211..TH,VN202201-202306

DENSO TEN

main89666-02G40iZRE210,217..GCC202209-202305

DENSO TEN

main89666-02G50iZRE210..GEN202201-202306

DENSO TEN

main89666-02G60iZRE211..G..PHL202201-202410

DENSO TEN

main89666-02G70iZRE211..TAIW202209-202405

DENSO TEN

main89666-02G80iZWE211..G;ZWE211..SGP,VN202201-202411

DENSO

main89666-02G80iZWE211..GCC202305-202411

DENSO,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),MARK 89666-02G80

main89666-02G90iZRE210..SGP202306

DENSO TEN

main89666-02J40iZRE210,217..GCC202305-202411

DENSO TEN,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89666-02K60iMZEA12,18..GCC202305

DENSO TEN

main89666-02K70iMZEA12,18..GCC202305

DENSO TEN,EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main89666-02L10iMZEA12..TAIW202405

DENSO TEN

main89666-02L50iZRE218202405

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02550iZRE210..N;ZRE217,218201904-202405

main89667-02570iZWE211..GCC,TAIW201904-202305

main89667-02580iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

main89667-02600iMZEA1#201904-202305

main89667-F4040iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02540iZRE210..N;ZRE217,218201904-202405

main89668-02550iZRE211..G..PHL201908-202410

main89668-02560iZWE211..GCC,TAIW201904-202305

main89668-02590iMZEA1#201904-202305

main89668-F4050iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 4 diagrams in section
