82715BRACKET,WIRING HARNESS CLAMP

main82715-12W60iZRE210..6F201908-202112

main82715-12X60iMZEA1#,ZRE210,ZWE211..GCC201904-202410

82715WBRACKET, WIRING HARNESS CLAMP

main82715-44510iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)¥200201908-202410

main82729-20040iZRE211..TAIW¥220201904-202405

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-0Z190iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main82715-F4300iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-0Z170iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main82715-0Z180iZRE211,ZWE211..TAIW201904-202405

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-10310iZWE211..E;ZWE211..MA¥770201904-202410

main82715-12V90iMZEA12,18¥300201904-202305

main82715-K0030iMZEA11¥200202008-202305

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12¥7,600201904-202305

main84540-52070iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)¥7,600201904-202410

main84540-K0010iMZEA11¥7,600202008-202305

89419BSENSOR, SHIFT STROKE

main89419-12011iMZEA12¥4,100201904-202305

main89419-K2010iMZEA11¥4,100202008-202305

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA1#¥2,410201904-202305

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZRE211..G..PHL¥9,900201904-202410

main89467-12280iMZEA12,18¥9,900201904-202305

main89467-47030iZWE211..V..(PHL,TH)¥9,900201904-202410

main89467-K0020iMZEA11,17¥9,900202008-202305

89467CSENSOR, AIR FUEL RATIO, NO.2

main89465-47090iZWE211..GCC¥6,400201904-202410

main89467-12290iMZEA12,18¥9,900201904-202305

main89467-12350iMZEA11¥9,800202008-202305

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE211..(G,V)..TH;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW,VN¥3,670202104-202204

sub89491-28091¥3,330

main89491-28091iZWE211..V..(PHL,TH)¥3,330202205-202410

main89491-33051iMZEA12¥3,670201904-202204

sub89491-33052¥3,330

main89491-33052iMZEA12¥3,330202205-202305

main89491-47011iZWE211¥3,670201904-202103

sub89491-28090¥3,670

main89491-50081iMZEA11¥3,670202008-202204

sub89491-50082¥3,330

main89491-50082iMZEA11¥3,330202205-202305

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12150iMZEA12201904-202305

main89535-12180iMZEA12..TAIW202405

main89535-12190iMZEA11202008-202305

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12¥230201904-202305

main89539-K0010iMZEA11¥280202008-202305

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12,18¥230201904-202305

main89539-K0020iMZEA11¥300202008-202305

89615SENSOR, KNOCK CONTROL

main89615-20090iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)¥2,370201904-202410

8271512X50BRACKET,WIRING HARNESS CLAMP

main82715-12X50¥260

9011906A12

main90119-06A12¥60

9011906A23

main90119-06A23¥60

9015350015

main90153-50015¥60

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

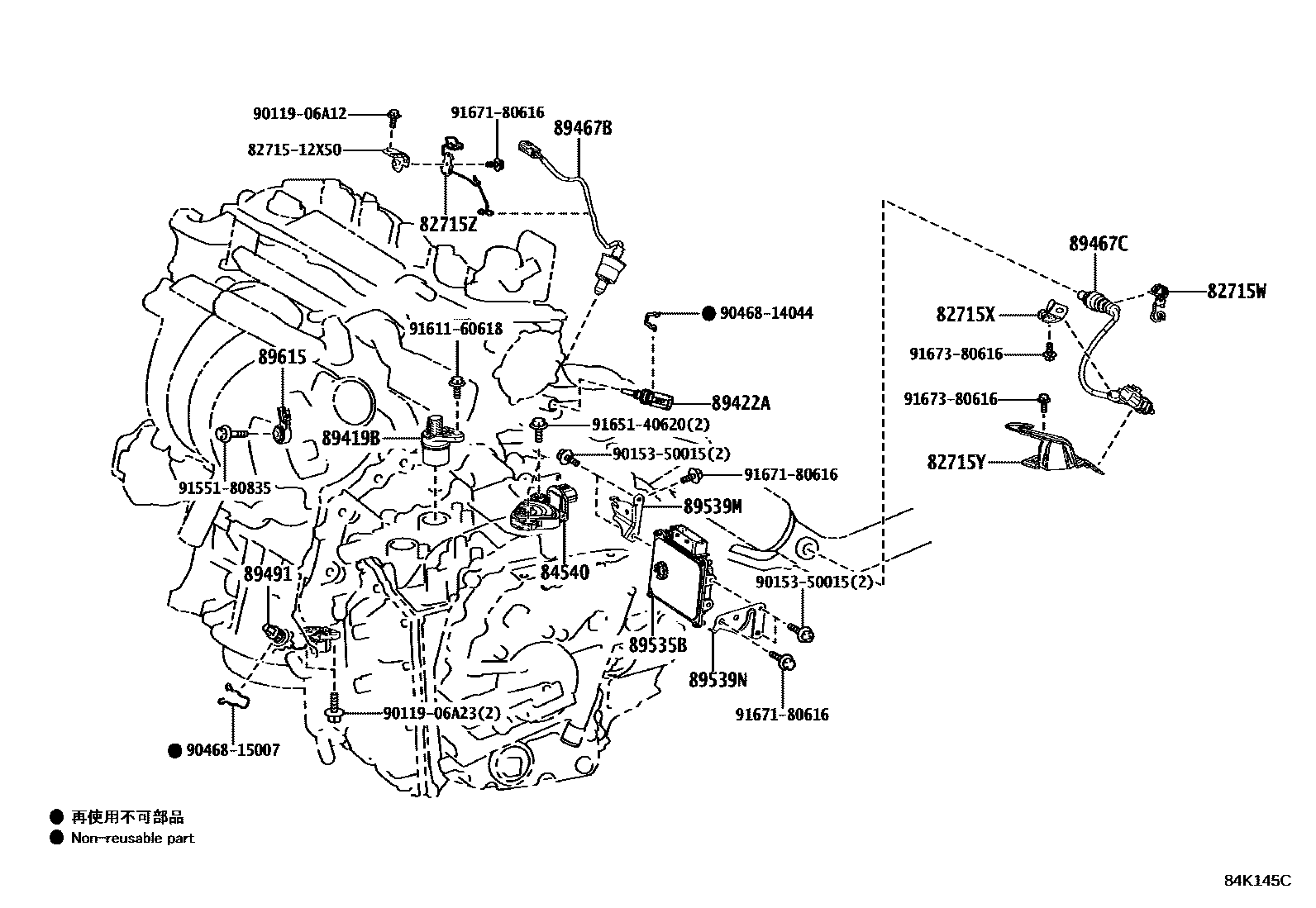

26 parts on this diagram · 16 diagrams in section
