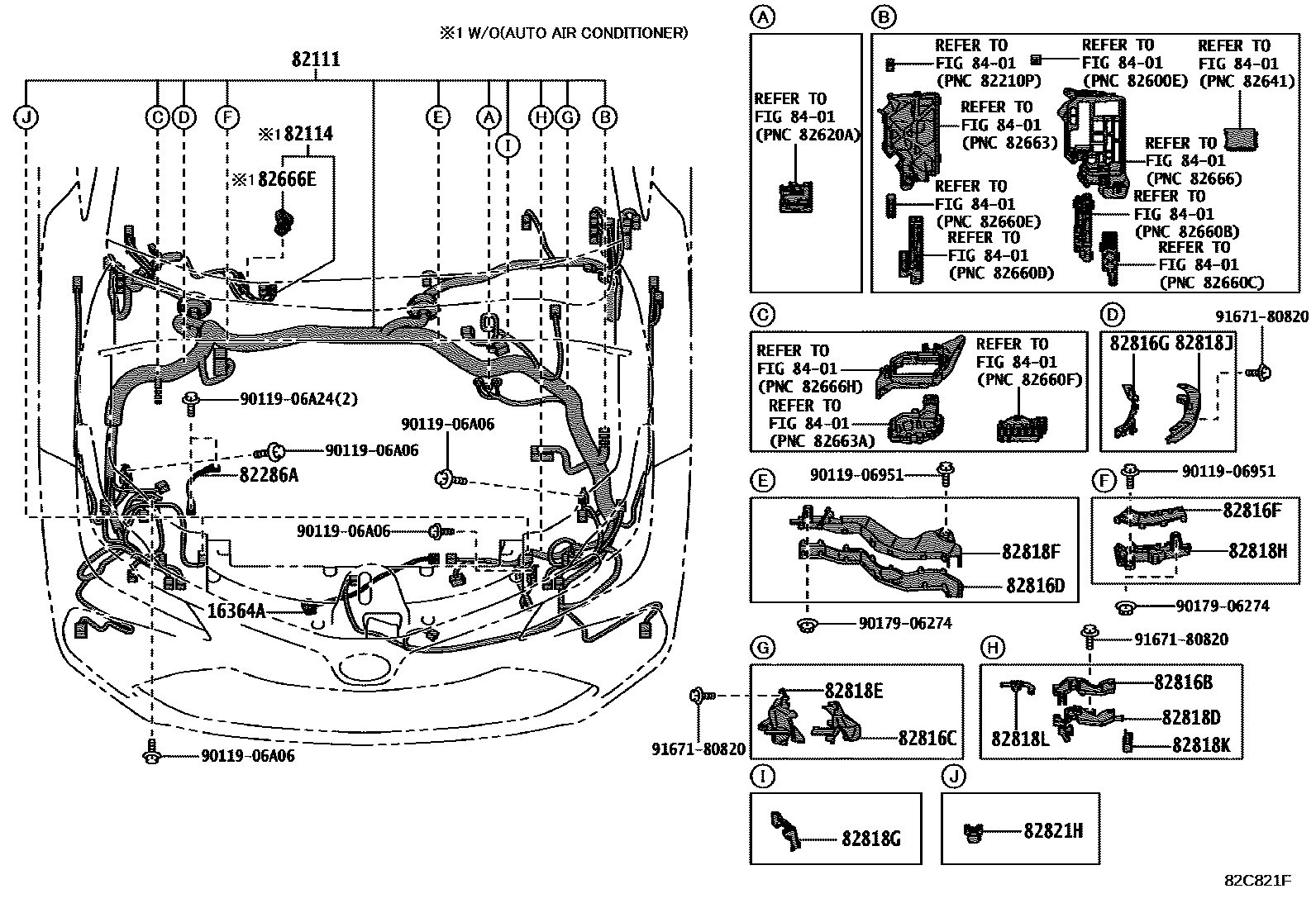

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE 0009 1ENGINE 0010 1ENGINE 0011 1ENGINE 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1DOOR 0015 1FLOOR & ROOF 0016 1HIGH TENSION CABLE 0017 1SEAT 0018 1SEAT 0019 1CLAMP & BRACKET 0020 1CLAMP & BRACKET 0021 1CONNECTOR 1/3 0022 1CONNECTOR 2/3 0023 1CONNECTOR 3/3

16364AWIRE, COOLING FAN

main16364-0T030i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main16364-0T040i2ZRFE..ZRE211..TAIW202304-202405

main16364-F2010iM15AFKS,M20AFKS..MZEA1#201904-202305

82111WIRE, ENGINE ROOM MAIN

main82111-F2132iZWE211..E202304-202405

LOW GRADE PACKAGE

main82111-F2140iZWE211..MA201908-202006

main82111-F2141iZWE211..MA202007-202112

main82111-F2210iMZEA11202008-202305

main82111-F2211iMZEA17202305-202405

UP GRADE PACKAGE

main82111-F2U01iZRE210..V202306-202411

main82111-F2U14iZWE211..PHL202201-202306

main82111-F2U80iZWE211..(G,N,V)..(GEN,IDN,SGP,TH)201908-202006

main82111-F2U81iZWE211..(G,N,V)..(GEN,IDN,SGP,TH)202007-202101

main82111-F2U82iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP202101-202201

main82111-F2U83iZWE211..G;ZWE211..GEN,IDN202201-202306

main82111-F2U84iZWE211..G;ZWE211..GEN,IDN202306-202411

main82111-F2U91iZRE211..MA202306-202411

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-F2V50iZWE211..G201908-202006

LOW GRADE PACKAGE

main82111-F2V51iZWE211..E202007-202112

main82111-F2W20iZRE211..(E,G)..TAIW201904-202005

main82111-F2W21iZRE211..(E,G)..TAIW202006-202007

main82111-F2W22iZRE211..(E,G)..TAIW202007-202304

main82111-F2W23iZRE218..E202304-202405

main82111-F2W60iZRE211..D201904-202007

main82111-F2W61iZRE211..D202008-202009

main82111-F2W62iZRE211..D202009-202304

main82111-F2W63iZRE218..D202304-202405

main82111-F2W80iZRE210..GCC201904-202012

sub82111-F2W81

main82111-F2W82iZRE210..GCC202012-202305

main82111-F2W83iZRE210..GCC202305-202405

UP GRADE PACKAGE

main82111-F2W90iMZEA12201904-202010

main82111-F2W91iMZEA12202011-202305

main82111-F2W92iMZEA12202305-202405

SAUDI ARABIA SPEC&UP GRADE PACKAGE

main82111-F2X00iZWE211..GCC201904-202011

main82111-F2X01iZWE211..GCC202012-202305

main82111-F2X02iZWE211..GCC202305-202405

main82111-F2Z00iZWE211..X..PHL202411

main82111-F2Z10iZRE211..D202306

main82111-FE320iZWE211..VN202201-202306

main82111-FE321iZWE211..VN202306-202411

main82111-FEQ50iZRE211..G..PHL202306-202410

main82111-FES80iZRE211..X..PHL202411

main82111-FES90iZRE211..X..VN202411

main82111-FET00iZWE211..V..TAIW202405-202510

LOW GRADE PACKAGE

main82111-FET20supersedes 82111-FET30iMZEA17202405

UP GRADE PACKAGE

main82111-FET60iZRE210..V202411

main82111-FET70iZWE211..G;ZWE211..(N,V)..(GEN,IDN)202411

main82111-FET80supersedes 82115-F2D01iZRE211..E..MA202411

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-FEU20iZWE211..VN202411

main82111-FEU90iZWE211..V..SGP202411

main82111-FEV00iZRE211..(E,G)..VN202411

main82111-FEV20iZRE210..D202411

main82115-F2390iMZEA12..TAIW202405

main82115-F2C80iZRE210..G..PHL201908-202306

main82115-F2C90iZRE210..E..GEN201908-202306

main82115-F2G60iZRE210..D..PHL201908-202112

main82115-F2G70iZRE210..D..GEN201908-202201

main82115-F2G71iZRE210..D..GEN202201-202306

main82115-F2J10iZRE210..E..PHL201908-202112

main82115-F2U30iZRE210..D..PHL202201-202306

main82115-F2U60iZWE211..SGP202201-202306

main82115-F2U61iZWE211..SGP202306-202411

main82115-F2U81iZRE211..VN202201-202306

main82115-F2U82iZRE211..VN202306-202411

main82115-F2W40iZWE211..V..TH202201-202306

main82115-F2W41iZWE211..V..TH202306-202410

main82115-F2Y50iZRE210..D202306-202411

main82116-0ZS40iZWE211..RHD..X202411

main82116-0ZS80iZRE211..X..MA202411

main82116-0ZW80iZRE218..E202405-202510

main82116-0ZX80iZRE218..D202405-202510

main82116-0ZX90supersedes 82116-0ZW90iZRE210..GCC202405

UP GRADE PACKAGE

main82116-0ZY00iMZEA12,18..GCC202405

SAUDI ARABIA SPEC&UP GRADE PACKAGE

main82116-0ZY10iZWE211..GCC202405

main82111-F2130supersedes 82116-0ZW70iZWE211..TAIW201904-202003

LOW GRADE PACKAGE

main82111-F2131supersedes 82116-0ZW70iZWE211..TAIW202004-202304

LOW GRADE PACKAGE

main82111-F2150iZWE211..N..GCC201904-202011

UP GRADE PACKAGE

main82111-F2151iZWE211..N..GCC202012-202305

UP GRADE PACKAGE

main82111-F2152iZWE211..N..GCC202305-202405

UP GRADE PACKAGE

main82111-F2C10supersedes 82116-0ZW70iZWE211..TAIW202004-202304

X PACKAGE

main82111-F2C11supersedes 82116-0ZW70iZWE211..V..TAIW202304-202405

X PACKAGE

main82111-F2L50supersedes 82115-F2Y40iZRE211..G..TAIW202004-202007

X PACKAGE

main82111-F2L51supersedes 82115-F2Y40iZRE211..G..TAIW202008-202304

X PACKAGE

main82111-F2U70supersedes 82111-FEU00iZRE210..SGP201908-202306

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-F2U90supersedes 82115-F2D01iZRE211..E..MA201908-202306

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-F2V02supersedes 82115-F2W50iZRE211..TH202201-202306

MIDDLE GRADE PACKAGE&TOYOTA SAFETY SENSE-WITHOUT

main82111-F2W00supersedes 82115-F2Y40iZRE211..G..TAIW201904-202004

UP GRADE PACKAGE

main82111-F2W01supersedes 82115-F2Y40iZRE211..G..TAIW202005-202008

UP GRADE PACKAGE

main82111-F2W02supersedes 82115-F2Y40iZRE211..G..TAIW202009-202108

UP GRADE PACKAGE

main82111-F2W30iZRE210..D..GCC201904-202108

LOW GRADE PACKAGE

main82111-F2W33iZRE210..D..GCC202108-202305

LOW GRADE PACKAGE

main82111-F2W40iMZEA12..N201904-202011

UP GRADE PACKAGE

main82111-F2W41iMZEA12..N202012-202305

UP GRADE PACKAGE

main82111-F2W42iMZEA12202305-202405

UP GRADE PACKAGE

main82111-FE030supersedes 82111-FEU00iZRE210..SGP202201-202306

X PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-FE041iZRE211..G..VN202201-202306

X PACKAGE

main82111-FE042iZRE211..G..VN202306-202411

X PACKAGE

main82111-FEQ60iMZEA18202305-202405

SAUDI ARABIA SPEC&LOW GRADE PACKAGE&FRONT FOG LAMP-WITH

main82111-FEQ70supersedes 82115-F2D01iZRE211..MA202306-202411

X PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-FEQ80supersedes 82111-FEU00iZRE210..SGP202306-202411

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82111-FEQ90iMZEA12..D202209-202305

SAUDI ARABIA SPEC& LOW GRADE PACKAGE

main82111-FET10iZWE211..N..GCC202405

UP GRADE PACKAGE

main82111-FET40iMZEA18202405

SAUDI ARABIA SPEC&LOW GRADE PACKAGE&FRONT FOG LAMP-WITH

main82111-FEU60supersedes 82111-FEU00iZRE210..SGP202411

UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH

main82115-F2840supersedes 82116-0ZW70iZWE211..V..TAIW202405-202410

X PACKAGE

main82115-F2G80supersedes 82115-F2D12iZRE210..TH201908-202201

LOW GRADE PACKAGE

main82115-F2U40supersedes 82111-F2U00iZRE210..V202201-202306

MYANMAR SPEC&X PACKAGE

main82115-F2U50supersedes 82111-FEQ40iZWE211..PHL202201-202306

X PACKAGE&TOYOTA SAFETY SENSE-WITH

main82116-0ZX00supersedes 82116-0ZW70iZWE211..TAIW202003-202004

LOW GRADE PACKAGE

main82116-0ZX70iMZEA12..GCC202405

UP GRADE PACKAGE

82114WIRE, ENGINE ROOM, NO.4

main82114-02050iMZEA1#,ZRE210..GCC201904-202305

UP GRADE PACKAGE

main82114-02060iZRE210..CVT..D..PHL201908-202306

main82114-02070iZRE210,211..(D,G)..(GEN,IDN)201908-202306

UP GRADE PACKAGE

82286AWIRE, EARTH, NO.2

main82286-02120iZRE211..TAIW202304-202405

main82286-02140iMZEA12,18202305

main82286-02260iMZEA11202008-202305

main82286-F4040iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

82666EHOLDER, CONNECTOR NO.6

main82666-42020iZRE210..D..PHL201904-202112

82816BCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-12D10iMZEA1#201904-202305

main82815-12L40iZRE210..N;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

main82815-47C20iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201904-202306

82816CCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-12L30iZRE211..TAIW201904-202304

main82815-12L70iZRE210,211..RHD202306

main82815-47C80iZWE211..TAIW201904-202304

main82815-47C90iZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

82816DCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-12L20iMZEA1#,ZRE210..GCC201904-202305

main82815-12L50iZWE211..X..PHL;ZWE211..GCC,TAIW,VN202304

main82815-12L80iZRE210,211..RHD..(D,E,G)201908-202306

main82815-47D00iZWE211..E;ZWE211..MA201908-202112

82816FCOVER, WIRING HARNESS PROTECTOR, NO.4

main82815-12L10iZRE210,211..CVT..(PHL,VN)201904-202306

main82815-12L90iZRE210,211..RHD202306

main82815-47D20iZWE211..PHL202304-202410

main82815-47D30iZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

82816GCOVER, WIRING HARNESS PROTECTOR, NO.5

main82815-12J00iZRE210,211..RHD..(D,E,G)201908-202306

main82815-12L00iZRE210,211..CVT..(PHL,VN)201904-202306

main82815-12L60iZWE211..TAIW201904-202304

main82815-47D40iZWE211..V..TH202306-202410

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-F4080iZWE211..V..(PHL,TH)202304-202410

82818DPROTECTOR, WIRING HARNESS, NO.5

main82817-12V50iMZEA1#202305

main82817-12Z20iZRE210..GCC201904-202305

main82817-47N40iZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202304

82818EPROTECTOR, WIRING HARNESS, NO.6

main82817-12Z00iZRE210,211..CVT..(PHL,VN)201904-202306

main82817-12Z60iZRE210,211..RHD202306

main82817-47N50iZWE211..PHL,VN201904-202306

main82817-47N60iZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

82818FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Y90iZRE211..TAIW201904-202304

main82817-12Z30iZWE211..PHL202304-202410

main82817-12Z70iZRE210,211..RHD..(D,E,G)201908-202306

main82817-47N70iZWE211..E;ZWE211..MA201908-202112

82818GPROTECTOR, WIRING HARNESS, NO.8

main82817-12W30iZRE211..TAIW202304-202405

main82817-F4480iZRE210..6F201908-202112

82818HPROTECTOR, WIRING HARNESS, NO.9

main82817-12Y80iMZEA1#,ZRE210..GCC201904-202305

main82817-12Z80iZRE210,211..RHD..(D,E,G)201908-202306

main82817-47N90iZWE211..GCC201904-202305

main82817-47P00iZWE211..V..TH202306-202410

82818JPROTECTOR, WIRING HARNESS, NO.10

main82817-12W50iZRE210,211..RHD..(D,E,G)201908-202306

main82817-12Y70iZRE211..TAIW201904-202304

main82817-12Z40iZWE211..X..PHL;ZWE211..GCC,TAIW,VN202304

main82817-47P10iZWE211..V..TH202306-202410

82818KPROTECTOR, WIRING HARNESS, NO.11

main82817-12Z50iZRE210..6F201904-202112

82818LPROTECTOR, WIRING HARNESS, NO.12

main82817-12Z10iZRE211..TAIW201904-202304

82821HCOVER, CONNECTOR

main82821-30650×2iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

8401

9011906951

main90119-06951

9011906A06

main90119-06A06

9011906A24

main90119-06A24

9017906274

main90179-06274

9167180820

main91671-80820

26 parts on this diagram · 23 diagrams in section
