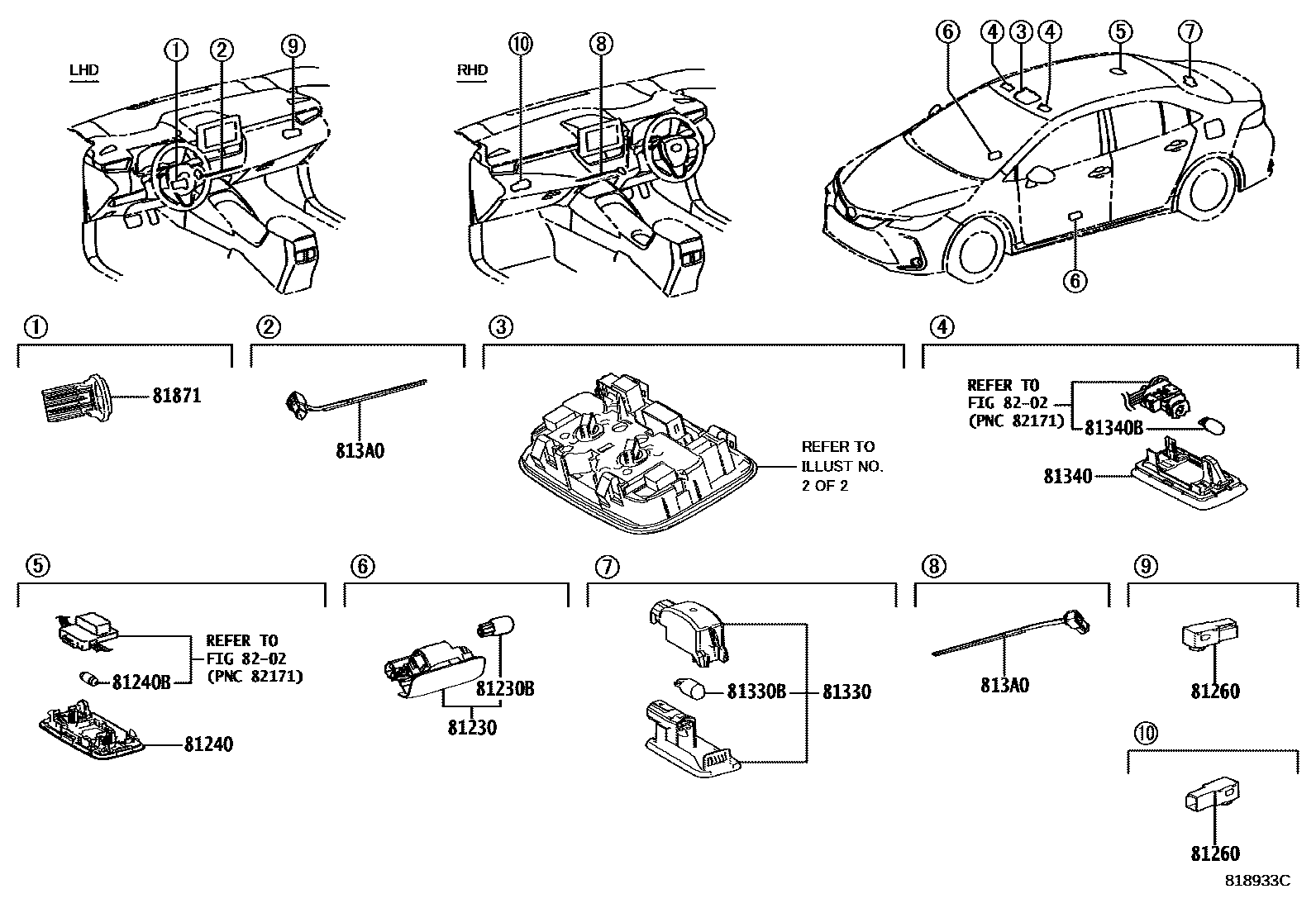

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30200×2iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-35020-A5iZRE210..D..PHL201908-202006

FROMAGE,TRIM0#,1#,2#

main81240-35020-C1iZRE211..TAIW202304-202405

BLACK,TRIM3#

main81240-42020-A2iZWE211..IDN;ZRE211..RHD..G202006-202306

FROMAGE,TRIM2#

main81240-42020-C0iZRE211,ZWE211..X202411

BLACK,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iZWE211..MA201908-202112

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iZRE211,ZWE211..TAIW201904-202304

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

12V 5W

81340LAMP ASSY, VANITY

main81340-0K030×2iZRE211..E..MA;ZWE211..IDN,SGP,VN;ZWE211..X..(PHL,TH);ZRE210,211..(G,V,X)..(GEN,IDN,MA,VN)202306

main81340-30110×2iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

UP GRADE PACKAGE&MOON ROOF-WITH

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZRE211..E..MA;ZWE211..IDN,SGP,VN;ZWE211..X..(PHL,TH);ZRE210,211..(G,V,X)..(GEN,IDN,MA,VN)202306

12V 8W

813A0LAMP ASSY, INSTRUMENT PANEL

main813A0-12010iZWE211..PHL202306-202410

main813A0-12020iZWE211..(G,V)..(IDN,SGP,TH)201908-202306

81871LENS, KEY ILLUMINATION

main81871-02010iZRE210..CVT..(D,G)..PHL201904-202306

8202

12 parts on this diagram · 2 diagrams in section
