EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-52090iMZEA12,ZRE211,ZWE211..X202405

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-02210iZRE211..IDN;ZRE211..E..(MA,VN);ZRE210..CVT..(GEN,PHL,SGP,TH)201908-202306

main75301-02210iZRE211..TH202201-202306

MIDDLE GRADE PACKAGE

main75301-02220iZWE211..GEN201908-202306

main75301-02230iMZEA1#,ZRE210,217..GCC201904-202305

main75301-02240iZWE211..GCC201904-202305

main90975-02124iZRE210..V201908-202101

TOYOTA SAFETY SENSE-WITH

main90975-02124iZRE210..V201908-202101

BRUNEI SPEC

main90975-02124iZRE210..V201908-202101

BRUNEI SPEC& UP GRADE PACKAGE

main90975-02124iZRE211..MA201908-202101

UP GRADE PACKAGE

main90975-02124iZRE211..TAIW202004-202405

X PACKAGE

main90975-02124iMZEA12,ZRE218..TAIW201904-202304

main90975-02136iZWE211..V..TH201904-202304

main90975-02136iZWE211..PHL201908-202101

TOYOTA SAFETY SENSE-WITH

main90975-T2028iZWE211..GEN202201-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main90975-T2028iZWE211..V..TH202102-202306

main90975-T2028iZWE211..PHL202102-202201

TOYOTA SAFETY SENSE-WITH

main90975-T2029iZRE210..V202201-202306

MYANMAR SPEC&X PACKAGE

main90975-T2029iZRE210..V202201-202306

LAOS SPEC

main90975-T2029iZRE210..V202201-202306

CAMBODIA SPEC

main90975-T2029iZRE210..V202201-202306

MYANMAR SPEC

main90975-T2029iZRE210..V202201-202409

X PACKAGE

main90975-T2029iZRE210..V202201-202306

LAOS SPEC&X PACKAGE

main90975-T2029iZRE210..V202201-202306

CAMBODIA SPEC&X PACKAGE

main90975-T2029iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main90975-T2029iZWE211..X;ZRE211..(G,X)..(MA,TH,VN);ZRE210,211..(V,X)..(GEN,PHL)202102-202306

BRUNEI SPEC

main90975-T2029iZWE211..X;ZRE211..(G,X)..(MA,TH,VN);ZRE210,211..(V,X)..(GEN,PHL)202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main90975-T2029iZWE211..X;ZRE211..(G,X)..(MA,TH,VN);ZRE210,211..(V,X)..(GEN,PHL)202102-202306

UP GRADE PACKAGE

main90975-T2029iZRE210..V202102-202201

TOYOTA SAFETY SENSE-WITH

main90975-T2029iZRE210,211..(E,G)..(MA,SGP)202102-202306

BRUNEI SPEC& UP GRADE PACKAGE

75374EMBLEM, SIDE PANEL

main75374-02090iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202411

RH

main75374-02100iZWE211..V..(PHL,TH)201908-202411

LH

main75374-02110iZWE211..GCC201904-202411

RH

main75374-02110iZWE211..GCC202305-202412

ENGINE MARK-HYBRID,RH

main75374-02110iZWE211..GCC202305-202410

CARBON NEUTRAL BADGE-WITHOUT,RH

main75374-02110iZWE211..GCC202411-202412

ENGINE MARK-HYBRID&CARBON NEUTRAL BADGE-WITHOUT,RH

main75374-02120iZWE211..GCC202411-202412

ENGINE MARK-HYBRID&CARBON NEUTRAL BADGE-WITHOUT,LH

main75374-02120iZWE211..TAIW201904-202411

LH

main75374-02120iZWE211..GCC202411-202412

ENGINE MARK-HYBRID,LH

main75440-BZ060iZWE211..E,X;ZWE211..V..TAIW202405

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02510iZWE211..E201908-202306

COROLLA

main75442-02510iZRE210..TH201908-202201

COROLLA, LOW GRADE PACKAGE

main75442-02520iZRE210,ZWE211..(E,N)..GEN202306

COROLLA,NEPAL, BANGLADESH, SRI LANKA SPEC

main75442-02520iZWE211..(G,V)..(IDN,PHL,SGP,TH,VN);ZRE210,211..CVT..(D,E,G,V)..(IDN,MA,PHL,SGP,TH,VN)201908-202306

COROLLA,NEPAL OR BANGLADESH SPEC

main75442-02520iZWE211..E201908-202410

COROLLA

main75442-02540iMZEA1#,ZRE210,ZWE211..GCC201904-202305

COROLLA

main75442-02550iZRE218,ZWE211..TAIW201904-202405

COROLLA

main75442-02660iMZEA12..TAIW202405

COROLLA

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75442-02530iZRE210,ZWE211..GEN201908-202410

ALTIS

main75442-02530iZRE210,ZWE211..GEN201908-202306

ALTIS,NEPAL OR BANGLADESH SPEC

main75442-02530iZRE210,ZWE211..(E,N)..GEN202306

ALTIS,NEPAL, BANGLADESH, SRI LANKA SPEC

main75442-02560iZRE211,ZWE211..TAIW201904-202405

ALTIS

main75442-02670iMZEA12..TAIW202405

ALTIS

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75440-02030iZWE211..G;ZWE211..(D,N,V)..(GCC,GEN,IDN,SGP,VN)202405

HEV

main75441-02480iZRE211..MA;ZRE211..G..VN202004-202410

GR SPORT,X PACKAGE

main75441-02480iZRE211..TH;ZWE211..V..TH202201-202410

GR SPORT

main75441-02480iZRE211..TH;ZWE211..V..TH202201-202306

GR SPORT, MIDDLE GRADE PACKAGE

main75443-12B90iZWE211..GCC202411-202412

HYBRID,ENGINE MARK-HYBRID&CARBON NEUTRAL BADGE-WITHOUT

main75443-12B90iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201904-202411

HYBRID

main75443-12B90iZWE211..GCC202305-202412

HYBRID,ENGINE MARK-HYBRID

main75443-12B90iZWE211..GCC202305-202410

HYBRID,CARBON NEUTRAL BADGE-WITHOUT

main75444-02E10iZRE210..D..PHL201908-202306

E

main75444-02E20iZRE211..E..MA201908-202306

G,BRUNEI SPEC

main75444-02E20iZRE210..E..PHL201908-202306

G

main75444-02E20iZRE211..E..VN;ZRE210,211..G..(IDN,PHL)201908-202306

G, UP GRADE PACKAGE

main75444-02E20iZRE211..E..VN;ZRE210,211..G..(IDN,PHL)201908-202306

G,BRUNEI SPEC& UP GRADE PACKAGE

main75444-02E20iZRE211..E..VN202306

G,UP GRADE PACKAGE

main75444-02E30iZRE211..IDN201908-202306

V

main75444-02E30iZRE210..V;ZRE211..G..VN201908-202306

V, UP GRADE PACKAGE

main75444-02E60iZRE210..E..GEN201904-202306

GLI

main75444-02E70iMZEA17,18,ZRE210,217..D..(GCC,GEN)201904-202306

XLI

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-02380iMZEA11,17202008-202305

1.5

main75447-02460iZRE210..GEN201908-202306

1.6

main75447-02470iZRE210..GCC201904-202305

1.6

main75447-02480iMZEA12201904-202305

2.0

main75447-02490iZRE211..E..MA201908-202306

1.8,BRUNEI SPEC& UP GRADE PACKAGE

main75447-02490iZRE211..E..MA201908-202306

1.8

main75447-02490iZRE211..E..MA201908-202306

1.8, UP GRADE PACKAGE

main75447-02490iZRE211..E..MA201908-202306

1.8,BRUNEI SPEC

main75447-02490iZRE211..IDN,VN202306

1.8,UP GRADE PACKAGE

75741EEMBLEM, SYMBOL

main75403-02090iZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN)201908-202306

main75403-02100iZWE211..TAIW201904-201910

X PACKAGE

main75403-02100iZWE211..GCC,TAIW201904-202305

main90975-02138iMZEA12,ZRE211,ZWE211..X202304-202410

main90975-02138iZRE211..TH;ZWE211..V..TH202004-202409

X PACKAGE

main90975-T2007iZRE211..D;ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,SGP,TH,VN)201908-202306

main90975-T2007iZRE211..TH202201-202306

MIDDLE GRADE PACKAGE

main90975-T2015iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218201904-202305

main90975-T2015iZRE211..G..TAIW201904-201910

X PACKAGE

9016750063

main90167-50063

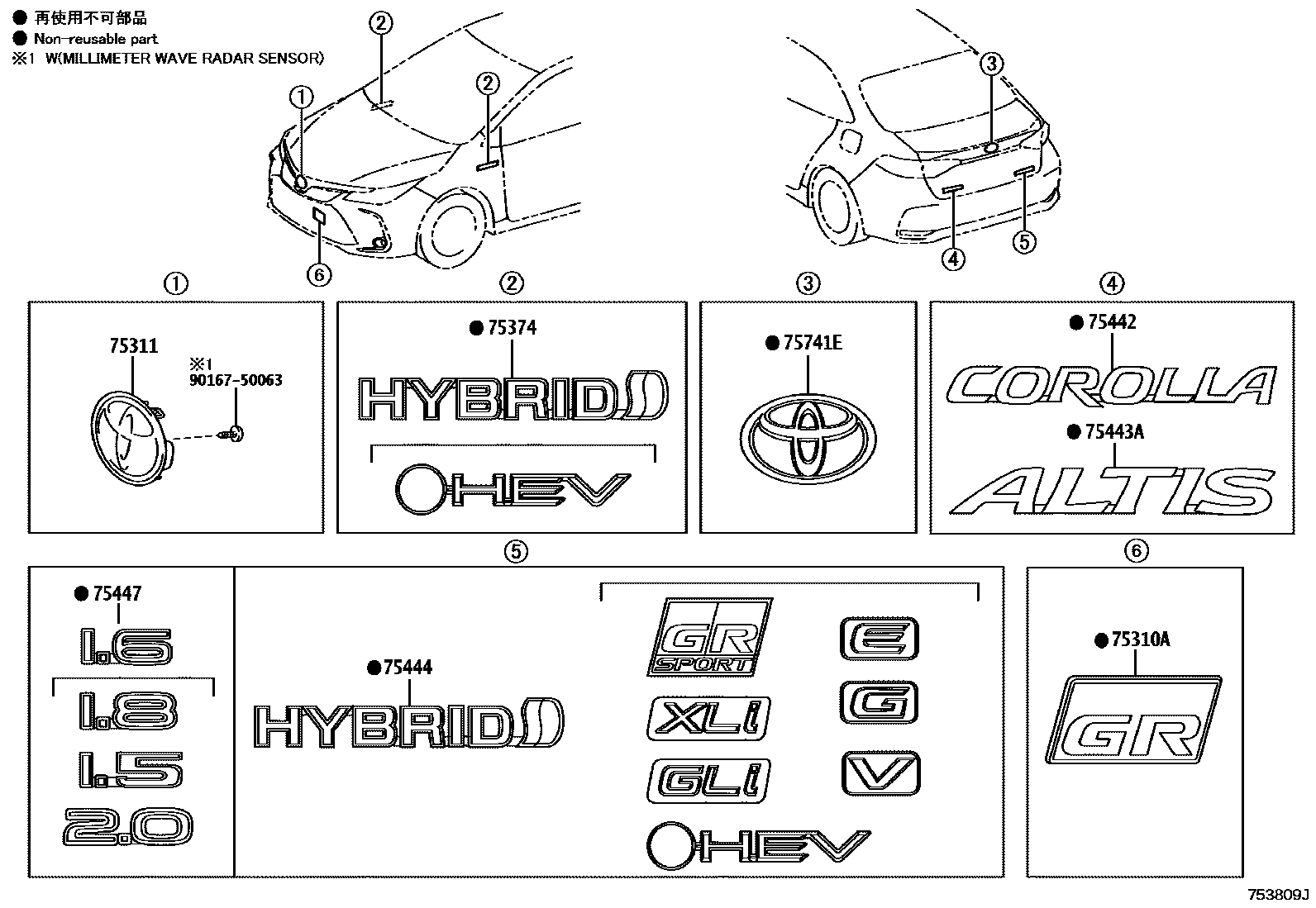

9 parts on this diagram · 1 diagram in section
