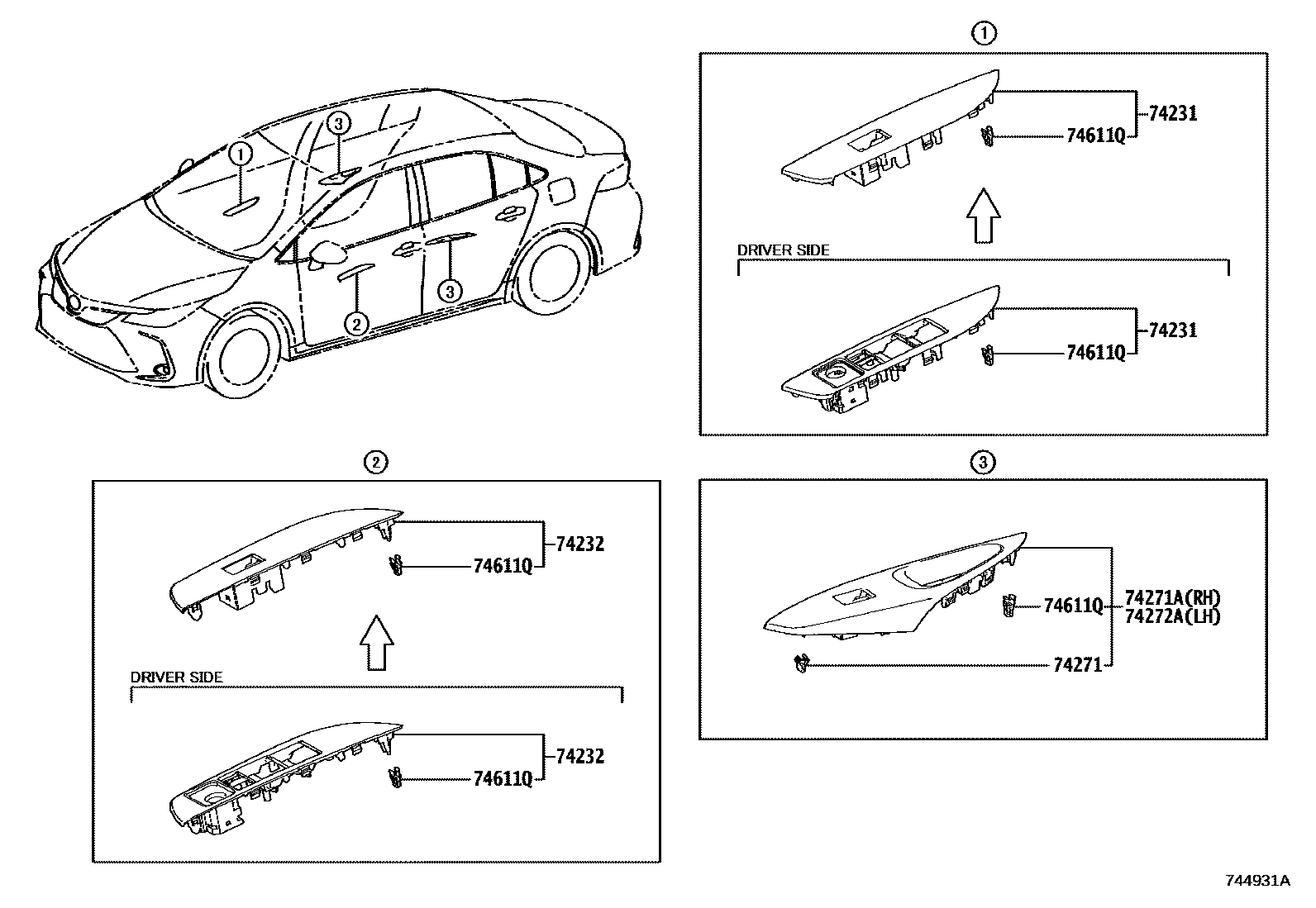

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02G30iZRE211..IDN;ZRE210..(D,G)..(GEN,TH);ZWE211..(G,V)..(IDN,SGP,TH)201908-202410

main74231-02G40iZRE211..E..MA;ZRE210,ZWE211..(E,G,N)..(GEN,SGP)201908-202306

UP GRADE PACKAGE

main74231-02G40iZRE211..RHD;ZRE210,ZWE211..(E,G,N)..(GEN,SGP)202306

main74231-02G40iZWE211..G201908-202201

LOW GRADE PACKAGE

main74231-02G50iZRE210..V;ZWE211..X..PHL201908-202411

main74231-02G60iZRE210..E..PHL201908-202410

main74231-02J00iZRE211,ZWE211..TAIW201904-202305

main74231-02K30iZRE211..TAIW202304-202405

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02G90iZWE211..V..TH201908-202410

main74232-02J00iZWE211..G201908-202201

LOW GRADE PACKAGE

main74232-02J00iZRE211..RHD;ZRE210,ZWE211..(E,G,N)..(GEN,SGP)202306

main74232-02J00iZRE211..E..MA;ZRE210,ZWE211..(E,G,N)..(GEN,SGP)201908-202306

UP GRADE PACKAGE

main74232-02J10iZRE210..CVT..D..PHL201908-202411

main74232-02J20iZRE210..E..PHL201908-202410

main74232-02J30iZRE210,ZWE211..V..PHL201908-202410

main74232-02J50iMZEA1#,ZRE210,217,ZWE211..GCC202305

SAUDI ARABIA SPEC&UP GRADE PACKAGE

main74232-02J50iZRE211..D201904-202305

main74232-02K70iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

main74232-02L20iMZEA12,ZWE211..(V,X)..TAIW202304-202405

74271RETAINER, DOOR ARMREST

main55416-60030iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)¥80201904-202410

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02850iZRE211..IDN;ZRE210..(D,G)..(GEN,TH);ZRE210..CVT..(D,V)..PHL;ZWE211..(G,V)..(IDN,PHL,SGP,TH)201908-202411

main74271-02860iZRE211..G..PHL201908-202410

main74271-02860iZRE211..TH201908-202201

LOW GRADE PACKAGE

main74271-02860iZWE211..GEN,VN;ZRE210,211..CVT..(E,G)..(GEN,MA,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main74271-02870iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main74271-02A80iZRE211..TAIW202304-202405

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02840iZWE211..E;ZWE211..MA;ZRE210..D..PHL201908-202411

main74272-02850iZWE211..G201908-202201

LOW GRADE PACKAGE

main74272-02850iZWE211..GEN,VN;ZRE210,211..CVT..(E,G)..(GEN,MA,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main74272-02850iZRE211..D201908-202410

main74272-02860iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main74272-02A70iMZEA12,ZWE211..(V,X)..TAIW202304-202405

74611QCLIP

main90467-10203iZRE211,ZWE211..TAIW¥60201904-202405

main90467-10203iZRE210,211,ZWE211..GEN,IDN,MA,PHL,SGP,TH,VN¥60202206-202410

(J)

main90467-T0033iZRE210,211,ZWE211..GEN,IDN,MA,PHL,SGP,TH,VN202206-202410

(L)

6 parts on this diagram · 2 diagrams in section
