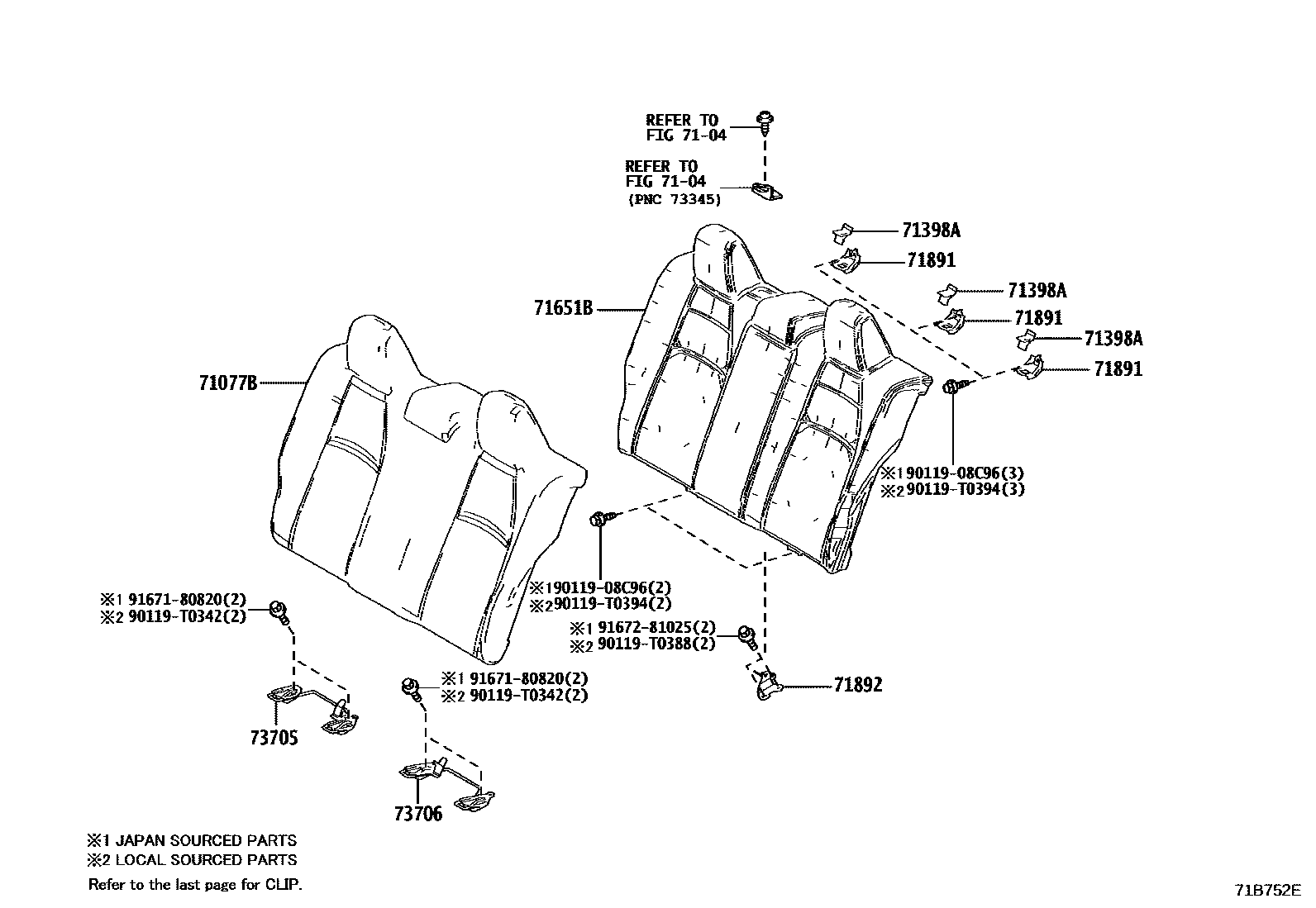

REAR SEAT & SEAT TRACK

0001 1SEAT BACK(FIX TYPE) 0002 1SEAT BACK(FOLDING TYPE) 0003 1SEAT CUSHION 0004 1SEAT CUSHION 0005 1SEAT COVER EDGE WIRE & CLIP

7104

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0ZE60-A0supersedes 71077-0ZE80-A0iZWE211..E201908-202112

ORCHID BROWN,TRIM0#

main71077-0ZE60-B2iZWE211..E;ZRE210..D..PHL201908-202112

GRAY,TRIM1#

main71077-0ZE70-A0iZRE211..D202306-202411

FROMAGE,TRIM0#

main71077-0ZE70-C0iZRE211..D202306-202411

BLACK / GRAY DOT,TRIM2#

main71077-0ZE80-C3iZRE210..TH201908-202306

BLACK,TRIM2#

main71077-0ZF30-B3iMZEA12,ZRE210,ZWE211..D..GCC201904-202002

GRAY,TRIM1#

main71077-0ZF30-E1iMZEA12,ZRE210,ZWE211..D..GCC201904-202002

ORCHID BROWN,TRIM0#

main71077-0ZF31-B3iMZEA1#,ZRE210,ZWE211..D..GCC202002-202305

GRAY,TRIM1#

main71077-0ZF31-E1iMZEA17,18,ZRE217,ZWE211..D202305

ORCHID BROWN,TRIM0#

71398AHOLDER, REAR SEATBACK

main71398-33010×3iMZEA1#,ZRE210,ZWE211..D..GCC202107-202305

main71398-33010-C1×3iZRE210..D..PHL;MZEA1#,ZWE211..D;ZRE210..(D,G)..(GCC,TH)201904-202107

BLACK

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-02480iZWE211..E;ZRE210..D..PHL201908-202112

main71507-02500iMZEA17,18,ZRE217,ZWE211..D202305

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-02060×3iZRE211..D202306-202411

main71891-02080×3iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

71892BRACKET, REAR SEATBACK SET, NO.2

main71891-02070iZRE210..TH;ZRE210..CVT..D..PHL201908-202306

main71891-02090iZWE211..D202305

main71891-02140iMZEA17,18,ZRE217202305

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-02350iZRE211..X..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main73705-02360iZRE211..TAIW202304-202405

main73705-02510iZRE211..D202306-202411

main73705-02530iMZEA17,18,ZRE217,ZWE211..D202305

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73705-02480iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main73705-02490iZRE211,ZWE211..TAIW201904-202304

main73705-02520iZWE211..E;ZRE210..D..PHL201908-202112

main73705-02540iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

9011908C96

main90119-08C96

90119T0342

main90119-T0342

90119T0388

main90119-T0388

90119T0394

main90119-T0394

9167180820

main91671-80820

9167281025

main91672-81025

14 parts on this diagram · 5 diagrams in section
