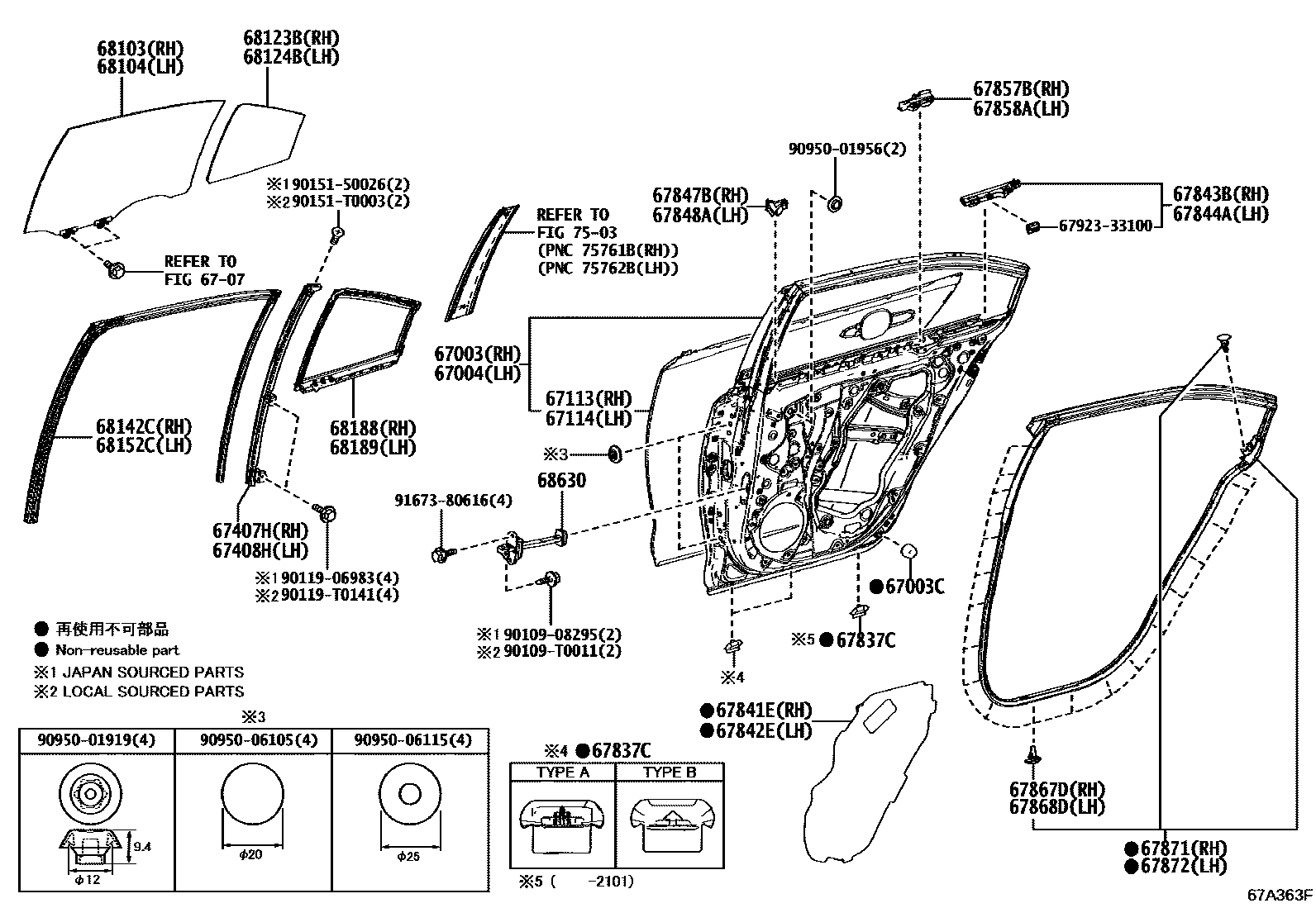

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02570iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67003-02580iZRE211..TAIW201904-202405

67003CCUSHION, REAR DOOR PANEL

main90541-09124iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02580iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67004-02590iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-02320iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67113-02330iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67114PANEL, REAR DOOR, OUTER LH

main67114-02320iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67114-02330iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-02230iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67407-02240iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-02230iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67408-02240iZRE211,ZWE211..TAIW201904-202405

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201908-202410

TYPE A:REFER ILLUST.

main67837-48050iZRE211,ZWE211..TAIW201908-202410

TYPE B:REFER ILLUST.

main67837-48050iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201904-202101

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02460iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67841-02470iZRE211..TAIW201904-202405

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02430iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67842-02440iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67843-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-02040iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67844-02050iZRE211..TAIW201904-202405

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02120iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67847-02130iZRE211..TAIW201904-202405

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-02060iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67848-02070iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-02130iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67857-02140iZRE211..TAIW201904-202405

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-02130iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67858-02140iZRE211..TAIW201904-202405

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZRE211,ZWE211..TAIW201904-202410

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iZRE211,ZWE211..TAIW201904-202410

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02350iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67871-02360iZRE211..TAIW201904-202405

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02350iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67872-02360iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02610iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main68103-02620iZRE211..TAIW201904-202405

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02610iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main68104-02620iMZEA1#,ZRE210,ZWE211..GCC201904-202405

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02530iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main68123-02540iZRE211..TAIW201904-202405

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02530iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main68124-02540iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

68142CRUN, REAR DOOR GLASS, RH

main68142-02380iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202009

sub68142-02381

main68142-02381iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202010-202410

main68142-02390iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202002

sub68142-02391

main68142-02391iZRE211,ZWE211..TAIW202003-202405

68152CRUN, REAR DOOR GLASS, LH

main68152-02380iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202009

sub68152-02381

main68152-02381iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202010-202410

main68152-02390iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202002

sub68152-02391

main68152-02391iZRE211..TAIW202003-202405

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02270iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main68188-02280iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02270iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main68189-02280iZRE211,ZWE211..TAIW201904-202405

68630CHECK ASSY, REAR DOOR

main68630-02360iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main68630-02370iZRE211..TAIW201904-202405

7503

6792333100CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33100

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9015150026

main90151-50026

90151T0003

main90151-T0003

9095001919

main90950-01919

9095001956

main90950-01956

9095006105

main90950-06105

9095006115

main90950-06115

9167380616

main91673-80616

43 parts on this diagram · 2 diagrams in section
