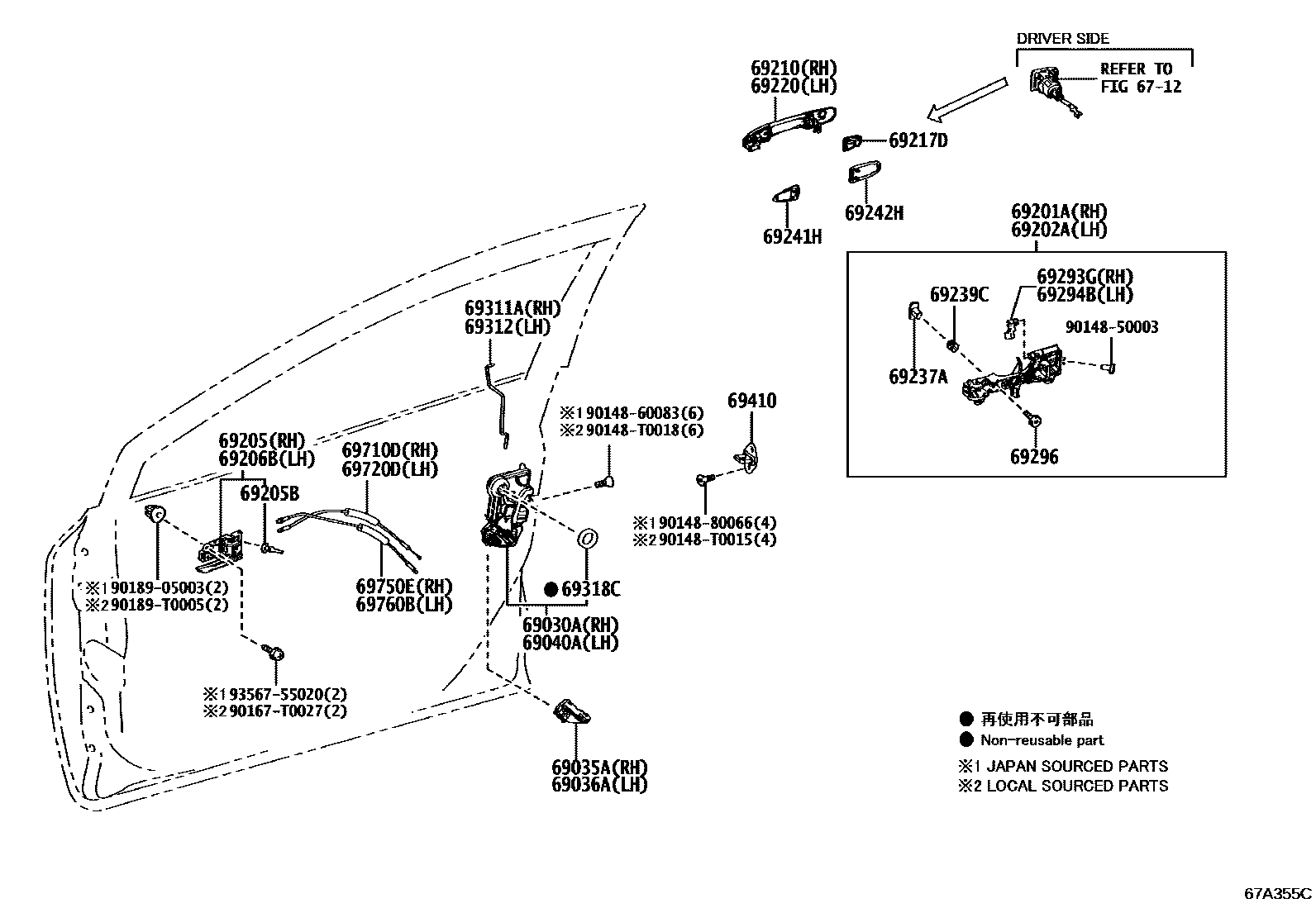

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02470iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)201908-202306

main69030-02480iZRE210..6F201908-202112

main69030-02580iMZEA1#,ZRE210,ZWE211..GCC201904-202305

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69035-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69036-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02450iZRE210,211,ZWE211..CVT..(PHL,VN)201908-202306

main69040-02470iZRE210,211..RHD;ZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main69040-02560iZRE211,ZWE211..TAIW201904-202304

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02350iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69201-02360iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02290iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69202-02300iMZEA1#,ZRE210,ZWE211..GCC201904-202305

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02390-A0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

FROMAGE,TRIM0#

main69205-02390-B0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

LT.GRAY,TRIM1#

main69205-02390-C0iZRE218,ZWE211..(D,E)..TAIW202304

BLACK,TRIM2#,3#

main69205-02430-A0iZRE210..G..(PHL,SGP)201908-202306

FROMAGE,TRIM0#

main69205-02430-B0iZWE211..E;ZRE210..D..PHL201908-202112

LT.GRAY,TRIM1#

main69205-02430-C0iZRE210,211..G..(IDN,PHL,SGP)201908-202306

BLACK,TRIM2#

main69205-02450-A0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

FROMAGE,TRIM0#

main69205-02450-B0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

LT.GRAY,TRIM1#

main69205-02460-A0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

FROMAGE,TRIM0#

main69205-02460-B0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

LT.GRAY,TRIM1#

main69205-02460-C0iZRE211,ZWE211..(G,V)..TAIW201904-202004

BLACK,TRIM2#,3#

main69205-02510-A0iZWE211..(N,V)..(GEN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,MA,VN)202306

UP GRADE PACKAGE,FROMAGE,TRIM0#

main69205-02510-C0iZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,TH,VN)202306

UP GRADE PACKAGE,BLACK,TRIM2#

main69205-02530-C0iZRE211,ZWE211..X202411

BLACK,TRIM2#

main69205-02540-C0iMZEA12..TAIW202405

BLACK,TRIM2#

main69205-06180-A0iZWE211..MA201908-202112

FROMAGE,TRIM0#

main69205-06180-B1iZRE210..SGP201908-202306

LT.GRAY,TRIM1#

main69205-06180-C0iZRE210,211..IDN,SGP201908-202306

UP GRADE PACKAGE,BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02410-A0iZRE210,ZWE211..E..(PHL,TH)201908-202112

FROMAGE,TRIM0#

main69206-02410-B0iZWE211..E;ZRE210..D..PHL201908-202112

LT.GRAY,TRIM1#

main69206-02410-C0iZRE211..D;ZRE210..SGP202306

BLACK,TRIM2#

main69206-02430-A0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

FROMAGE,TRIM0#

main69206-02430-B0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

LT.GRAY,TRIM1#

main69206-02440-A0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

FROMAGE,TRIM0#

main69206-02440-B0iZRE211,ZWE211..TAIW201904-202004

LT.GRAY,TRIM1#

main69206-02440-C0iZRE211,ZWE211..(G,V)..TAIW201904-202004

BLACK,TRIM2#,3#

main69206-02490-A0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

FROMAGE,TRIM0#

main69206-02490-B0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

LT.GRAY,TRIM1#

main69206-02490-C0iZRE218,ZWE211..(D,E)..TAIW202304

BLACK,TRIM2#,3#

main69206-02500-A0iZWE211..(N,V)..(GEN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,MA,VN)202306

UP GRADE PACKAGE,FROMAGE,TRIM0#

main69206-02500-C0iZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,TH,VN)202306

UP GRADE PACKAGE,BLACK,TRIM2#

main69206-02520-C0iZRE211,ZWE211..X202411

BLACK,TRIM2#

main69206-02530-C0iMZEA12..TAIW202405

BLACK,TRIM2#

main69206-06180-A0iZWE211..MA201908-202112

FROMAGE,TRIM0#

main69206-06180-B1iZRE210..SGP201908-202306

LT.GRAY,TRIM1#

main69206-06180-C0iZRE210,211..IDN,SGP201908-202306

UP GRADE PACKAGE,BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33101iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(E,G)201908-202306

PLATED

main69210-33141iZRE211,ZWE211..(G,V)..PHL202306-202410

PLATED

main69210-47041-A2iZRE211,ZWE211..RHD..X202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47041-C0iZRE211,ZWE211..RHD..X202411

ATTITUDE BLACK MC.,218

main69210-47041-D2iZRE211,ZWE211..RHD..X202411

RED M.M.,2QL ,3R3

main69210-47051-A2iZRE211,ZWE211..LHD..X202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47051-B3iZRE211,ZWE211..X..PHL202411

METAL STREAM ME,1K0

main69210-47051-C0iZRE211,ZWE211..LHD..X202411

ATTITUDE BLACK MC.,218

main69210-47051-D2iZRE211,ZWE211..LHD..X202411

RED M.M.,2QL ,3R3

main69211-02420supersedes 69211-02938iMZEA11,12,ZRE210,ZWE211..N..GCC202305

PLATED

main69211-02938iMZEA12,ZRE218..TAIW;MZEA17,18,ZRE217,ZWE211..(D,E,V)..(GCC,TAIW)202304

PAINT REQ.

main69211-02939iZWE211..E201908-202112

PAINT REQ.

main69211-02940iZRE210..CVT..(D,G)..PHL201908-202306

PAINT REQ.

main69211-06170iZRE211..VN;ZRE210,ZWE211..V..(PHL,VN)201908-202306

PLATED

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02630iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main69217-06210iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-02280-A0iZRE211,ZWE211..(G,V)..TAIW201904-202304

SUPER WHITE 2,040

main69210-02280-B0iMZEA12,ZRE218,ZWE211..(E,V,X)..TAIW202304

SILVER ME.,1F7

main69210-02280-B1iZRE211,ZWE211..(G,V)..TAIW201904-202304

GRAY ME.,1G3

main69210-02280-B2iZRE211,ZWE211..(G,V)..TAIW201904-202304

CELESTITE GRAY ME.,1K3

main69210-02280-C0iZRE211..TAIW202304-202405

BLACK MC.,209

main69210-02280-D1iZRE211,ZWE211..(G,V)..TAIW201904-202304

RED M.M.,3R3

main69210-33100iMZEA12,ZRE210,ZWE211..N201904-201907

PLATED

main69210-33101supersedes 69211-02937iMZEA11,12,ZRE210,211,ZWE211..LHD..(E,G,N,V)..(GCC,GEN,VN)202305

PLATED

main69210-33141iZWE211..V..TH202306-202410

PLATED

main69210-47041-A2iZRE211,ZWE211..LHD..X202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47041-B3iZRE211,ZWE211..X..PHL202411

METAL STREAM ME,1K0

main69210-47041-C0iZRE211,ZWE211..LHD..X202411

ATTITUDE BLACK MC.,218

main69210-47041-D2iZRE211,ZWE211..LHD..X202411

RED M.M.,2QL ,3R3

main69210-47051-A2iZRE211,ZWE211..X..(MA,SGP,TH)202411

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47051-C0iZRE211,ZWE211..X..(MA,SGP,TH)202411

ATTITUDE BLACK MC.,218

main69210-47051-D2iZRE211,ZWE211..X..(MA,SGP,TH)202411

RED M.M.,2QL ,3R3

main69211-02937iMZEA17,18,ZRE217,218,ZWE211..D202304

PAINT REQ.

main69211-02939iZRE210..6F201908-202112

PAINT REQ.

main69211-02940iZWE211..E201908-202112

PAINT REQ.

main69211-06170iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(E,G)201908-202306

PLATED

69237ANUT, FRONT DOOR HANDLE

main69237-0K040×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main69237-62010×2iZRE211..TAIW202304-202405

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-02080×2iZRE211..TAIW202304-202405

main69239-06060×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02300×2iZRE211,ZWE211..TAIW201904-202304

main69241-06140×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02290×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69242-06140×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-02060iZRE211..TAIW202304-202405

main69293-06030iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-02080iZRE211..TAIW202304-202405

main69293-06040iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

69296SCREW, DOOR INSIDE HANDLE

main69296-0M010×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

main90148-50006×2iZRE211..TAIW202304-202405

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02360iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main69311-02370iZRE211..TAIW202304-202405

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02360iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69312-02370iMZEA1#,ZRE210,ZWE211..GCC201904-202305

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02040×2iZRE211,ZWE211..TAIW201904-202304

(L)

main69410-0K070×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69410-20110×2iZRE211,ZWE211..TAIW201904-202304

(J)

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-02370iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69710-02380iZRE211..TAIW202304-202405

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-02370iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69710-02380iZRE211..TAIW202304-202405

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-02400iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69750-02410iZRE211..TAIW202304-202405

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-02400iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69750-02410iMZEA1#,ZRE210,ZWE211..GCC201904-202305

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

90148T0018

main90148-T0018

90167T0027

main90167-T0027

9018905003

main90189-05003

90189T0005

main90189-T0005

9356755020

main93567-55020

37 parts on this diagram · 1 diagram in section
