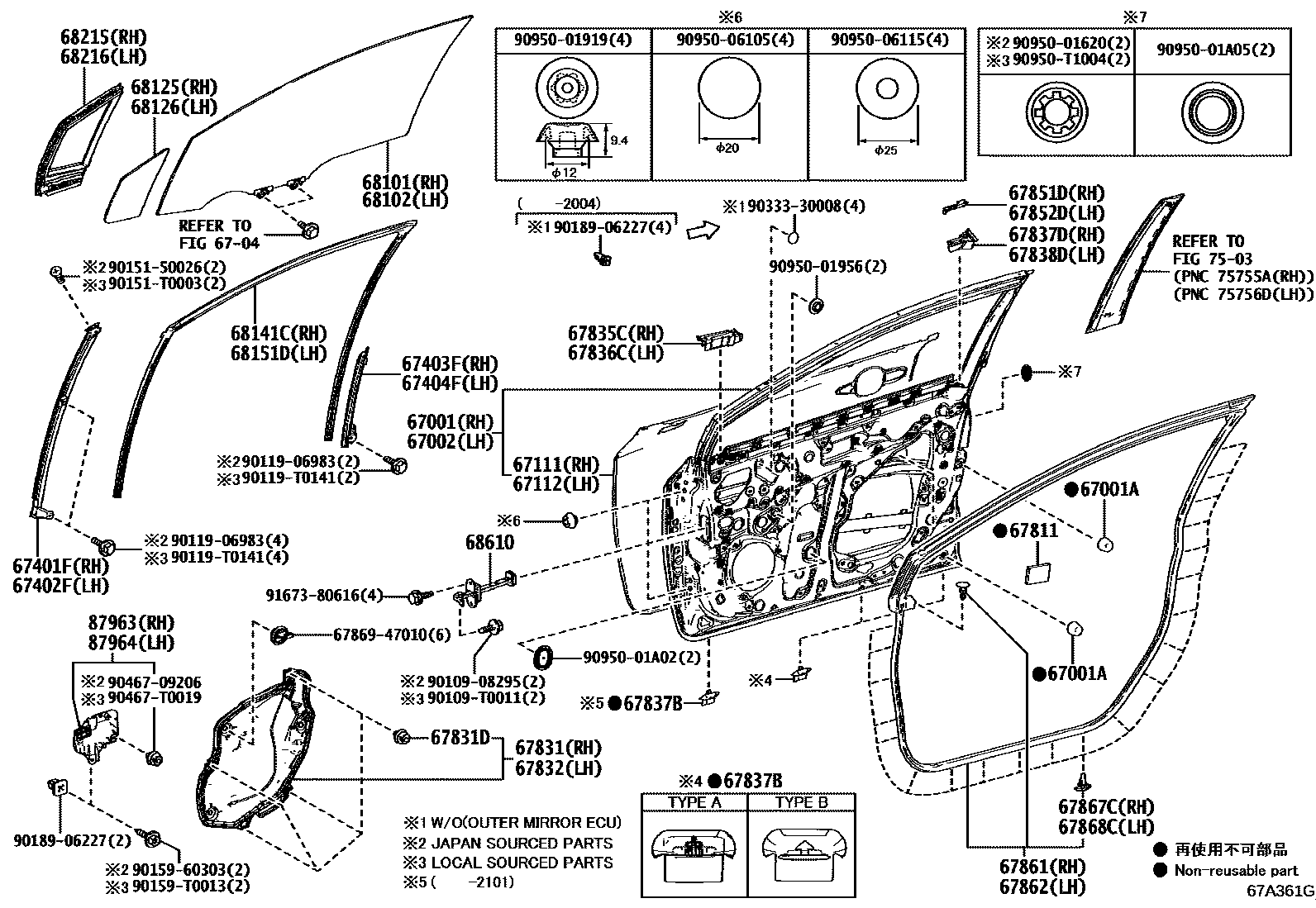

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02570iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67001-02580iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iZRE211..G..PHL;ZWE211..V..(PHL,TH)201904-202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02560iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67002-02570iMZEA1#,ZRE210,ZWE211..GCC201904-202405

6704

67111PANEL, FRONT DOOR, OUTER RH

main67111-02340iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67111-02350iZRE211,ZWE211..TAIW201904-202405

67112PANEL, FRONT DOOR, OUTER LH

main67112-02340iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67112-02350iZRE211,ZWE211..TAIW201904-202405

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-02060iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67401-02070iZRE211,ZWE211..TAIW201904-202405

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-02060iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67402-02070iZRE211,ZWE211..TAIW201904-202405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02270iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67403-02280iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02270iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67404-02280iZRE211,ZWE211..TAIW201904-202405

67811PAD, FRONT DOOR SILENCER

main67811-0D010iZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW,VN201904-202210

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02470iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67831-02480iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90467-T0019iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02470iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67832-02480iZRE211..TAIW201904-202405

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67835-02050iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02100iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67836-02110iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K090iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202101-202410

TYPE A:REFER ILLUST.

main67837-0K090iMZEA1#,ZRE21#,ZWE211201904-202101

main67837-48050iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202101-202410

TYPE B:REFER ILLUST.

67837DSEAL, FRONT DOOR VENT, RH

main67837-02140iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main67837-02160iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67838DSEAL, FRONT DOOR VENT, LH

main67838-02110iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67838-02120iMZEA1#,ZRE210,ZWE211..GCC201904-202405

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02040iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67851-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main67852-02050iZRE211,ZWE211..TAIW201904-202405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02360iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main67861-02370iZRE211..TAIW201904-202405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02360iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main67862-02370iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201904-202410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02600iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main68101-02610iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02600iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main68102-02610iZRE211,ZWE211..TAIW201904-202405

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main68125-02050iZRE211,ZWE211..TAIW201904-202405

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main68126-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

68141CRUN, FRONT DOOR GLASS, RH

main68141-02410iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202009

sub68141-02411

main68141-02411iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202010-202410

main68141-02420iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202002

sub68141-02421

main68141-02421iZRE211,ZWE211..TAIW202003-202405

68151DRUN, FRONT DOOR GLASS, LH

main68151-02400iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202009

sub68151-02401

main68151-02401iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202010-202410

main68151-02410iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202002

sub68151-02411

main68151-02411iZRE211,ZWE211..TAIW202003-202405

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main68215-02050iZRE211,ZWE211..TAIW201904-202405

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main68216-02050iMZEA1#,ZRE210,ZWE211..GCC201904-202405

68610CHECK ASSY, FRONT DOOR

main68610-02360iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main68610-02370iMZEA1#,ZRE210,ZWE211..GCC201904-202405

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02030iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main87963-02070iMZEA1#,ZRE210,ZWE211..GCC201904-202405

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02030iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main87964-02070iZRE211,ZWE211..TAIW201904-202405

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9015150026

main90151-50026

90151T0003

main90151-T0003

9015960303

main90159-60303

90159T0013

main90159-T0013

9018906227

main90189-06227

9033330008

main90333-30008

9046709206

main90467-09206

90467T0019

main90467-T0019

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095006105

main90950-06105

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

59 parts on this diagram · 2 diagrams in section
