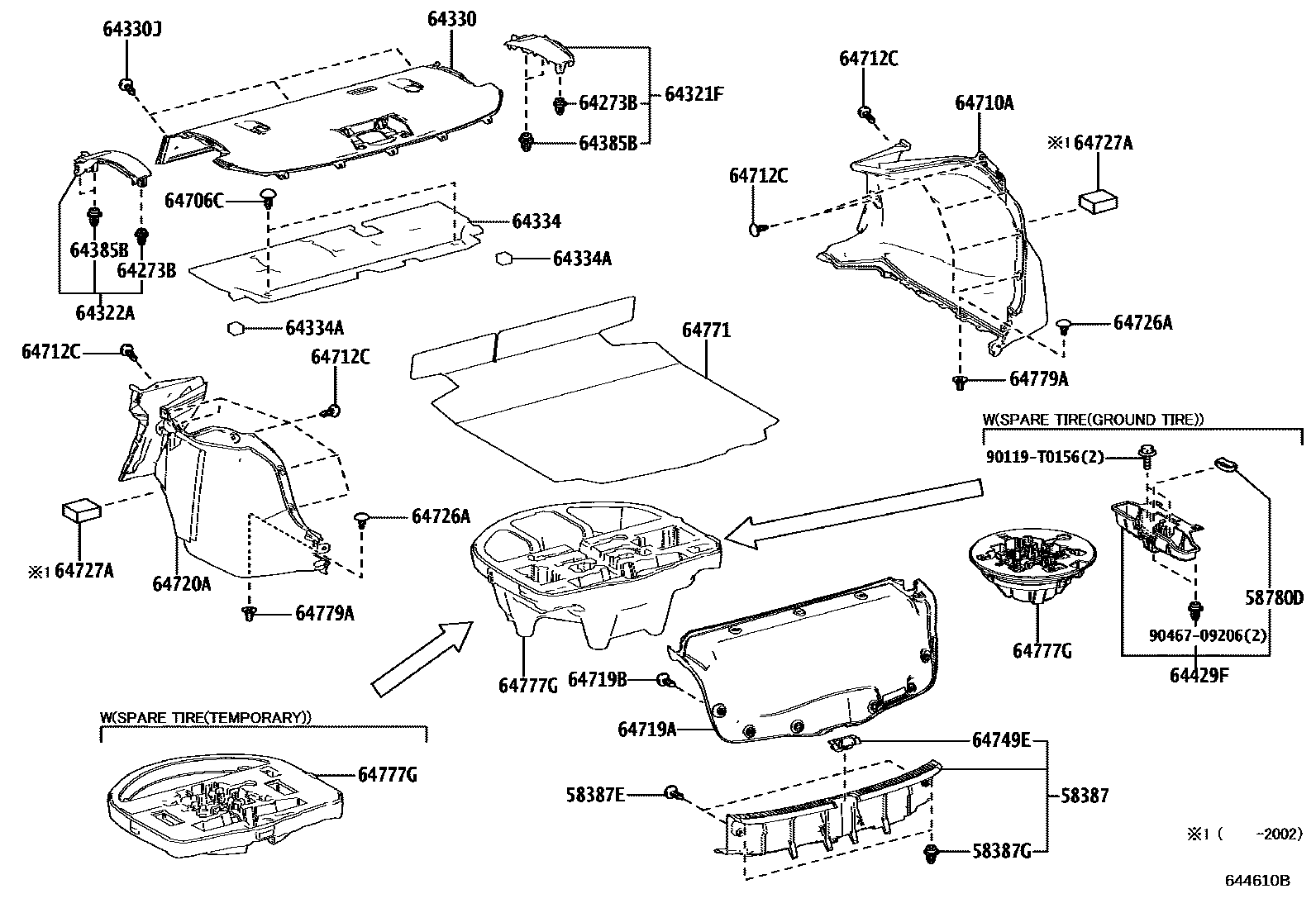

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1REAR SEAT BACK-FOLDING TYPE 0002 1REAR SEAT BACK-FOLDING TYPE 0003 1REAR SEAT BACK-FIXED TYPE 0004 1REAR SEAT BACK-FIXED TYPE

58387PLATE, REAR FLOOR FINISH

main58387-02360-C0iZRE210..RHD;ZWE211..SGP201908-202306

BLACK,TRIM0#,1#,2#

main58387-02360-C0iZRE210..D..PHL201908-202410

BLACK,TRIM0#,2#

main58387-02360-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main58387-02360-C0iZRE210..RHD;ZWE211..SGP201908-202410

BLACK,TRIM2#

main58387-02360-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main58387-02370-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main58387-02370-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main58387-02370-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

main58387-02370-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main58387-02370-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main58387-02370-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main58387-02370-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM1#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM0#,1#,2#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..TAIW202304-202405

BLACK,TRIM3#

sub90467-08186¥120

main90467-08186-C3iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

sub90467-08186¥120

main90467-08186-C3iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

sub90467-08186¥120

main90467-T0045-C0iZWE211..PHL202101-202410

BLACK,TRIM0#,2#

main90467-T0045-C0iZRE210..D..PHL202101-202306

BLACK,TRIM1#

main90467-T0045-C0iZRE210..D..PHL202101-202112

BLACK,TRIM0#,1#

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202410

BLACK,TRIM2#

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202306

BLACK,TRIM0#,1#,2#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iZRE211..TAIW¥90201904-202410

58780DBAND ASSY, TOOL BOX

main58781-02010iMZEA1#,ZRE210,217,ZWE211..GCC202307-202406

(L)

main58781-02030iMZEA1#,ZRE210,217,ZWE211..GCC202407

(L)

main58781-52010iMZEA1#,ZRE210,217,ZWE211..GCC¥370202307

(J)

main58781-52010iMZEA1#,ZRE210,217,ZWE211..GCC¥370202305-202307

64273BCLIP

main90467-09240iZRE211,ZWE211..TAIW¥80201904-202410

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-02070-C0iZRE211..X;ZWE211..IDN;ZRE210,211..IDN,TH;ZWE211..(G,X)..(PHL,SGP,TH)201908-202410

BLACK,TRIM2#

main64301-02070-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main64301-02070-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main64301-02070-C0iZRE210..D..PHL201908-202410

BLACK,TRIM0#,2#

main64301-02070-C0iZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH,VN);ZRE210,ZWE211..(G,N,V)..(GEN,PHL,VN)201908-202306

BLACK,TRIM0#,1#,2#

main64301-02080-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64301-02080-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main64301-02080-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main64301-02080-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#

main64301-02080-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64301-02080-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main64301-02080-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-02070-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM1#

main64302-02070-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main64302-02070-C0iZRE210..D..PHL201908-202410

BLACK,TRIM0#,2#

main64302-02070-C0iZRE211,ZWE211..IDN201908-202410

BLACK,TRIM2#

main64302-02070-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main64302-02080-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

main64302-02080-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main64302-02080-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64302-02080-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main64302-02080-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64302-02080-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main64302-02080-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02G30-C0iZRE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main64330-02G30-C0iZRE211..IDN201908-202306

BLACK,TRIM0#,2#

main64330-02G30-C0iZRE210,ZWE211..(D,E,G,V)..(GEN,SGP)201908-202410

BLACK,TRIM2#

main64330-02G40-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main64330-02G40-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM0#,1#,2#

main64330-02G40-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main64330-02G40-C0iZRE211..D202306-202411

BLACK,TRIM0#,2#

main64330-02G50-C0iZRE211..MA201908-202410

BLACK,TRIM0#,2#

main64330-02G50-C0iZRE210,211,ZWE211..(G,V)..(GEN,VN)201908-202306

BLACK,TRIM2#

main64330-02G50-C0iZRE210,211,ZWE211..(G,V)..(GEN,VN)201908-202306

UP GRADE PACKAGE,BLACK,TRIM2#

main64330-02G50-C0iZWE211..IDN201908-202306

SPORTY PACKAGE,BLACK,TRIM0#,2#

main64330-02G50-C0iZWE211..IDN201908-202306

UP GRADE PACKAGE,BLACK,TRIM0#,2#

main64330-02G50-C0iZWE211..PHL202306-202410

X PACKAGE,BLACK,TRIM2#

main64330-02G60-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64330-02G60-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main64330-02G60-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64330-02G60-C0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

BLACK,TRIM0#,1#

main64330-02G60-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64330-02G60-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main64330-02G60-C0iMZEA11,12,ZRE210,ZWE211..N..GCC202305

BLACK,TRIM0#

main64330-02G80-C0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

BLACK,TRIM0#,1#

main64330-02G80-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08186-C3iZRE210..RHD201908-202012

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH)201908-202012

BLACK,TRIM1#

sub90467-08186¥120

main90467-08186-C3iZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH)201908-202012

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH)201908-202012

BLACK,TRIM0#,1#,2#

sub90467-08186¥120

main90467-08186-C3iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

sub90467-08186¥120

main90467-08186-C3iZRE211..TAIW202304-202405

BLACK,TRIM3#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

sub90467-08186¥120

main90467-08186-C3iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

sub90467-08186¥120

main90467-08186-C3iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

sub90467-08186¥120

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202306

BLACK,TRIM1#

main90467-T0045-C0iZRE210..D..PHL202101-202112

BLACK,TRIM0#,1#

main90467-T0045-C0iZRE210..D..PHL202101-202410

BLACK,TRIM0#,2#

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202410

BLACK,TRIM2#

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202306

BLACK,TRIM0#,1#,2#

main90467-T0045-C0iZRE211..MA202306-202410

X PACKAGE,BLACK,TRIM2#

main90467-T0045-C0iZRE211..D;ZRE210,211,ZWE211..(D,E,G,N,V)..(GEN,MA,SGP,VN)202306

UP GRADE PACKAGE,BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-02380iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main64334-02390iZRE211,ZWE211..TAIW201904-202405

64334APAD, PACKAGE TRAY TRIM

main64334-02520iZRE211,ZWE211..TAIW201904-202405

main64334-02540iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

64385BCLIP

main90467-10161iMZEA1#,ZRE210,ZWE211..GCC¥90201904-202405

main90467-T0021iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-02040iZRE211,ZWE211..(G,V)..PHL202306-202410

main64429-02040iZWE211..GEN,IDN,PHL;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP)201908-202306

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)

main64429-02050iMZEA1#,ZRE210,217,ZWE211..GCC202305

64706CCLIP

main90467-06020-C4iZRE211,ZWE211..IDN201908-202012

BLACK,TRIM2#

sub90467-06020¥190

main90467-06020-C4iZRE211,ZWE211..IDN201908-202012

BLACK,TRIM0#,1#,2#

sub90467-06020¥190

main90467-06020-C4iZRE211,ZWE211..IDN201908-202012

BLACK,TRIM0#,2#

sub90467-06020¥190

main90467-06020-C4iZRE210..RHD201908-202012

BLACK,TRIM1#

sub90467-06020¥190

main90467-06020-C4iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

sub90467-06020¥190

main90467-06020-C4iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

sub90467-06020¥190

main90467-06020-C4iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

sub90467-06020¥190

main90467-06020-C4iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

sub90467-06020¥190

main90467-06020-C4iZRE211..TAIW202304-202405

BLACK,TRIM3#

sub90467-06020¥190

main90467-06020-C4iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

sub90467-06020¥190

main90467-T0046-C1iZRE210..CVT..D..PHL202101-202410

BLACK,TRIM0#,2#

main90467-T0046-C1iZRE210..D..PHL202101-202306

BLACK,TRIM1#

main90467-T0046-C1iZRE210..D..PHL202101-202112

BLACK,TRIM0#,1#

main90467-T0046-C1iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202410

BLACK,TRIM2#

main90467-T0046-C1iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202306

BLACK,TRIM0#,1#,2#

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02450-C0iZWE211..PHL201908-202410

BLACK,TRIM0#,2#

main64710-02450-C0iZWE211..IDN201908-202410

BLACK,TRIM2#

main64710-02450-C0iZWE211..(G,V)..TH;ZWE211..GEN,PHL,VN201908-202306

BLACK,TRIM0#,1#,2#

main64710-02460-C0iZWE211..E201908-202112

BLACK,TRIM0#,1#

main64710-02470-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main64710-02470-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64710-02470-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64710-02470-C0iMZEA12..GCC202305

SAUDI ARABIA SPEC,BLACK,TRIM0#

main64710-02470-C0iMZEA12..GCC202305

BLACK,TRIM0#

main64710-02470-C0iMZEA11,ZRE210..N201904-202305

BLACK,TRIM0#,1#

main64710-02470-C0iMZEA12,ZRE218..TAIW202304

BLACK,TRIM2#

main64710-02480-C0iMZEA18202305

SAUDI ARABIA SPEC,BLACK,TRIM0#

main64710-02480-C0iMZEA17,ZRE217202305

BLACK,TRIM0#

main64710-02480-C0iMZEA11,ZRE210..D..GCC201904-202305

BLACK,TRIM0#,1#

main64710-02630-C0iZRE210..GEN,SGP201908-202306

BLACK,TRIM0#,1#,2#

main64710-02630-C0iZRE210..GEN,SGP201908-202410

BLACK,TRIM2#

main64710-02630-C0iZRE210..GEN,SGP201908-202306

BLACK,TRIM0#,2#

main64710-02640-C0iZRE210..TH201908-202306

BLACK,TRIM1#

main64710-02640-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM0#,1#,2#

main64710-02640-C0iZRE211..D202306-202411

BLACK,TRIM0#,2#

main64710-02650-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main64710-02650-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64710-02650-C0iZWE211..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64710-02650-C0iMZEA12,ZWE211..N..GCC201904-202305

BLACK,TRIM0#,1#

main64710-02650-C0iMZEA12,ZWE211..N..GCC202305

BLACK,TRIM0#

main64710-02660-C0iMZEA18,ZWE211..D202305

BLACK,TRIM0#

main64710-02660-C0iMZEA12,ZWE211..D201904-202305

BLACK,TRIM0#,1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iZRE210..RHD201908-202012

BLACK,TRIM1#

sub90467-08186¥120

main90467-08186-C3iZRE210..RHD201908-202012

BLACK,TRIM0#,1#,2#

sub90467-08186¥120

main90467-08186-C3iZRE210..RHD201908-202012

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..TAIW202304-202405

BLACK,TRIM3#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

sub90467-08186¥120

main90467-08186-C3iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

sub90467-08186¥120

main90467-08186-C3iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

sub90467-08186¥120

main90467-08186-C3iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

sub90467-08186¥120

main90467-T0045-C0iZRE211..X;ZWE211..IDN;ZRE210,211..IDN,TH;ZWE211..(G,X)..(PHL,SGP,TH)202101-202410

BLACK,TRIM2#

main90467-T0045-C0iZRE210..D..PHL202101-202306

BLACK,TRIM1#

main90467-T0045-C0iZRE210..D..PHL202101-202112

BLACK,TRIM0#,1#

main90467-T0045-C0iZRE210..D..PHL202101-202410

BLACK,TRIM0#,2#

main90467-T0045-C0iZRE211,ZWE211..(G,V)..(IDN,TH)202101-202306

BLACK,TRIM0#,1#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02300-C0iZRE211..X;ZWE211..IDN;ZRE210,211..IDN,TH;ZWE211..(G,X)..(PHL,SGP,TH)201908-202410

BLACK,TRIM2#

main64719-02300-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main64719-02300-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main64719-02300-C0iZRE210..D..PHL201908-202410

BLACK,TRIM0#,2#

main64719-02300-C0iZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH,VN);ZRE210,ZWE211..(G,N,V)..(GEN,PHL,VN)201908-202306

BLACK,TRIM0#,1#,2#

main64719-02320-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64719-02320-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main64719-02320-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main64719-02320-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#

main64719-02320-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64719-02320-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main64719-02320-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C3iZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH)201908-202012

BLACK,TRIM1#

sub90467-08186¥120

main90467-08186-C3iZWE211..E201904-202305

BLACK,TRIM0#,1#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM0#,1#,2#

sub90467-08186¥120

main90467-08186-C3iZRE210..D..PHL201908-202012

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

sub90467-08186¥120

main90467-08186-C3iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

sub90467-08186¥120

main90467-08186-C3iZRE211..TAIW202304-202405

BLACK,TRIM3#

sub90467-08186¥120

main90467-08186-C3iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

sub90467-08186¥120

main90467-08186-C3iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

sub90467-08186¥120

main90467-T0045-C0iZRE210..RHD;ZWE211..SGP202101-202306

BLACK,TRIM0#,1#,2#

main90467-T0045-C0iZRE210..RHD;ZWE211..SGP202101-202306

BLACK,TRIM1#

main90467-T0045-C0iZRE210..RHD;ZWE211..SGP202101-202410

BLACK,TRIM0#,2#

main90467-T0045-C0iZRE210..CVT..D..PHL202101-202410

BLACK,TRIM2#

main90467-T0045-C0iZWE211..MA;ZRE210..E..PHL202101-202112

BLACK,TRIM0#,1#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02430-C0iZWE211..(G,V)..TH;ZWE211..GEN,PHL,VN201908-202410

BLACK,TRIM2#

main64720-02430-C0iZWE211..IDN;ZWE211..(G,X)..(PHL,SGP,TH)201908-202410

BLACK,TRIM0#,2#

main64720-02430-C0iZWE211..SGP201908-202306

BLACK,TRIM0#,1#,2#

main64720-02440-C0iZWE211..E201908-202112

BLACK,TRIM0#,1#

main64720-02450-C0iZRE211..G..TAIW201904-202304

BLACK,TRIM1#,2#

main64720-02450-C0iMZEA12,ZRE218..TAIW202304

BLACK,TRIM2#

main64720-02450-C0iMZEA12..GCC202305

BLACK,TRIM0#

main64720-02450-C0iMZEA11,ZRE210..GCC202305

SAUDI ARABIA SPEC,BLACK,TRIM0#

main64720-02450-C0iZRE211..G..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64720-02450-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64720-02450-C0iMZEA11,ZRE210..N201904-202305

BLACK,TRIM0#,1#

main64720-02460-C0iMZEA17,ZRE217202305

SAUDI ARABIA SPEC,BLACK,TRIM0#

main64720-02460-C0iMZEA17,ZRE217202305

BLACK,TRIM0#

main64720-02460-C0iMZEA11,ZRE210..D..GCC201904-202305

BLACK,TRIM0#,1#

main64720-02640-C0iZRE210,211..CVT..(E,G,V)..(MA,PHL,VN)201908-202306

BLACK,TRIM0#,2#

main64720-02640-C0iZRE210..GEN,SGP201908-202306

BLACK,TRIM0#,1#,2#

main64720-02640-C0iZRE210..GEN,SGP201908-202410

BLACK,TRIM2#

main64720-02650-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM0#,1#,2#

main64720-02650-C0iZRE210..TH201908-202306

BLACK,TRIM1#

main64720-02650-C0iZRE211..D202306-202411

BLACK,TRIM0#,2#

main64720-02660-C0iZWE211..E202304

BLACK,TRIM2#,3#

main64720-02660-C0iZWE211..E202304

BLACK,TRIM2#

main64720-02660-C0iMZEA12,ZWE211..N..GCC201904-202305

BLACK,TRIM0#,1#

main64720-02660-C0iZWE211..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64720-02660-C0iMZEA12,ZWE211..N..GCC202305

BLACK,TRIM0#

main64720-02670-C0iMZEA12,ZWE211..D201904-202305

BLACK,TRIM0#,1#

main64720-02670-C0iMZEA18,ZWE211..D202305

BLACK,TRIM0#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-C2iZRE210..RHD;ZWE211..SGP201908-202410

BLACK,TRIM2#

main64726-26010-C2iZRE210..RHD;ZWE211..SGP201908-202306

BLACK,TRIM0#,1#,2#

main64726-26010-C2iZRE210..RHD;ZWE211..SGP201908-202306

BLACK,TRIM1#

main64726-26010-C2iZRE210..RHD;ZWE211..SGP201908-202410

BLACK,TRIM0#,2#

main64726-26010-C2iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64726-26010-C2iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64726-26010-C2iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main64726-26010-C2iZWE211..E201904-202305

BLACK,TRIM0#,1#

main64726-26010-C2iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main64726-26010-C2iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-02080iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202005

main64727-02140iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202002

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-02110-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64749-02110-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main64749-02110-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main64749-02110-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64749-02110-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main64749-02110-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main64749-02110-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

64771COVER, SPARE WHEEL

main64771-02530-C0iZWE211..V..TH;ZRE211..G..PHL201908-202410

BLACK,TRIM0#,2#

main64771-02530-C0iZRE211,ZWE211..IDN201908-202410

BLACK,TRIM2#

main64771-02530-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main64771-02540-C0iZRE210..D..PHL201908-202112

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM0#,1#

main64771-02540-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main64771-02540-C0iZRE210..CVT..D..PHL201908-202306

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),BLACK,TRIM0#,1#,2#

main64771-02540-C0iZRE211..D202306-202411

BLACK,TRIM0#,2#

main64771-02550-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

main64771-02550-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main64771-02550-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main64771-02550-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main64771-02550-C0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

BLACK,TRIM0#,1#

main64771-02550-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main64771-02550-C0iMZEA11,12,ZRE210,ZWE211..N..GCC202305

BLACK,TRIM0#

main64771-02560-C0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

BLACK,TRIM0#,1#

main64771-02560-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

main64771-02660-C0iZWE211..E201908-202112

BLACK,TRIM0#,1#

main64771-02660-C0iZRE210..TH201908-202306

BLACK,TRIM0#,1#,2#

64777GCUSHION, SPARE WHEEL

main64777-02420iZRE210,211..TH,VN;ZWE211..(G,V)..(SGP,TH,VN)201908-202306

main64777-02420iZWE211..V..TH202306-202410

X PACKAGE&TIRE & DISC WHEEL-225/40R18,ALUMINUM

main64777-02430iZWE211..E;ZWE211..MA201908-202306

SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)

main64777-02430iZRE211..(D,E)..(MA,PHL);ZRE211,ZWE211..X..(IDN,PHL);ZRE210,211,ZWE211..(D,E,G,N,V)..(GEN,IDN,SGP)202306-202410

main64777-02440iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main64777-02450iMZEA1#,ZRE210,217,ZWE211..GCC202305

main64777-02530iMZEA12,ZRE218,ZWE211..TAIW201904-202405

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)¥220201904-202410

90119T0156

main90119-T0156¥60

9046709206

main90467-09206¥80

27 parts on this diagram · 4 diagrams in section
