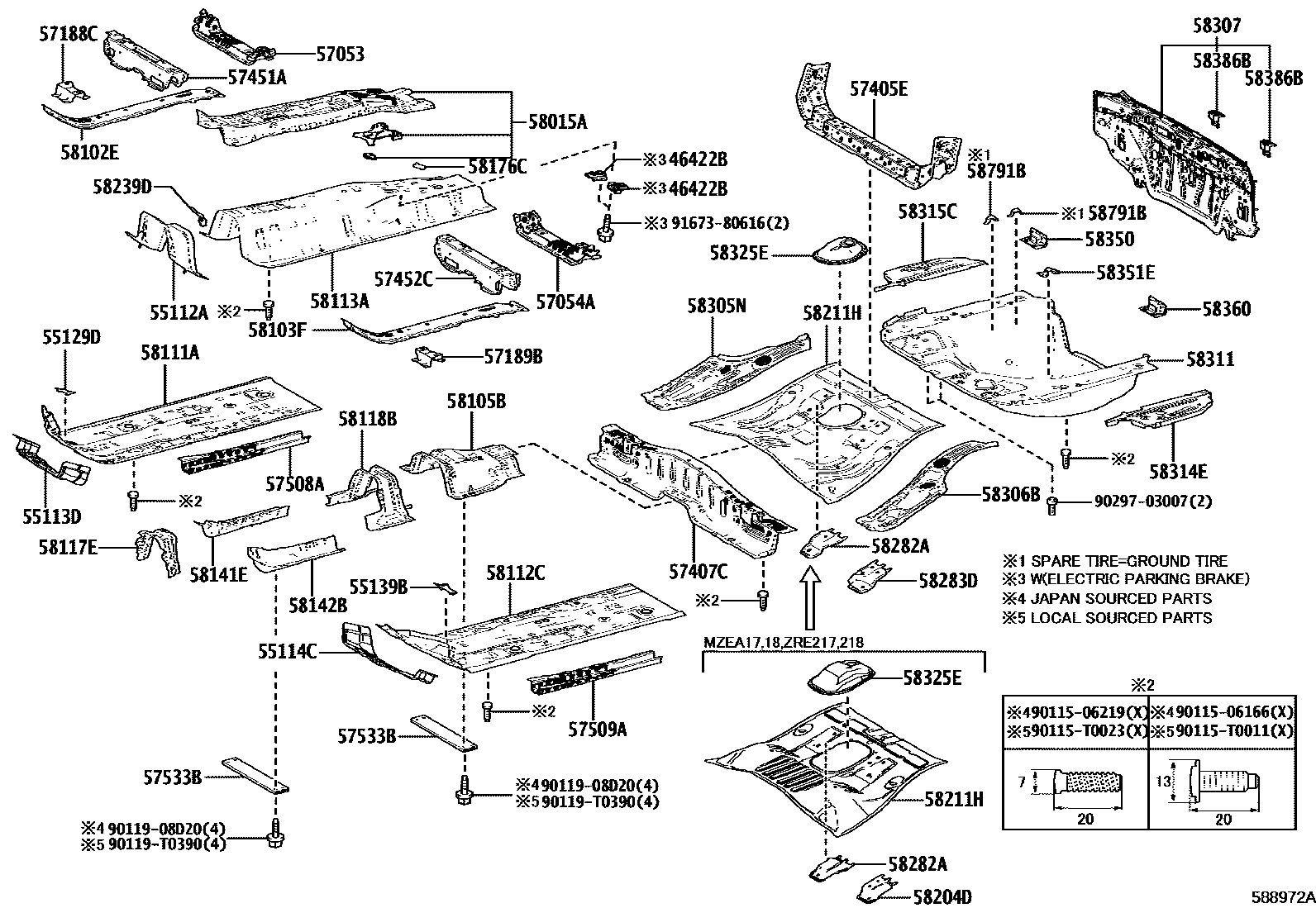

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

46422BCAP, PARKING BRAKE CABLE, CASING

main46422-02030×2iZRE211..E..MA201908-202306

UP GRADE PACKAGE

55112APANEL, DASH, NO.2

main55112-02040iZRE211..TAIW202304-202405

main55112-47040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(J)

main55112-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(L)

55113DPANEL, DASH, LOWER RH

main55113-02050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main55113-02080iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

55114CPANEL, DASH, LOWER LH

main55114-02090iZRE211..TAIW202304-202405

main55114-02120iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

55129DCOVER, DASH PANEL HOLE, RH

main55129-02110iZRE211,ZWE211..TAIW201904-202304

main55129-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

55139BCOVER, DASH PANEL HOLE, LH

main55139-02100iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main55139-F4020iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02120iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main57053-02130iZRE211,ZWE211..TAIW201904-202304

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02110iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main57054-02120iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-02090iZRE211..TAIW202304-202405

main57188-02120iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-02070iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57189-02100iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-02050iZRE211,ZWE211..TAIW201904-202304

main57405-02081iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02260iZWE211..GCC201904-202305

main57407-02270iMZEA12,ZRE21#..GCC,TAIW201904-201909

main57407-02271iZRE211..TAIW201909-202304

main57407-02330iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202306

main57407-02340iZRE21#..GEN,IDN,MA,PHL,SGP,TH201908-201912

main57407-02341iZRE210..6F201912-202112

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02260iZRE211..TAIW202304-202405

main57451-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02200iZRE211..TAIW202304-202405

main57452-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-02070iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main57508-02071iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202408

main57508-02080iMZEA1#,ZRE210,ZWE211..GCC201904-202305

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-02070iZRE210,211,ZWE211..GEN,IDN,MA,PHL,SGP,TH,VN202306-202408

main57508-02071iZRE211..G..PHL;ZWE211..V..(PHL,TH)202408-202410

main57508-02080iZRE211..TAIW202304-202405

57533BBRACE, FRONT FLOOR, CENTER

main57533-02180×2iMZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X202304

main57533-F4030×3iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)202306

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02270iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main58015-02280iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-02250iZRE211..TAIW202304-202405

main58102-02280iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-02250iZRE211..TAIW202304-202405

main58102-02280iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-02100iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202011

main58105-02101iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202011-202112

main58105-02110iZRE211..TAIW202304-202405

58111APAN, FRONT FLOOR, RH

main58111-02400iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main58111-02401iZRE211..G..PHL;ZWE211..V..(PHL,TH)202408-202410

main58111-47100iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201910

main58111-47101iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201911-202104

main58111-47102iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

58112CPAN, FRONT FLOOR, LH

main58112-02150iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main58112-02151iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202408

main58112-47050iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201910

main58112-47051iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201911-202104

main58112-47052iMZEA1#,ZRE210,ZWE211..GCC202105-202305

58113APANEL, FRONT FLOOR, CENTER

main58113-02190iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main58113-02200iZRE211,ZWE211..TAIW201904-202304

58117EPANEL, FRONT FLOOR SUB COVER

main58117-02070iZRE211..TAIW202304-202405

main58117-F4020iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202011

main58117-F4021iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-02110iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main58118-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-02090iZRE211..TAIW202304-202405

main58141-02120iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-02100iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main58142-02130iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02080iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main58176-02090iZRE211..TAIW202304-202405

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0A020iMZEA17,18,ZRE217,218202304

58211HPAN, CENTER FLOOR

main58211-02560iZWE211..GCC,TAIW201904-202007

main58211-02561iZWE211..GCC,TAIW202007-202209

main58211-02562iZWE211..GCC,TAIW202304-202405

main58211-02563iZWE211..GCC,TAIW202405

main58211-02570iMZEA12,ZRE21#..GCC,TAIW201904-202007

main58211-02571iMZEA11,12,ZRE210..N,X202304

main58211-0A091iMZEA17,18,ZRE217,218202304

main58211-F4040iZWE211..(E,G,V)..TH;ZWE211..GEN,IDN,MA,PHL,SGP201908-202111

main58211-F4041iZWE211..E;ZWE211..MA202111-202112

main58211-F4042iZWE211..G;ZWE211..GEN,IDN,SGP,VN202306-202411

sub90333-25003

main58211-F4043iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)202411

main58211-F4050iZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202111

main58211-F4051iZRE211..G..PHL202306-202410

58239DBRACKET, CABLE CLAMP

main58239-02060iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main58239-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-02260iZRE211..TAIW202304-202405

main58282-0A070iMZEA17,18,ZRE217,218202304

main58282-F4020iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-02210iZRE211..TAIW202304-202405

main58283-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02120iZWE211..GCC,TAIW202304

main58305-02130iZRE211..TAIW201904-202304

main58305-02220iZRE210..6F201908-202112

main58305-02230iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202306

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02130iZWE211..GCC,TAIW201904-201909

main58306-02131iZWE211..GCC201909-202305

sub90950-01960

main58306-02132iZWE211..GCC,TAIW202402

main58306-02140iZRE211..TAIW201904-202304

main58306-02230iZRE211..G..PHL202306-202410

main58306-02240iZWE211..GEN,IDN,MA,PHL,SGP,TH201908-201912

main58306-02241iZWE211..GEN,IDN,PHL,SGP,TH,VN202306-202402

sub90950-01960

main58306-02242iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)202402

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02520iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main58307-02530iZRE211..TAIW202304-202405

58311PAN, REAR FLOOR

main58311-02400iZWE211..(E,G,V)..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202111

main58311-02401iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202111-202112

main58311-02410iZRE211..TAIW202304-202405

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-02080iZWE211..(E,G,V)..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202106

main58316-02081iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202106-202306

main58316-02090iZRE211..TAIW202304-202405

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-02120iZWE211..(E,G,V)..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202106

main58315-02121iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202106-202112

main58315-02130iZRE211..TAIW202304-202405

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02250iZWE211..TAIW201904-202304

main58325-02260iMZEA1#,ZRE210..GCC201904-202305

main58325-02330iMZEA17,18,ZRE217,218202304

main58325-F4040iZWE211..V..(PHL,TH)202306-202410

main58325-F4050iZRE210..6F201908-202112

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-02040iZRE211..TAIW202304-202405

main58350-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02070iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main58351-02080iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-02040iZRE211..TAIW202304-202405

main58350-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02120×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main58386-0D070×2iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

58791BCARRIER, JACK

main58791-02130×2iZRE211,ZWE211..(G,V)..PHL202306-202410

main58791-02140×2iMZEA1#,ZRE210,217,ZWE211..GCC202305

9011506166

main90115-06166

9011506219

main90115-06219

90115T0011

main90115-T0011

90115T0023

main90115-T0023

9011908D20

main90119-08D20

90119T0390

main90119-T0390

9029703007

main90297-03007

9167380616

main91673-80616

54 parts on this diagram · 2 diagrams in section
