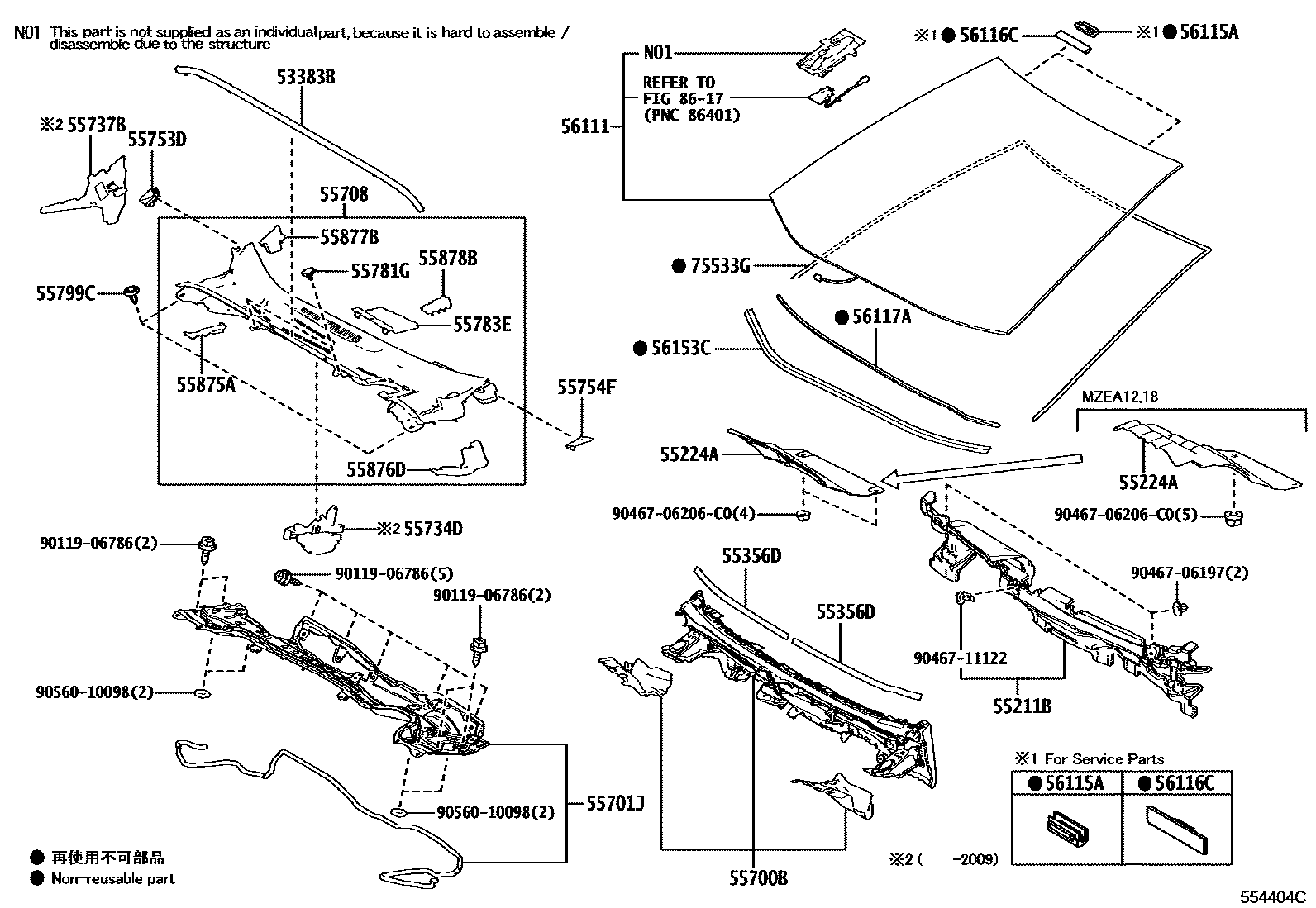

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-02280iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main53383-02290iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55211BSILENCER, FRONT PANEL

main55211-02300iZRE211,ZWE211..(G,V)..PHL202306-202410

main55211-02310iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)201908-202306

main55211-02320iZRE211,ZWE211..TAIW201904-202304

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02220iZWE211..VN;ZWE211..X..PHL202306

main55224-02230iZWE211..V..TH202306-202410

main55224-02240iMZEA11,ZWE211..GCC201904-202305

main55738-02120iMZEA12,18202305

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02530×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main55356-02540×2iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

55700BCOWL ASSY

main55700-02680iZRE211,ZWE211..(G,V)..PHL202306-202410

main55700-02690iZRE210,211..RHD;ZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main55700-02700iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02610iZRE211,ZWE211..(D,X)..PHL;ZRE210,211,ZWE211..LHD..(GEN,VN)202306

main55701-02620iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)201908-202306

main55701-02630iZRE211,ZWE211..TAIW201904-202304

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02870iZRE211,ZWE211..(D,X)..PHL;ZRE210,211,ZWE211..LHD..(GEN,VN)202306

main55708-02880iZWE211..V..TH202306-202410

main55708-02890iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55734DPLATE, WATER GUARD

main55734-02430iZRE210..6F201908-202112

main55734-02440iZRE210,211..RHD;ZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main55734-02450iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201904-202009

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02270iZRE211,ZWE211..(G,V)..PHL202306-202410

main55737-02280iZRE210,211..RHD;ZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main55737-02290iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201904-202009

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02190iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main55753-02210iZRE211,ZWE211..TAIW201904-202304

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02200iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main55754-02220iZRE211,ZWE211..TAIW201904-202304

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02330iZRE210..6F201908-202112

main55783-02340iZWE211..E;ZWE211..MA201908-202112

main55783-02350iZRE211..TAIW202304-202405

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

55875ASEAL, AIR DUCT, NO.5

main55875-02270iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55876DSEAL, AIR DUCT, NO.6

main55876-02180iZRE211,ZWE211..TAIW201904-202304

55877BCOVER, COWL VENT, RH

main55877-02300iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55878BCOVER, COWL VENT, LH

main55878-02240iMZEA1#,ZRE210,ZWE211..GCC201904-202305

56111GLASS, WINDSHIELD

main56101-02997iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main56101-02998iZRE211..TAIW201904-202209

LOW GRADE PACKAGE

main56101-0Z901iZRE211..E..VN;ZRE210..CVT..(D,G)..PHL201908-202306

main56101-0Z907iZWE211..E201908-202112

main56101-0Z909iZWE211..G;ZRE211..E..MA201908-202201

main56101-0Z911iZWE211..V..(IDN,SGP,TH)201908-202201

BRUNEI SPEC& SPORTY PACKAGE&TOYOTA SAFETY SENSE-WITH

main56101-0Z912iZWE211..MA201908-202112

main56101-0Z920supersedes 56101-0Z913iZWE211..G;ZRE211..E..MA202201-202306

MIDDLE GRADE PACKAGE

main56101-0Z924iZWE211..SGP;ZRE211,ZWE211..G..TH202306

main56101-0Z925supersedes 56101-0Z902iZWE211..PHL202306-202410

main56101-0Z926iZWE211..VN202306

main56101-0Z927iZRE211..X..MA202411

main56101-0Z928supersedes 56101-0Z920iZWE211..V..TH202306-202410

main56101-0Z929supersedes 56101-0Z930iZRE211..TAIW202209-202304

LOW GRADE PACKAGE

main56101-0Z931iZRE211..X..PHL202306

main56101-0Z932iZRE218..D202304

main56101-0Z905supersedes 56101-0Z902iZRE210,ZWE211..V..PHL201908-202201

TOYOTA SAFETY SENSE-WITH

main56101-0Z910supersedes 56101-0Z922iZRE211..IDN201908-202201

UP GRADE PACKAGE

main56101-0Z921supersedes 56101-0Z920iZRE211..E..MA202201-202306

SPORTY PACKAGE

main56101-0Z923supersedes 56101-0Z908iZWE211..GEN202201-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iZRE211,ZWE211..TAIW201904-202304

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02310iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

L=1298

main56117-50140supersedes 56117-50140iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

*D,L=1298

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-02080iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main56153-12010iZRE210,ZWE211..PHL201908-202111

main56153-12020iZWE211..(E,G,V)..TH;ZRE21#..RHD..(D,E,G);ZWE211..GEN,IDN,MA,SGP201908-202111

main56153-12030iZRE210,211,ZWE211..PHL,VN202112-202306

main56153-12040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)202112-202306

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02220iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main75533-02230iZRE211,ZWE211..TAIW201904-202304

8617

9011906786

main90119-06786

9046706197

main90467-06197

9046706206C0

main90467-06206C0

9046711122

main90467-11122

9056010098

main90560-10098

30 parts on this diagram · 3 diagrams in section
