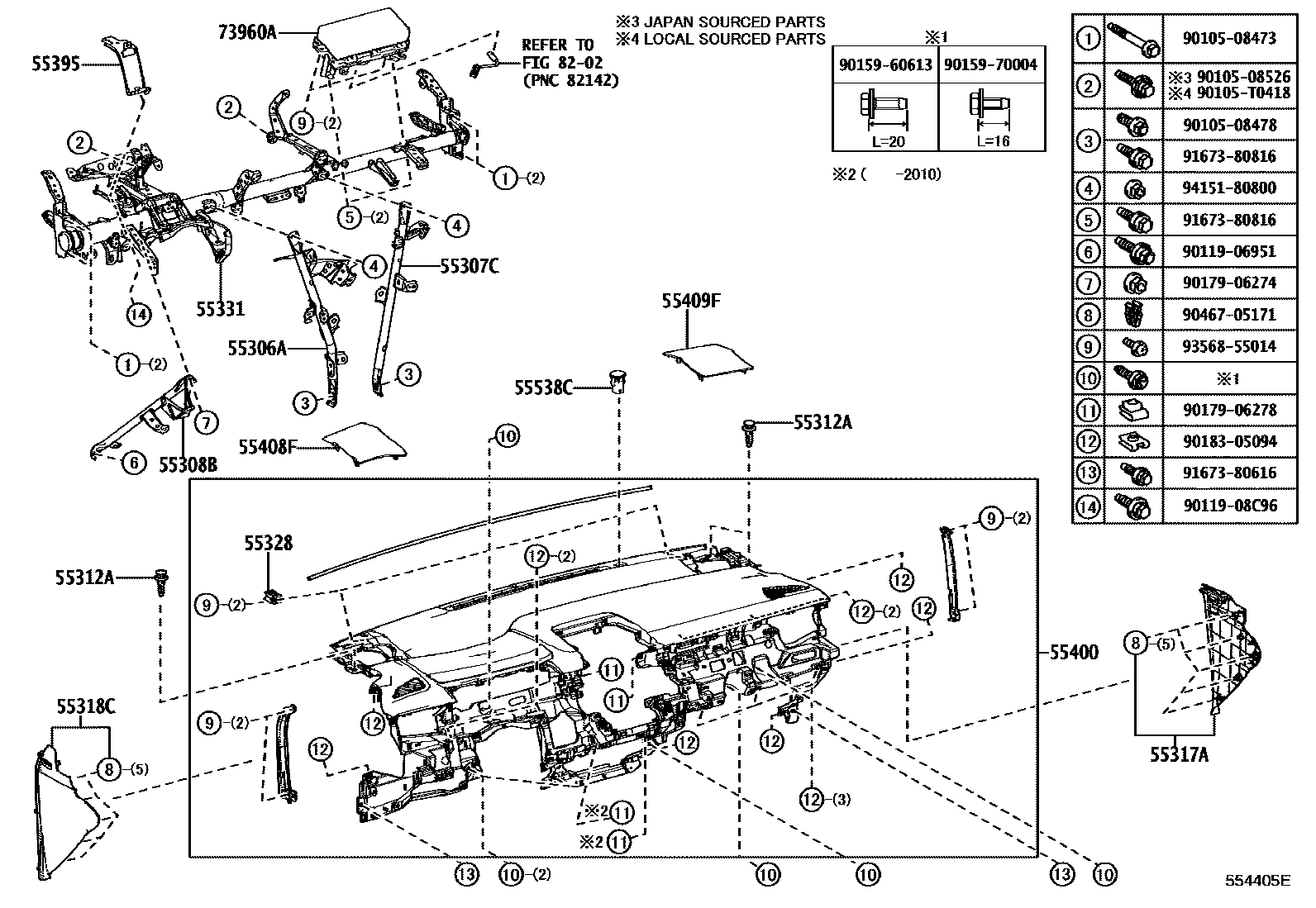

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1 0007 1DRIVER SIDE 0008 1CENTER 0009 1PASSENGER SIDE 0010 1 0011 1DRIVER SIDE 0012 1CENTER 0013 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02700iZRE210,211,ZWE211..CVT..(PHL,VN)201908-202306

main55306-02710iZWE211..V..TH202306-202410

main55306-02720iMZEA1#,ZRE210,ZWE211..GCC201904-202305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02550iZRE210..6F201908-202112

main55307-02560iZWE211..V..TH202306-202410

main55307-02570iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02200iZRE210..6F201908-202112

main55308-02210iZWE211..E;ZWE211..MA201908-202112

main55308-02220iZRE211..TAIW202304-202405

55312ACLIP, INSTRUMENT PANEL

main52161-0K040×3iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

(L)

main52161-0K060×2iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

(L)

main52161-16010×3iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

55317APANEL, INSTRUMENT SIDE, RH

main55318-02270-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

main55318-02280-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main55318-02360-C0iZWE211..MA;ZRE210..E..PHL201908-202112

BLACK,TRIM1#

main55318-02370-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-02730-C0iZWE211..MA;ZRE210..E..PHL201908-202112

BLACK,TRIM1#

main55317-02740-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

main55317-02810-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

main55317-02800-C0iZRE210..RHD..GEN202306

TRINIDAD & TOBAGO,BARBADOSE SPEC,BLACK,TRIM0#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMZEA1#,ZRE210,ZWE211..GCC202108-202305

main55328-60090×2iMZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..(E,G,V)..TH;ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW201904-202108

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-02A70iZRE210..6F201908-202112

main55330-02A80iZWE211..VN202201-202306

main55330-02A90iZRE211..IDN201908-202306

SPORTY PACKAGE

main55330-02B10supersedes 55330-02B00iZRE211..TAIW201904-202304

LOW GRADE PACKAGE

main55330-02C40iZRE211,ZWE211..(G,V)..PHL202306-202410

main55330-02C50supersedes 55330-02C50iZRE210,ZWE211..RHD..G;ZRE211..(E,G)..(IDN,MA)201908-202306

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02090iZRE210..6F201908-202112

main55395-02100iZWE211..E;ZWE211..MA201908-202112

main55395-02110iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-02340-C1iZRE210..G..PHL;ZRE211,ZWE211..VN201908-202306

SOFT BLACK,TRIM1#

main55400-02350-C1supersedes 55400-02340-C1iZRE211,ZWE211..(E,G,V)..VN202306

SOFT BLACK,TRIM2#

main55400-02360-C1iZWE211..GEN;ZWE211..(G,V)..TH201908-202306

SOFT BLACK,TRIM0#,1#,2#

main55400-02370-C1iZRE210,211,ZWE211..RHD..(D,E,N)202306

SOFT BLACK,TRIM2#

main55400-02410-C1iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

SOFT BLACK,TRIM2#,3#

main55400-02550-C0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

BLACK,TRIM0#,1#

main55400-02220-C0iMZEA11,12,ZWE211..N..GCC202411

DATA COMMUNICATION MODULE-WITH(E-CALL),SOFT BLACK,TRIM0#

main55400-02230-C0iMZEA17,ZWE211..D202411

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL),BLACK,TRIM0#

main55400-02400-C1supersedes 55400-02410-C1iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

AUDIO-CD & *BT & USB & 6SPEAKER,SOFT BLACK,TRIM0#,1#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02120-C0iZRE210,211,ZWE211..CVT..(E,G,V)..(PHL,VN)201908-202306

BLACK,TRIM1#

main55472-02130-C0iZWE211..E201908-202112

BLACK,TRIM0#,2#

main55472-02140-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main55472-02200-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02100-C0iZRE211..D;ZRE210,211,ZWE211..LHD..(E,G,V)..(GEN,VN)202306

BLACK,TRIM0#,2#

main55473-02110-C0iZWE211..E201908-202112

BLACK,TRIM0#,2#

main55473-02120-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#,3#

main55473-02220-C0iMZEA11,12,17,ZWE211..GCC202405

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL),BLACK,TRIM0#

55538CCOVER, COOLER SWITCH HOLE

main55538-02080-C0iMZEA1#,ZRE210..GCC201904-202305

UP GRADE PACKAGE,BLACK,TRIM0#,1#

main55538-12110-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02410iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main73960-12320iZRE211..TAIW202304-202405

main73960-12360iMZEA1#,ZRE210,217,ZWE211..GCC202305

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

90105T0418

main90105-T0418

9011906951

main90119-06951

9011908C96

main90119-08C96

9015960613

main90159-60613

9015970004

main90159-70004

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

31 parts on this diagram · 13 diagrams in section
