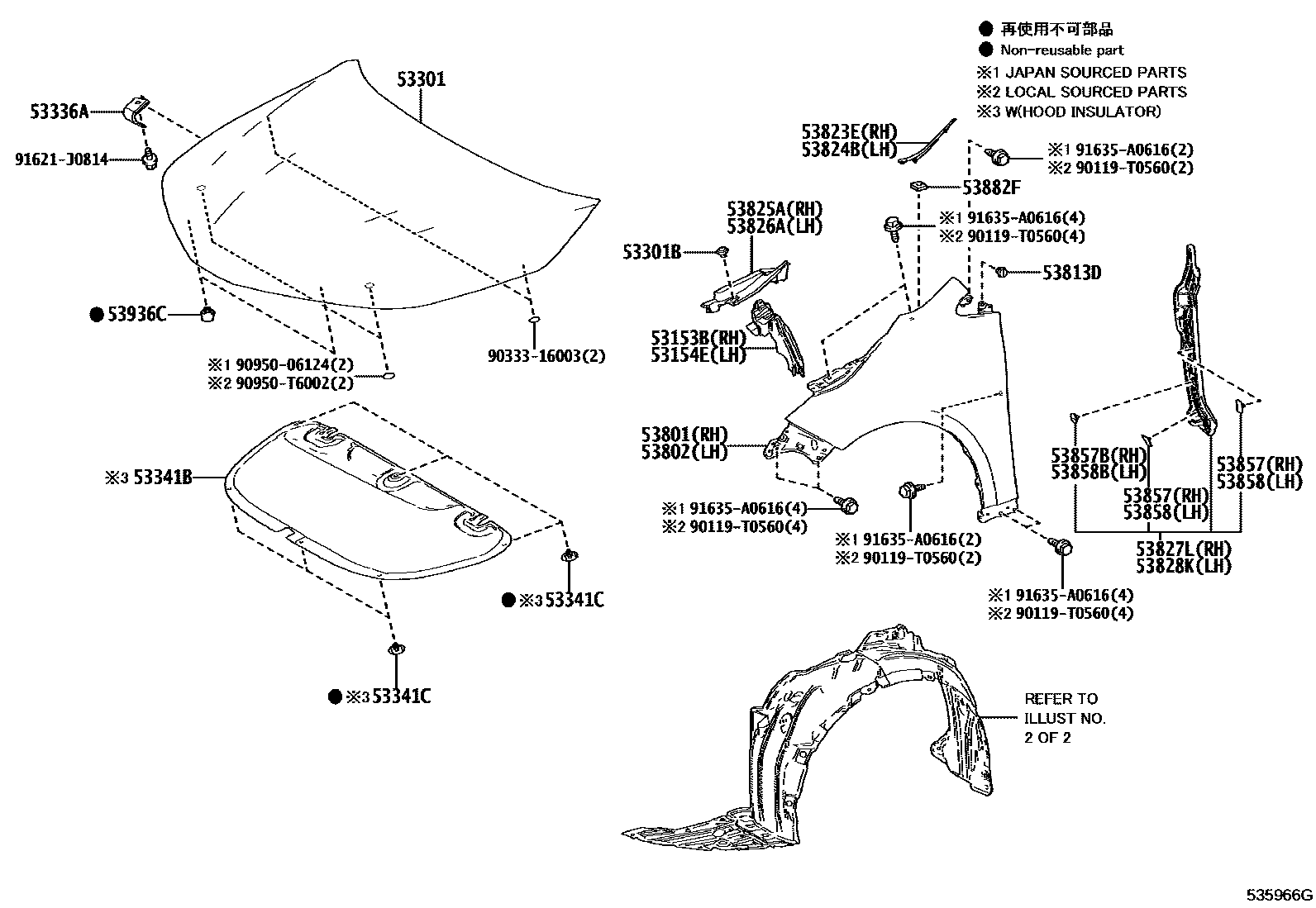

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-02120iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main53153-02130iMZEA1#,ZRE210,ZWE211..GCC201904-202305

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02120iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main53154-02130iZRE211..TAIW202304-202405

53301HOOD SUB-ASSY

main53301-02400iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53301-02410iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

53301BCUSHION, HOOD BUMPER

main53384-02050×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

(L)

main53384-78010×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

53336ABRACKET, HOOD STAY

main53336-02040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main53336-02050iZRE211..TAIW202304-202405

53341BINSULATOR, HOOD

main53341-02410iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main53341-02420iZRE211,ZWE211..TAIW201904-202304

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZRE210..6F;ZWE211..MA201908-202112

(J)

main90467-T0014×6iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-02270iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main53801-02300iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

53802FENDER SUB-ASSY, FRONT LH

main53802-02290iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53802-02300iZRE211,ZWE211..TAIW201904-202304

53813DEXTENSION, FRONT FENDER

main53813-48011×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02211iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main53823-02221iMZEA1#,ZRE210,ZWE211..GCC201904-202305

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02211iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53824-02221iMZEA1#,ZRE210,ZWE211..GCC201904-202305

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02180iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main53825-02190iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02180iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53826-02190iZRE211,ZWE211..TAIW201904-202304

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02270iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main53827-02280iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02270iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53828-02280iZRE211..TAIW202304-202405

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iZRE211,ZWE211..TAIW201904-202304

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

53882FSEAL, FRONT FENDER

main53882-33060×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

53936CCUSHION

main90541-09117×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

90119T0560

main90119-T0560

9033316003

main90333-16003

9095006124

main90950-06124

90950T6002

main90950-T6002

91621J0814

main91621-J0814

91635A0616

main91635-A0616

28 parts on this diagram · 2 diagrams in section
