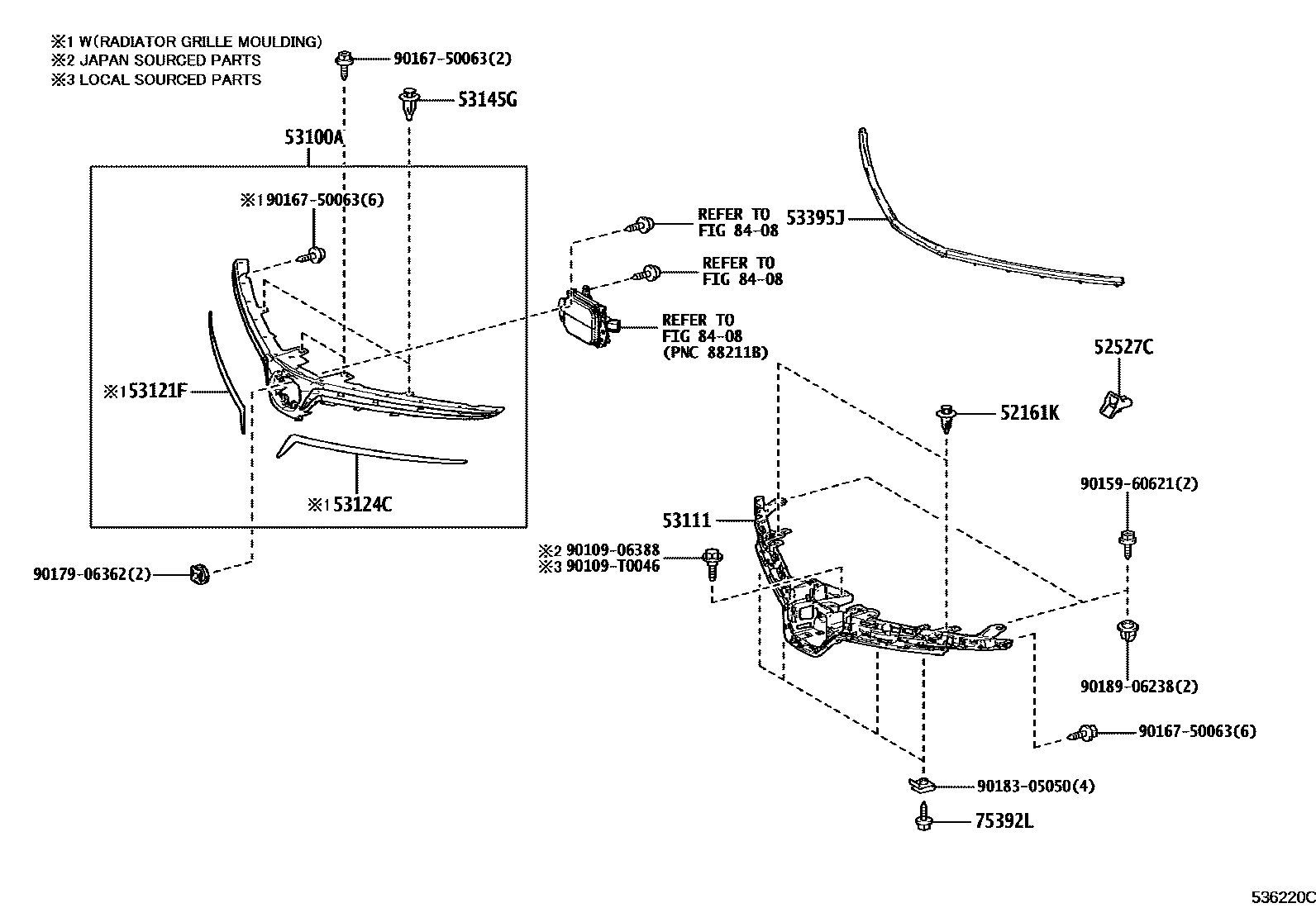

RADIATOR GRILLE

52161KPIECE, FRONT BUMPER

main52161-0K040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(L)

main52161-0K060iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

(L)

main52161-16010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

(J)

sub52161-0K040

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02070iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main52527-02080iMZEA1#,ZRE210,ZWE211..GCC201904-202405

53100AGRILLE ASSY, RADIATOR

main53100-02E20iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main53100-02E60iMZEA17,ZRE217202305

UP GRADE PACKAGE

main53100-02E60iZRE211,ZWE211..TAIW201904-202405

main53100-02E60iZRE217202405

UP GRADE PACKAGE&FRONT FOG LAMP-WITH

main53100-02G70iZRE211,ZWE211..X202411

main53100-02G80iMZEA12..TAIW202405

main53114-02750iMZEA17,ZRE217202305

main53114-02750iMZEA11,ZRE210..D..GCC201904-202305

LOW GRADE PACKAGE

main53114-02750iMZEA18202405

SAUDI ARABIA SPEC&LOW GRADE PACKAGE&FRONT FOG LAMP-WITH

main53114-02750iMZEA12..D202209-202305

SAUDI ARABIA SPEC& LOW GRADE PACKAGE

main53114-02750iZRE210..D..GCC202008-202305

LOW GRADE PACKAGE&FRONT FOG LAMP-WITH

main53114-02750iMZEA18202305-202405

SAUDI ARABIA SPEC&LOW GRADE PACKAGE

53111GRILLE, RADIATOR

main53111-02D10iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

NO PAINT REQ.

main53111-02D30iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304-202405

NO PAINT REQ.

main53111-02D30iZRE211,ZWE211..TAIW201904-202305

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02470iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main53121-02480iZRE211..TAIW201904-202405

main53121-02480iZRE217202405

UP GRADE PACKAGE&FRONT FOG LAMP-WITH

main53121-02480iMZEA17,ZRE217202305

UP GRADE PACKAGE

main53121-02630iZRE211,ZWE211..X202411

main53121-02640iMZEA12..TAIW202405

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02450iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main53124-02460iMZEA17,ZRE217202305

UP GRADE PACKAGE

main53124-02460iZRE217202405

UP GRADE PACKAGE&FRONT FOG LAMP-WITH

main53124-02460iZRE211,ZWE211..TAIW201904-202405

main53124-02590iZRE211,ZWE211..X202411

main53124-02600iMZEA12..TAIW202405

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0iZRE211,ZWE211..TAIW201904-202410

BLACK

sub90467-05063

53395JSEAL, HOOD TO FRONT END PANEL

main53395-02280iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main53395-02290iZRE211..TAIW201904-202405

75392LRETAINER, OUTSIDE MOULDING

main75392-42030iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

8408

9010906388

main90109-06388

90109T0046

main90109-T0046

9015960621

main90159-60621

9016750063

main90167-50063

9017906362

main90179-06362

9018305050

main90183-05050

9018906238

main90189-06238

17 parts on this diagram · 1 diagram in section
