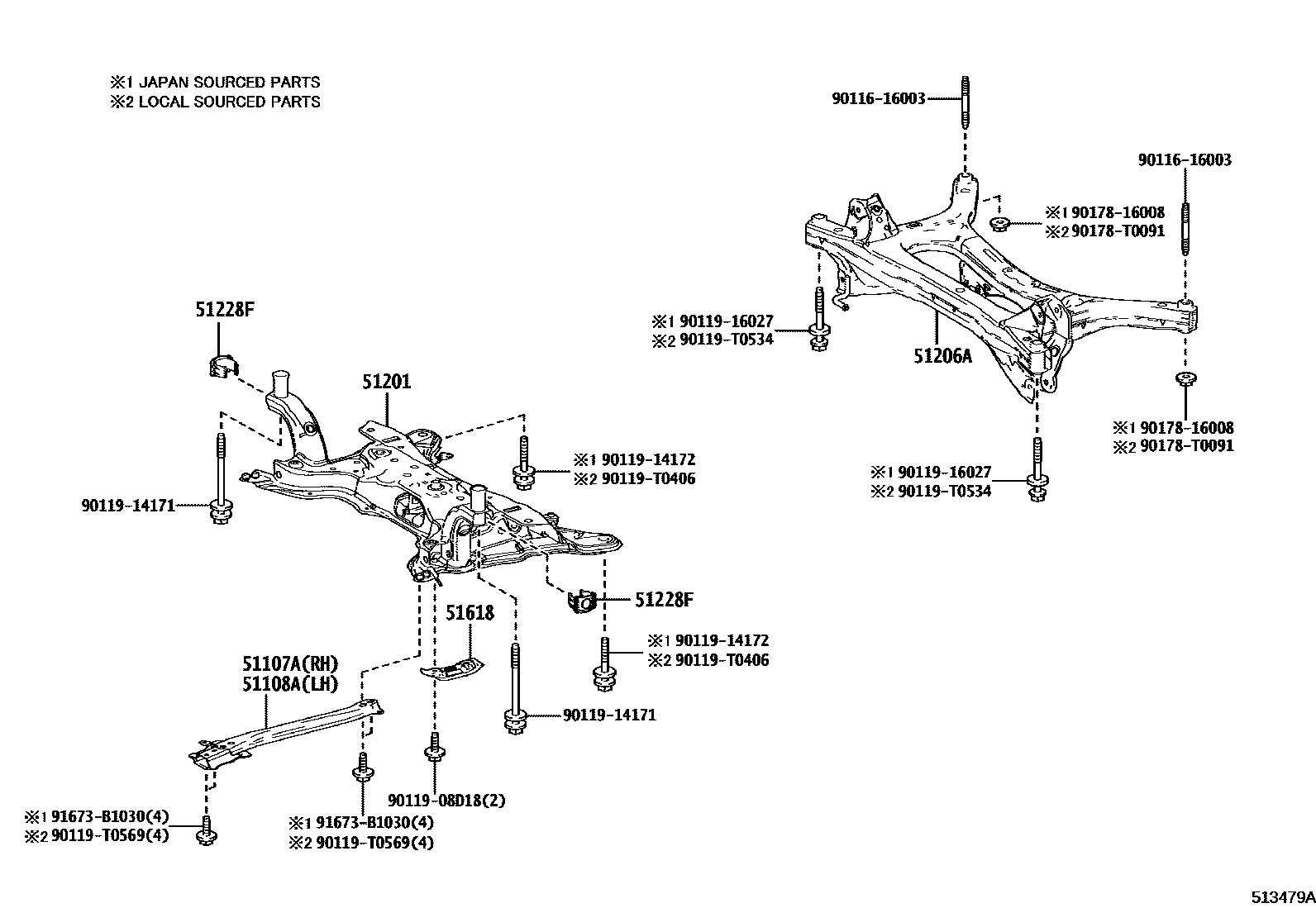

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-02170iZRE210..D..GEN201908-202306

BRUNEI SPEC

main51107-02180iZWE211..V..(PHL,TH)202306-202410

main51107-47010iZWE211..GCC202305

main51107-47020iZWE211..TAIW;MZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X202304

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-02170iZRE210..6F201908-202112

main51108-02180iZWE211..V..(PHL,TH)202306-202410

main51108-47010iZWE211..GCC201904-202305

main51108-47020iMZEA1#,ZRE210..GCC201904-202305

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02251iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main51201-02261iMZEA1#,ZRE210,ZWE211..GCC201904-202305

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02110iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202003

main51206-02111iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202004-202306

main51206-02120iZWE211..GCC,TAIW;MZEA11,12,ZRE210..N,X202304

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-02070×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main51228-F4020×2iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-02010iZWE211..E;ZWE211..MA201908-202112

main51618-02020iZWE211..GCC202305

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

90119T0406

main90119-T0406

90119T0534

main90119-T0534

90119T0569

main90119-T0569

9017816008

main90178-16008

90178T0091

main90178-T0091

91673B1030

main91673-B1030

17 parts on this diagram · 2 diagrams in section
