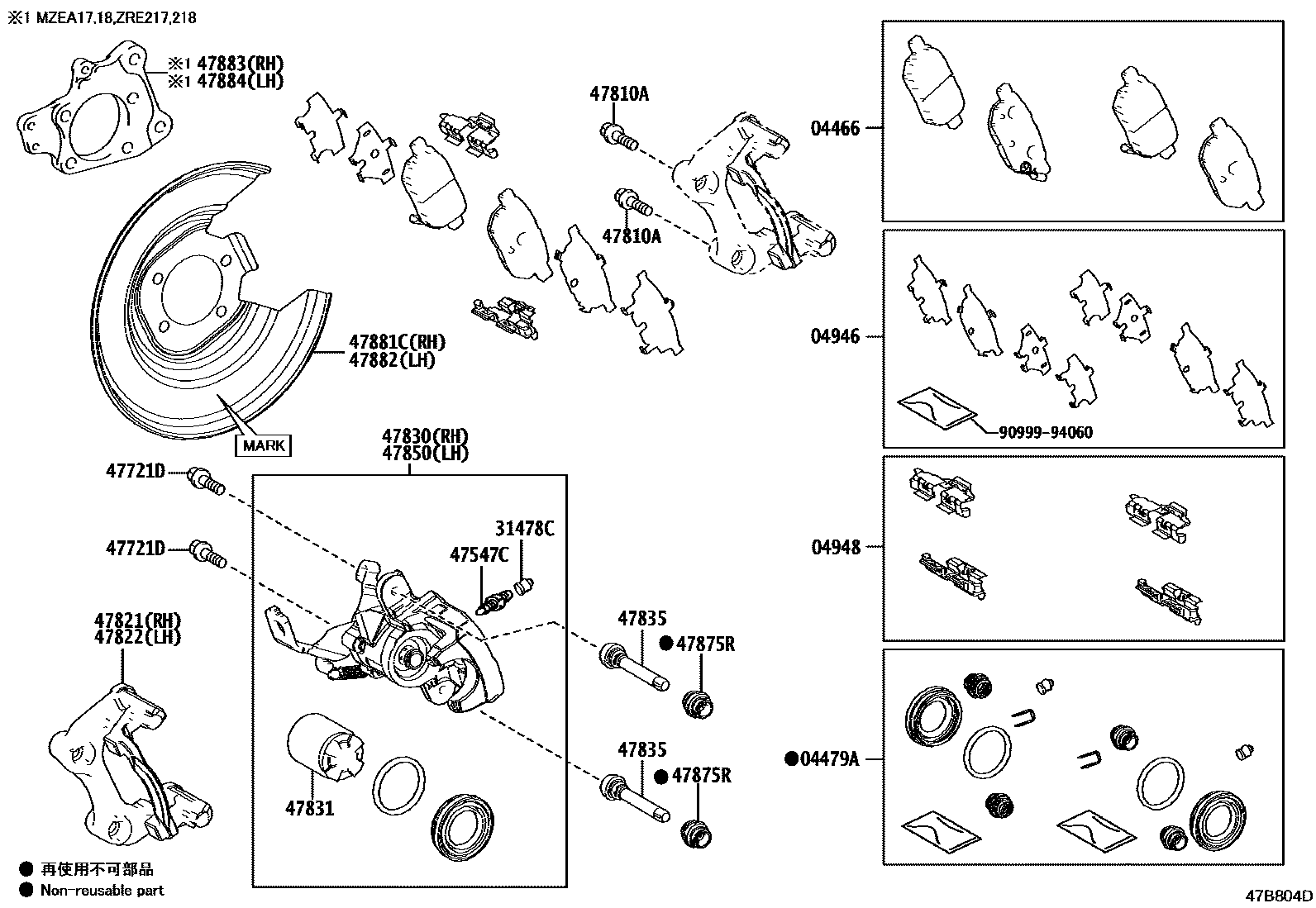

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1ADVICS 0003 1BOSCH

04466PAD KIT, DISC BRAKE, REAR

main04466-02440iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

MARK NBK D6360

main04466-12162iZRE211..E..MA201908-202410

MARK NBK D6360-FF

main04466-12162iZRE211..E..MA201908-202306

MARK NBK D6360-FF, UP GRADE PACKAGE

main04466-12162iZRE211..E..MA201908-202306

MARK NBK D6360-FF,BRUNEI SPEC

main04466-12162iZRE211..E..MA201908-202306

MARK NBK D6360-FF,BRUNEI SPEC& UP GRADE PACKAGE

main04466-12162iZRE211..E..MA202306

MARK NBK D6360-FF,UP GRADE PACKAGE

main04466-12162iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

MARK NBK D6360-FF,X PACKAGE

main04466-47110iZRE211..TAIW201904-202405

MARK NBK 478-XW5P

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02460iZRE210..G;ZRE211..(D,E)..(MA,PHL)201908-202306

main04479-10091iZRE211..IDN,TH,VN;ZRE211..X..(MA,PHL);ZWE211..(G,X)..(PHL,TH);ZRE210,ZWE211..(D,E,N,V,X)..(GEN,IDN,SGP,VN)201908-202306

UP GRADE PACKAGE

main04479-10091iZWE211..E;ZWE211..MA201908-202112

main04479-10091iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC

main04479-10091iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main04479-10091iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main04479-12260iZRE211,ZWE211..TAIW201904-202405

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02170iZRE210..6F201908-202306

main04946-12130iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main04946-12130iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main04946-12130iZRE211..E..MA201908-202306

BRUNEI SPEC

main04946-12130iZWE211..E;ZWE211..MA201908-202112

main04946-12130iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main04946-47070iZRE211..TAIW201904-202405

04948FITTING KIT, DISC BRAKE, REAR

main04948-02160iZRE210..G;ZRE211..(D,E)..(MA,PHL)201908-202306

main04948-12060iZRE211,ZWE211..TAIW201904-202405

main04948-12071iZRE211..E..MA201908-202306

BRUNEI SPEC

main04948-12071iZWE211..E;ZWE211..MA201908-202112

main04948-12071iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main04948-12071iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main04948-12071iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main31478-30010iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main31478-30010iZRE211..E..MA201908-202306

BRUNEI SPEC

main31478-30010iZWE211..E;ZWE211..MA201908-202112

main31478-30010iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main31478-52010iZRE211,ZWE211..TAIW201904-202405

main90069-39001iZRE210..6F201908-202306

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZRE210,211..(E,G)..(MA,SGP)201908-202306

UP GRADE PACKAGE

main47547-20010iZWE211..E;ZWE211..MA201908-202112

main47547-20010iZRE210,211..(E,G)..(MA,SGP)201908-202306

BRUNEI SPEC

main47547-20010iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47547-20010iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47847-52050iZRE211..TAIW201904-202405

main90069-39000iZRE210..6F201908-202306

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47715-05060iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

sub47715-28060

main90015-AA102iZRE211,ZWE211..TAIW201904-202405

main90015-AA603iZRE211..E..MA201908-202306

*8-1.00PX23-12.5,BRUNEI SPEC& UP GRADE PACKAGE

sub90016-AA614

main90015-AA603iZWE211..E;ZWE211..MA201908-202410

*8-1.00PX23-12.5

sub90016-AA614

main90015-AA603iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

*8-1.00PX23-12.5, UP GRADE PACKAGE

sub90016-AA614

main90015-AA603iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

*8-1.00PX23-12.5,BRUNEI SPEC

sub90016-AA614

main90015-AA603iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

*8-1.00PX23-12.5,X PACKAGE

sub90016-AA614

main90015-AA603iZRE211..IDN,TH,VN;ZRE211..X..(MA,PHL);ZWE211..(G,X)..(PHL,TH);ZRE210,ZWE211..(D,E,N,V,X)..(GEN,IDN,SGP,VN)202306

*8-1.00PX23-12.5,UP GRADE PACKAGE

sub90016-AA614

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(J)

main90105-12174iZRE211,ZWE211..TAIW201904-202305

main90105-12208iMZEA17,18,ZRE217,218202304

(J)

main90105-T0186iMZEA17,18,ZRE217,218202304

(L)

main90105-T0379iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09120iZRE210..6F201908-202306

main47821-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main47821-12280iZWE211..E;ZWE211..MA201908-202112

main47821-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC

main47821-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47821-12280iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47821-47110iZRE211..TAIW201904-202405

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iZRE211..TAIW201904-202405

main47822-09120iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

main47822-12280iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main47822-12280iZRE211..E..MA201908-202306

BRUNEI SPEC

main47822-12280iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47822-12280iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47822-12280iZWE211..E;ZWE211..MA201908-202112

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02380iZRE210..G;ZRE211..(D,E)..(MA,PHL)201908-202306

main47830-12280iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main47830-12280iZWE211..E;ZWE211..MA201908-202112

main47830-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC

main47830-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47830-12280iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47830-47111iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47831PISTON, REAR DISC BRAKE

main47831-10030iZRE210,211..(E,G)..(MA,SGP)201908-202306

BRUNEI SPEC

main47831-10030iZWE211..E;ZWE211..MA201908-202112

main47831-10030iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main47831-10030iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47831-10030iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47831-52050iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZRE211..TAIW201904-202405

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02370iZRE210..6F201908-202306

main47850-12280iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47850-12280iZWE211..E;ZWE211..MA201908-202112

main47850-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main47850-12280iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BRUNEI SPEC

main47850-12280iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main47850-47111iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-02210iZRE211,ZWE211..TAIW201904-202405

main47881-02230iZRE211..E..MA201908-202306

BRUNEI SPEC

main47881-02230iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47881-02230iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

UP GRADE PACKAGE

main47881-02230iZWE211..E;ZWE211..MA201908-202410

main47881-02230iZRE211..MA202306-202409

X PACKAGE

main47881-02240iZRE210..6F201908-202306

main47881-02340iMZEA17,18,ZRE217,218202304

MARK=TR

main47881-12150iMZEA17,18,ZRE217,218202304

MARK=R

47882COVER, DISC BRAKE DUST, REAR LH

main47882-02210iZRE211,ZWE211..TAIW201904-202405

main47882-02230iZRE211..E..MA201908-202306

BRUNEI SPEC

main47882-02230iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main47882-02230iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main47882-02230iZRE211..MA202306-202409

X PACKAGE

main47882-02230iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main47882-02240iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

main47882-02340iMZEA17,18,ZRE217,218202304

MARK=TL

main47882-12150iMZEA17,18,ZRE217,218202304

MARK=L

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-02340iMZEA17,18,ZRE217,218202304

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-02340iMZEA17,18,ZRE217,218202304

9099994060

main90999-94060

20 parts on this diagram · 3 diagrams in section
