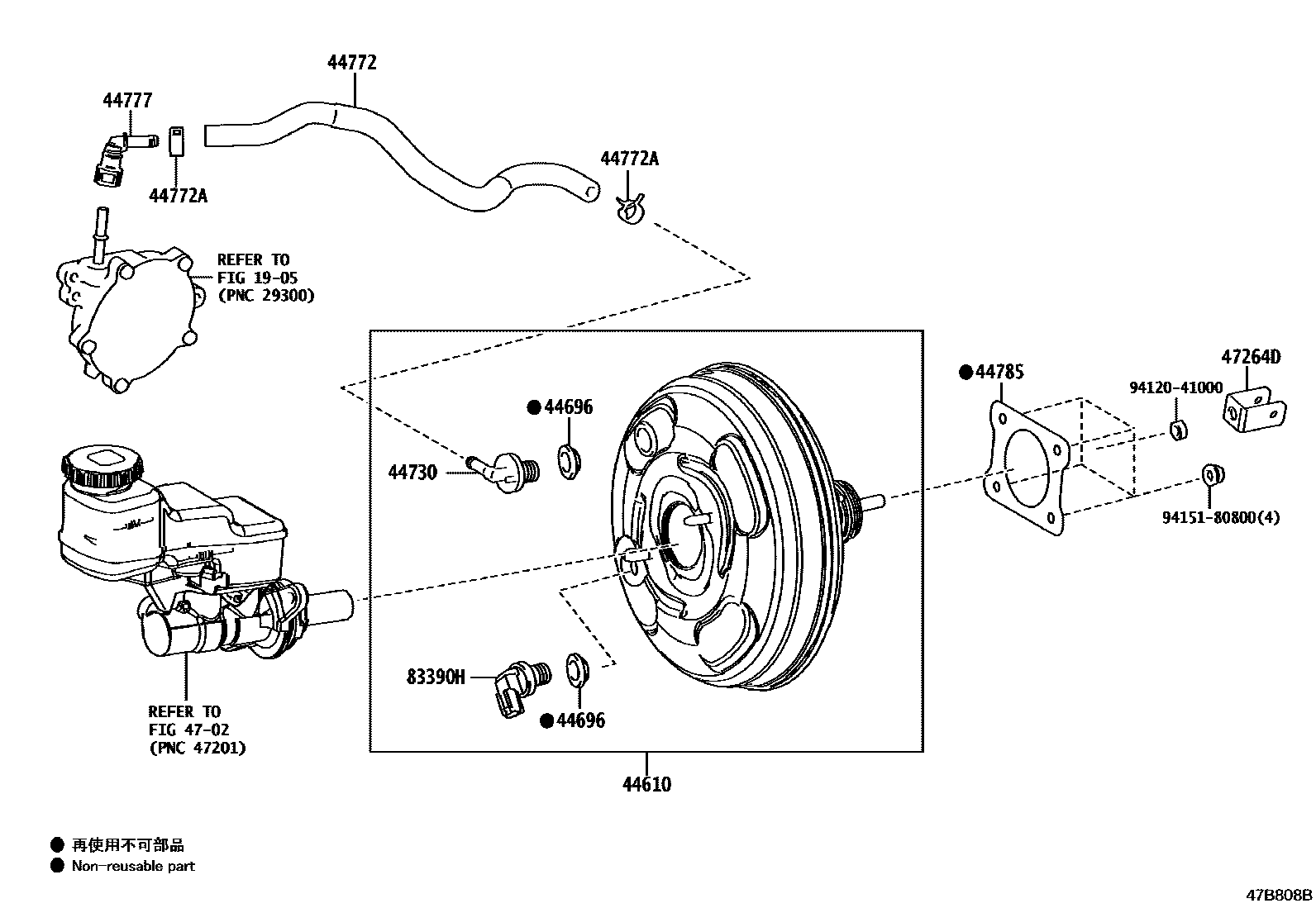

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1905

44610BOOSTER ASSY, BRAKE

main44610-02G30iZRE218202304

main44610-02G40iMZEA1#202305

main44610-02G50iZRE211..X..PHL;ZRE210,211..LHD..(GEN,VN)202306

main44610-02G60iZRE210..CVT..(D,G)..PHL201908-202306

main44610-02G70iZRE210..6F201908-202112

main44610-02G80iZRE211..E..MA201908-202306

UP GRADE PACKAGE

main44610-02G90iZRE211..E..MA;ZRE210..GEN,TH201908-202306

main44610-02J00iZRE210..SGP202306

main44610-02K40iZRE210,217..GCC202305

44696GROMMET, CHECK VALVE

main90480-24015×2iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,TH,VN202306

main90480-24439×3iZRE210,217..GCC202305

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010×2iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,TH,VN202306

main44730-52010iZRE211..TAIW202304-202405

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02210iMZEA12201904-202305

main44772-02220iZRE218202304

main44772-02240iZRE211..(D,X)..PHL;ZRE210,211..LHD..(GEN,VN)202306

main44772-02260iZRE210..6F201908-202112

main44772-02270iZRE210..SGP202306

main44772-02400iZRE210,217..GCC202305

main44772-02420iMZEA11,17202305

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019×2iZRE210..SGP202306

main90467-16014×2iZRE211..TAIW201904-202304

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA1#201904-202305

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE210..6F201904-202112

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02090iZRE210..6F201908-202112

main47264-02120iMZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X202304

main47264-02130iZRE211..G..PHL202306-202410

main47264-F4020iZRE210,211..RHD202306

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA1#;ZRE210..SGP202305

9412041000

main94120-41000

9415180800

main94151-80800

13 parts on this diagram · 7 diagrams in section
