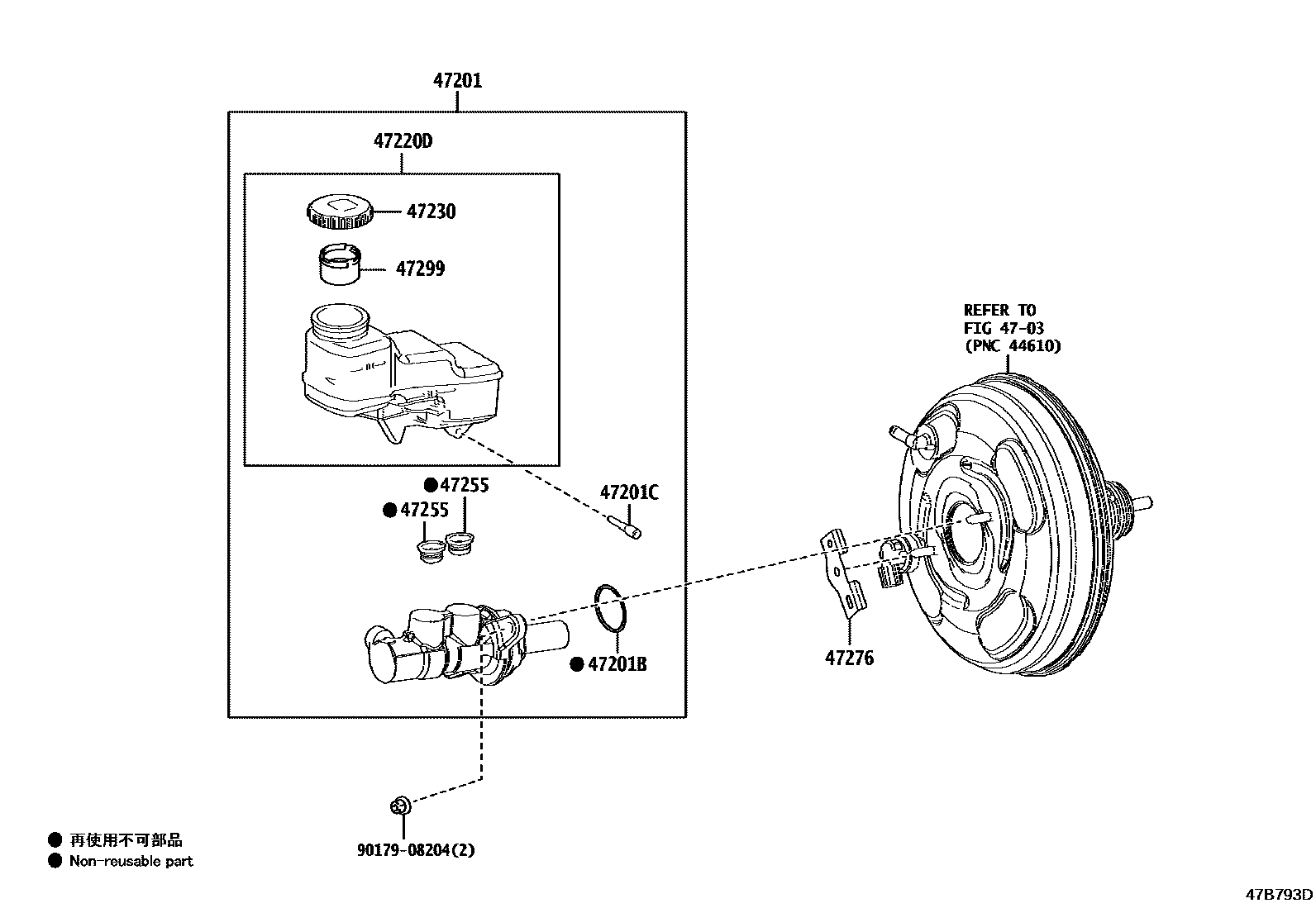

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02A20iMZEA1#,ZRE210..GCC201904-202405

main47201-02A30iZRE211..(D,X)..PHL;ZRE210,211..LHD..(GEN,VN)201908-202410

main47201-02A40iZRE210,211..RHD..(D,E,G)201908-202306

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main90015-AH002iMZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X201904-202405

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X201904-202405

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02380iZRE210,211..RHD201908-202306

main47220-02430iMZEA1#,ZRE210..GCC201904-202405

main47220-F4021iZRE210..6F201908-202410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZWE211202002-202006

sub47230-47090

main47230-47090iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);MZEA17,18,ZRE217,218,ZWE211..GCC,GEN,IDN,SGP,TAIW,VN201904-202410

main47230-F4010iZRE210..6F201908-202410

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main90029-48001iZRE211..TAIW201904-202405

sub90016-AT001

47276BRACKET, BRAKE MASTER CYLINDER

main47276-02020iMZEA17,18,ZRE217,218;MZEA11,12,ZRE210..N,X201904-202405

main47276-02030iZRE210..6F201908-202410

main47276-02040iZRE210,211..RHD201908-202306

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main47299-20060iZRE211..TAIW201904-202405

9017908204

main90179-08204

10 parts on this diagram · 5 diagrams in section
