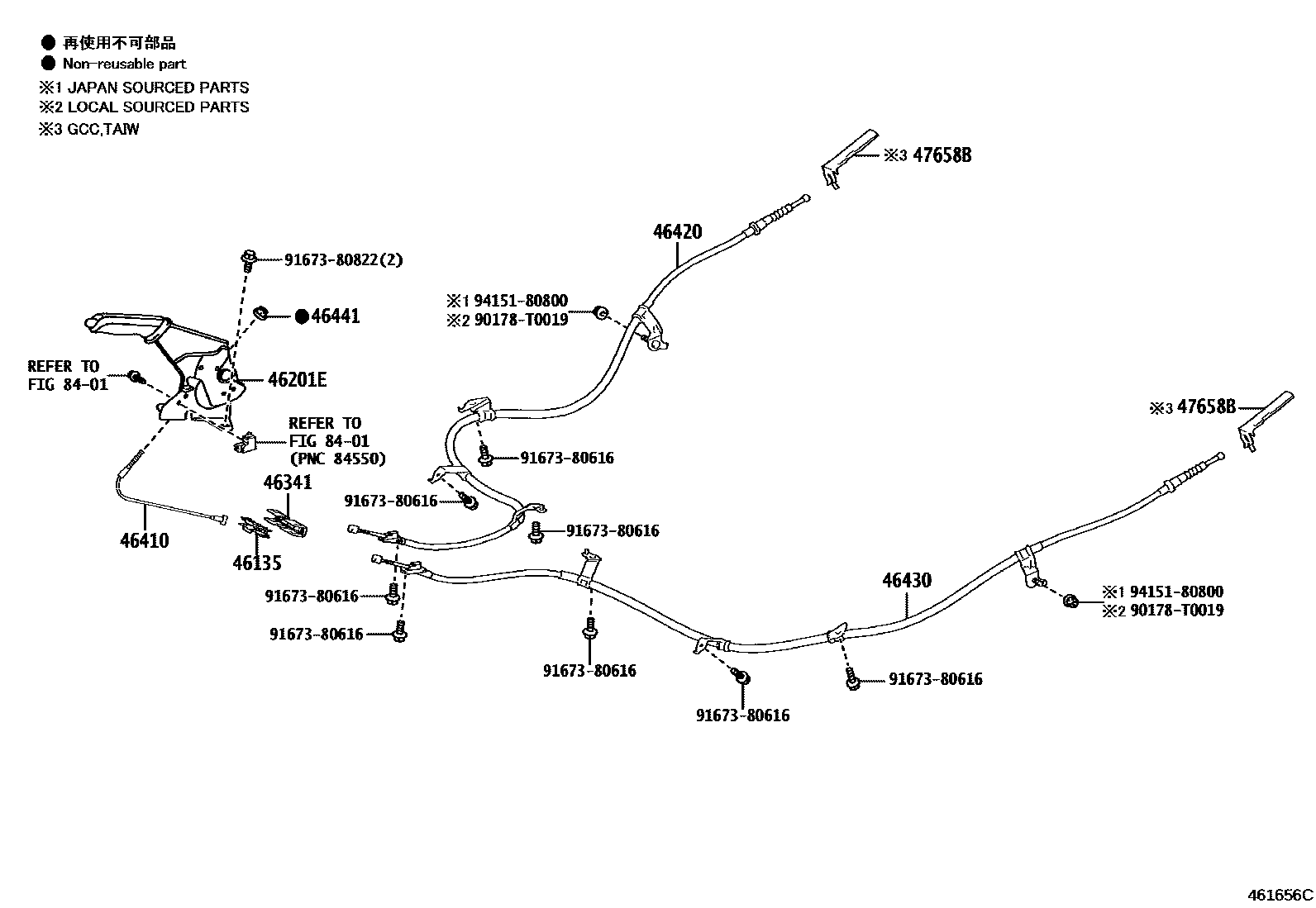

PARKING BRAKE & CABLE

0001 1PARKING BRAKE CABLE 0002 1PARKING BRAKE CABLE 0003 1ELECTRIC PARKING BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-02100iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

BRUNEI SPEC

main46135-02100iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

UP GRADE PACKAGE

main46135-02100iZRE210..6F201908-202112

main46135-02100iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main46135-12010iMZEA1#,ZRE210,ZWE211..GCC¥220201904-202405

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02560-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main46201-02560-C0iZRE211..E..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main46201-02560-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main46201-02560-C0iMZEA11,12,ZRE210,ZWE211..N..GCC202305

BLACK,TRIM0#

main46201-02560-C0iMZEA12,ZRE218..E,X202304

BLACK,TRIM2#

main46201-02560-C0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

BLACK,TRIM0#,1#

main46201-02560-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main46201-02580-C0iZRE210..E..PHL201908-202306

BLACK,TRIM0#,2#

main46201-02580-C0iZRE210..E..PHL201908-202306

BLACK,TRIM1#

main46201-02600-C0iZRE211..E..MA201908-202306

BRUNEI SPEC,BLACK,TRIM2#

main46201-02600-C0iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE,BLACK,TRIM2#

main46201-02600-C0iZRE211..E..MA201908-202306

BLACK,TRIM0#,2#

main46201-02600-C0iZRE211..E..MA201908-202306

BLACK,TRIM2#

main46201-02600-C0iZRE211..E..MA201908-202306

BLACK,TRIM0#,1#,2#

main46201-02600-C0iZRE211..E..MA201908-202306

UP GRADE PACKAGE,BLACK,TRIM2#

main46201-02600-C0iZRE210..SGP202306

UP GRADE PACKAGE,BLACK,TRIM0#,2#

main46201-02610-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main46201-02610-C0iZRE218..D;ZWE211..E202304

LOW GRADE PACKAGE,BLACK,TRIM2#

main46201-02610-C0iZWE211..TAIW201904-202304

BLACK,TRIM1#,2#

main46201-02610-C0iZWE211..TAIW201904-202304

LOW GRADE PACKAGE,BLACK,TRIM1#,2#

main46201-02610-C0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

BLACK,TRIM0#,1#

main46201-02610-C0iMZEA17,18,ZRE217,ZWE211..D202305

BLACK,TRIM0#

46341EQUALIZER, PARKING BRAKE

main46341-02120iZRE211..E..MA201908-202306

BRUNEI SPEC& UP GRADE PACKAGE

main46341-02120iZRE211..E..MA201908-202306

BRUNEI SPEC

main46341-02120iZRE210..6F201908-202112

main46341-02120iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306

UP GRADE PACKAGE

main46341-12040iZRE211..TAIW¥470201904-202405

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02250iZRE210..6F¥1,480201904-202405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02410iZRE211..TAIW201904-202405

main46420-02430iMZEA17,18,ZRE217,218202304

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02410iZRE211..E..MA;ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201904-202405

main46430-02430iMZEA17,18,ZRE217,218202304

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZRE211,ZWE211..TAIW¥80201904-202405

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iZRE211..TAIW¥510201904-202405

8401

90178T0019

main90178-T0019

9167380616

main91673-80616¥60

9167380822

main91673-80822¥80

9415180800

main94151-80800¥80

13 parts on this diagram · 3 diagrams in section
