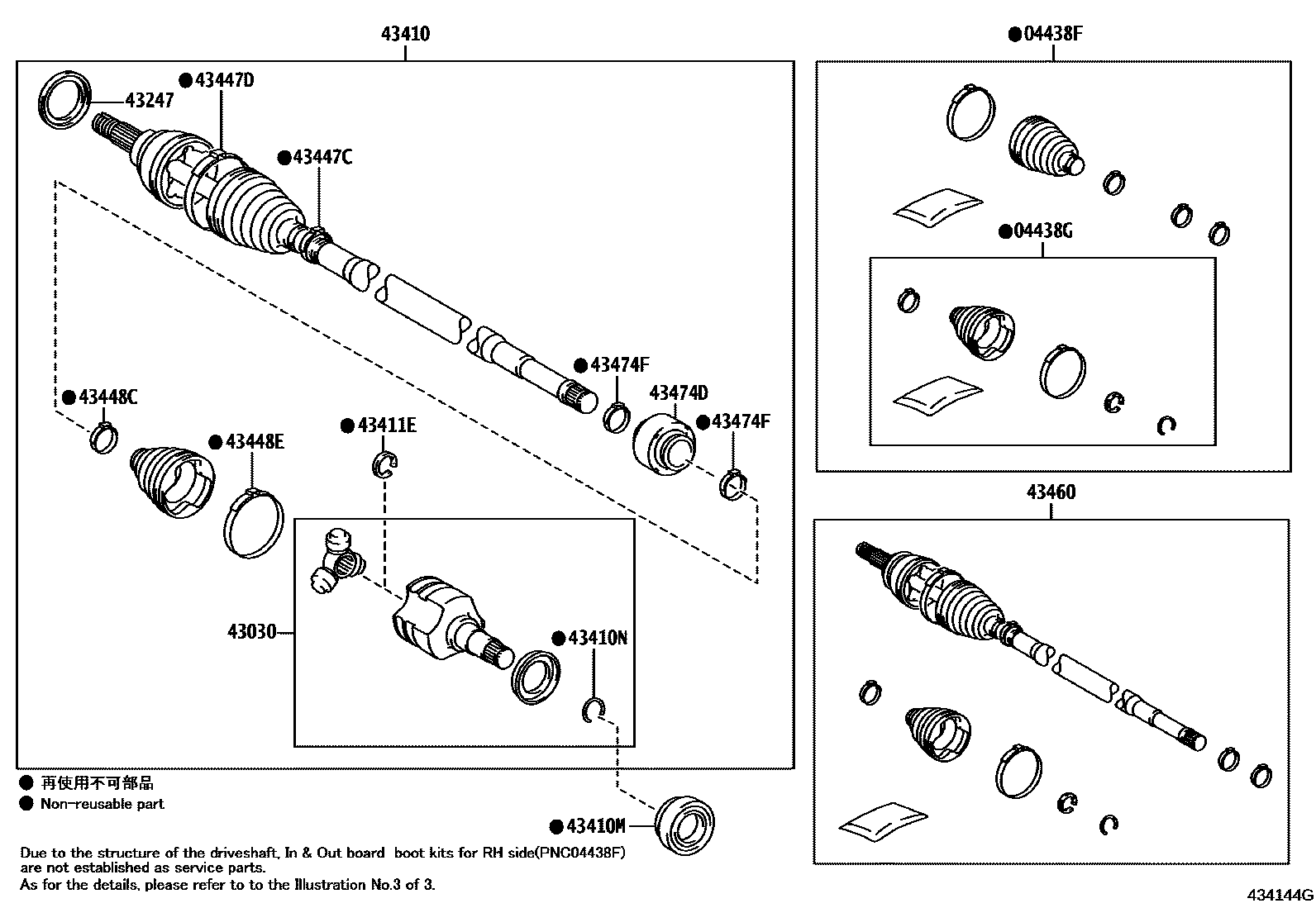

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH 0006 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02810iZRE210..N;ZRE217,218201904-202405

main04427-02A50iMZEA11202008-202305

main04427-0D411iZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202207

sub04427-0D412

main04427-0D412iZRE211..G..PHL202208-202410

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02750iMZEA12..N,X;MZEA18,ZWE211..GCC,TAIW201904-202305

main04437-02760iZRE210..N;ZRE217,218201904-202405

main04437-02880iMZEA11,17202008-202305

main04437-0D270iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main04437-0D390iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-02250iZWE211..V..(PHL,TH)202306-202410

main43040-02470iZWE211..GCC,TAIW201904-202305

main43040-02480iZRE210..N;ZRE217,218201904-202405

main43040-0D060iZRE211..G..PHL202306-202410

main43403-02130iMZEA12201904-202305

main43404-02060iMZEA11202008-202305

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main43247-76010iZRE211..TAIW201904-202405

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02C60iZWE211..E;ZWE211..MA201908-202410

main43410-02C71iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main43410-02C80iMZEA12,18201904-202305

main43410-02C90iZWE211..TAIW201904-202305

main43410-02D00iZRE211..TAIW201904-202405

main43410-02F01iMZEA11,17202008-202305

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065iZRE210..6F201908-202112

main90311-35076iZRE211..TAIW201904-202410

main90311-35083iMZEA11,17202008-202305

main90311-40038iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201904-202410

main90311-40047iMZEA12,18201904-202305

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02470iZRE211..TAIW201904-202405

main43425-02610iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

main43425-02710iMZEA12..N,X;MZEA18,ZWE211..GCC,TAIW201904-202305

main43425-0D440iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02620iZWE211..TAIW201904-202305

main43425-0D420iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main43425-0D450iMZEA11,ZRE210..N;MZEA17,ZRE217,218201904-202405

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02890iMZEA11,ZRE210..GCC201904-202405

main42345-0DB10iZRE210..6F201908-202410

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02A00iMZEA11,ZRE210..GCC201904-202405

main42345-0DB30iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02G60iZWE211..TAIW201904-202305

main42345-0D670iMZEA11,ZRE210..GCC201904-202405

main42345-0DB10iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02D50iMZEA12..N,X;MZEA18,ZWE211..GCC,TAIW201904-202305

main42345-02D80iZRE211..TAIW201904-202405

main42345-0DB00iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-8Z005iZWE211..TAIW201904-202305

main43460-8Z006iZRE211..TAIW201904-202405

main43460-8Z012iMZEA11202008-202305

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02440iMZEA11,ZRE210..N;MZEA17,ZRE217,218201904-202405

main43474-02590iZWE211..E;ZWE211..MA201908-202410

main43474-02650iZRE211..(D,X)..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main43474-02720iMZEA12,ZWE211..GCC201904-202305

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02B60iMZEA11,ZRE210..GCC201904-202405

main42345-02D40iZWE211..TAIW201904-202305

main42345-02E10iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)201908-202410

main42345-0DA50iZRE210..6F201908-202410

15 parts on this diagram · 6 diagrams in section
