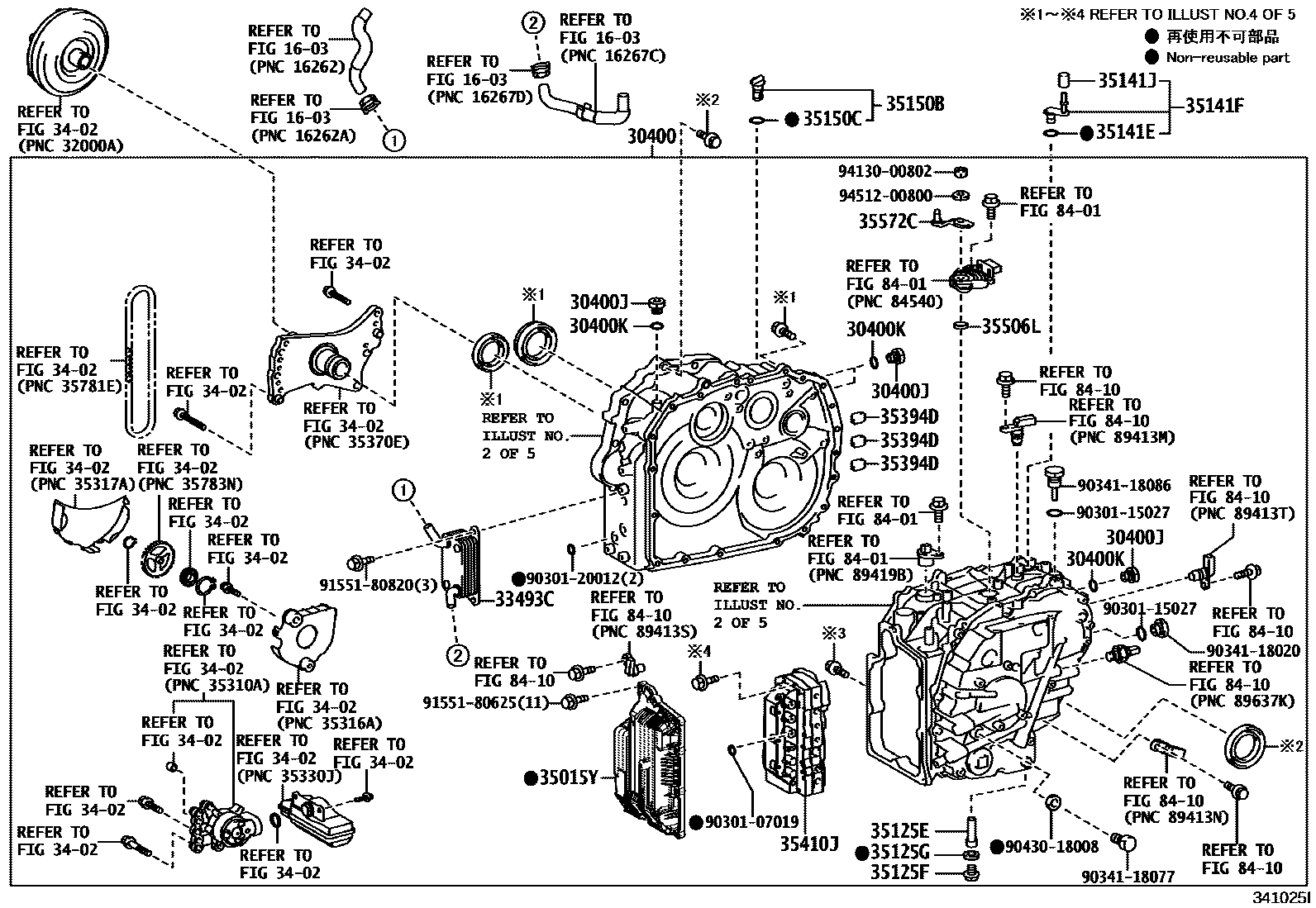

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120 0006 1K313 0007 1K313 0008 1K313 0009 1K313 0010 1K320 0011 1K320 0012 1K320 0013 1K320 0014 1K320

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12320iMZEA11202008-202305

K320

main30400-12530iMZEA12,18202305

K120

main30400-12710iZRE211..G..PHL202304-202410

K313

main30400-12720iZRE210..GCC201904-202305

K313

main30400-12760iMZEA12201904-202106

K120

main30400-12780iMZEA11,17202311

K320

30400JPLUG, TRANSAXLE HOLE

main90341-08001×8iZRE211..TAIW201904-202304

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196×8iZRE211..TAIW201904-202304

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZEA12201904-202305

main33493-12100iMZEA11,17202305

main33493-20100iZRE210..GCC201904-202305

main33493-52040iZRE211..(D,X)..PHL;ZRE211..IDN,MA,TH,VN;ZRE210,218..GEN,SGP,TAIW,TH202304

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12020iMZEA12201904-202205

main35015-33010iMZEA12,18202305

35125ETUBE, OVERFLOW(CVT)

main35125-12440iZRE211..G..PHL202304-202410

main35125-12490iMZEA11,17202305

main35125-12500iMZEA12201904-202305

main35125-K0010iMZEA11202008-202104

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE211..G..PHL202304-202410

main90341-18016iMZEA1#202305

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE210..GCC201904-202305

main90430-18008iMZEA1#202305

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iZRE210..GCC201904-202305

main90301-09173iMZEA12201904-202305

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZRE211..G..PHL202304-202410

main90930-03233iMZEA11202008-202305

main90930-03240iMZEA12,18202305

main90930-9U001iMZEA11,17202311

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

main90930-03243iMZEA12,18202305

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMZEA1#201904-202305

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iZRE21#..CVT201904-202101

main35394-48010×3iMZEA11,12,ZRE210..N,X;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iZRE210..N;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

main35410-12A30iMZEA12201904-202006

sub35410-K0010

main35410-52290iMZEA1#202006-202305

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZRE211..G..PHL202304-202410

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZRE211..G..PHL202304-202410

main35572-12190iMZEA1#201904-202305

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118077

main90341-18077

9034118086

main90341-18086

9043018008

main90430-18008

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 14 diagrams in section
