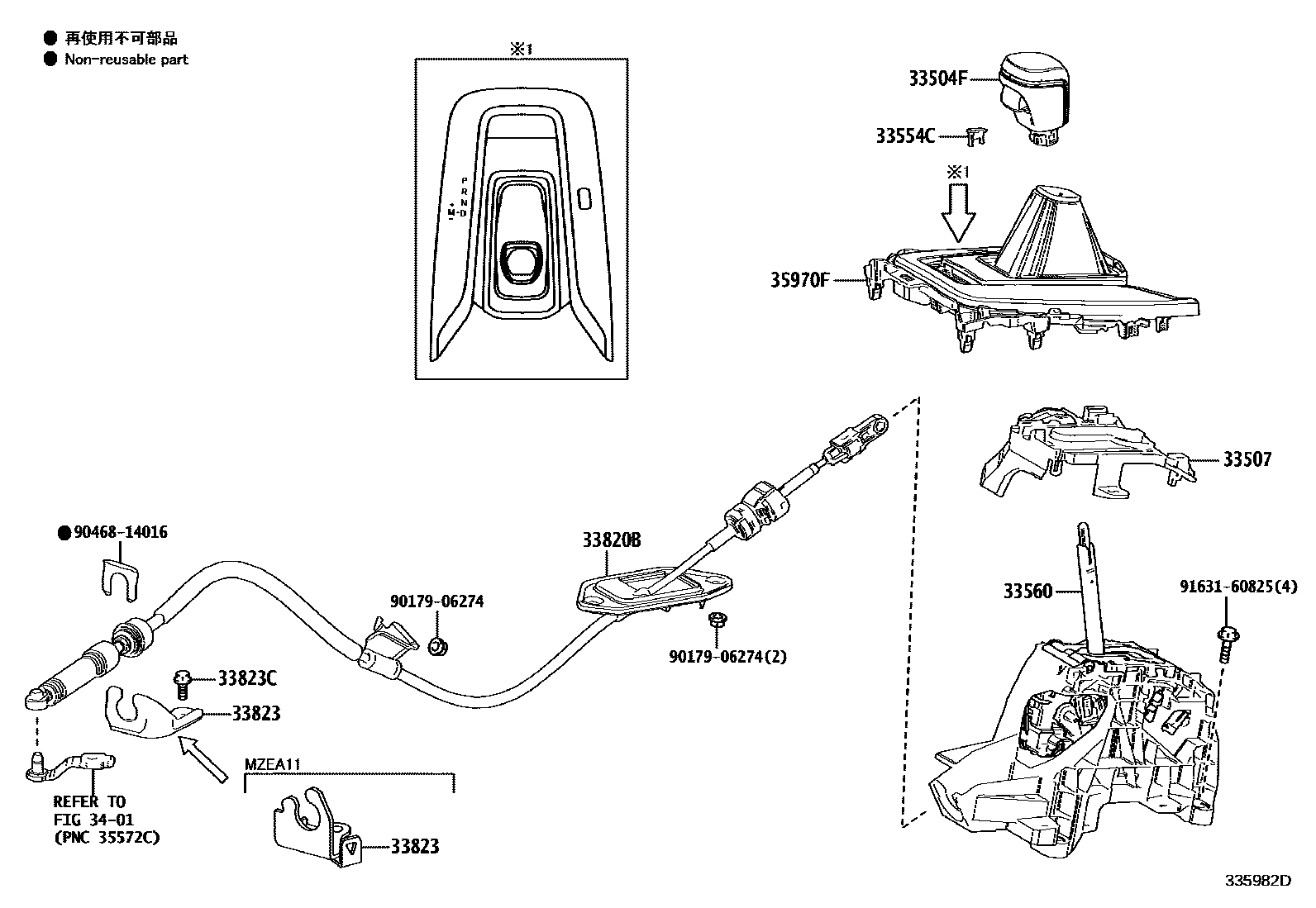

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02730-C0iZRE211..IDN201908-202306

BLACK,TRIM2#

main33504-02860-C0supersedes 33504-02730-C0iZRE211..IDN201908-202306

BLACK,TRIM0#,2#

main33504-12760-C0iZRE210..E..PHL201908-202112

BLACK,TRIM0#,2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-02040iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)201908-202306

main33507-02050iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main33507-12030iZRE210,211,ZWE211..CVT..(PHL,VN)201908-202306

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33502-02170iZRE211,ZWE211..TAIW201904-202304

main33502-02180iZRE211..(D,X)..PHL;ZRE210,211..LHD..(GEN,VN)202306

main33554-02160iZRE210,211,ZWE211..CVT..(PHL,VN)201908-202306

main33554-02170iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)201908-202306

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-02530iZWE211..E201908-202112

main33560-02540iMZEA17,18,ZRE217,218..D202304

main33560-02550supersedes 33560-02540iMZEA1#,ZRE210..N201904-202305

main33560-02570supersedes 33560-02560iZWE211..TAIW201904-202304

main33560-12640iZRE211..D202306

main33560-12650iZRE211..X..PHL;ZRE210,211..LHD..(GEN,VN)202306

main33560-12670iZWE211..PHL,VN201908-202306

main33560-F4070iZRE210..D202306

main33560-F4080iZRE210,211..RHD..(E,G)201908-202306

main33560-F4090iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02B20iZRE211..G..PHL202304-202410

main33820-02B30iZWE211..GCC201904-202305

main33820-02B40iZRE210..6F201908-202112

main33820-02B50iMZEA12,18202305

main33820-02D30iMZEA11,17202305

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02350iMZEA12201904-202305

main33823-02360iZRE210..N;ZRE217,218202304

main33823-02370iZWE211..GCC201904-202305

main33823-02450iMZEA11202008-202305

main33823-10030iZWE211..V..(PHL,TH)202306-202410

(J)

main33823-F4020iZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main33823-F4070iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)202306

(L)

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iZWE211..E;ZWE211..MA201908-202112

(J)

main90119-08C60×3iZRE210..6F201908-202112

main90119-T0102×2iZWE211..E;ZWE211..MA201908-202112

(L)

main91671-80820×2iMZEA1#201904-202305

3401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-02180-C1iZRE210,211..CVT..(E,G,V)..(PHL,VN)201908-202306

BLACK,TRIM0#,2#

main35970-02180-C4iZRE211..LHD..X202411

BLACK/SMOKE SILVER/GR RED,TRIM2#

main35970-02190-C1iZWE211..PHL,VN201908-202306

BLACK,TRIM0#,2#

main35970-02190-C3iZWE211..X..PHL202411

BLACK/SMOKE SILVER/GR RED,TRIM2#

main35970-02200-C1iZRE210..RHD201908-202306

BLACK,TRIM0#,2#

main35970-02200-C5iZRE211..X..MA202411

BLACK/SMOKE SILVER/GR RED,TRIM2#

main35970-02210-C1iZWE211..G;ZWE211..V..IDN202306

BLACK,TRIM0#,2#

main35970-02210-C4iZWE211..RHD..X202411

BLACK/SMOKE SILVER/GR RED,TRIM2#

main35970-02360-C1iMZEA1#,ZRE210..N201904-202305

BLACK/SILVER,TRIM0#,1#

main35970-02360-C4iMZEA12..TAIW202405

BLACK/SMOKE SILVER/GR RED,TRIM2#

main35970-02370-C1iZWE211..N..GCC201904-202305

BLACK/SILVER,TRIM0#,1#

main35970-02380-C0iMZEA17,18,ZRE217202305

BLACK/BLACK,TRIM0#

main35970-02390-C1iZWE211..D201904-202305

BLACK/BLACK,TRIM0#,1#

main35970-02490-C1supersedes 35970-02360-C3iZRE211..G..TAIW202004-202304

X PACKAGE,BLACK/DK.CRIMSON,TRIM3#

main35970-02520-C1iZWE211..V..TAIW202304-202405

X PACKAGE,BLACK/DK.CRIMSON,TRIM3#

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

12 parts on this diagram · 6 diagrams in section
