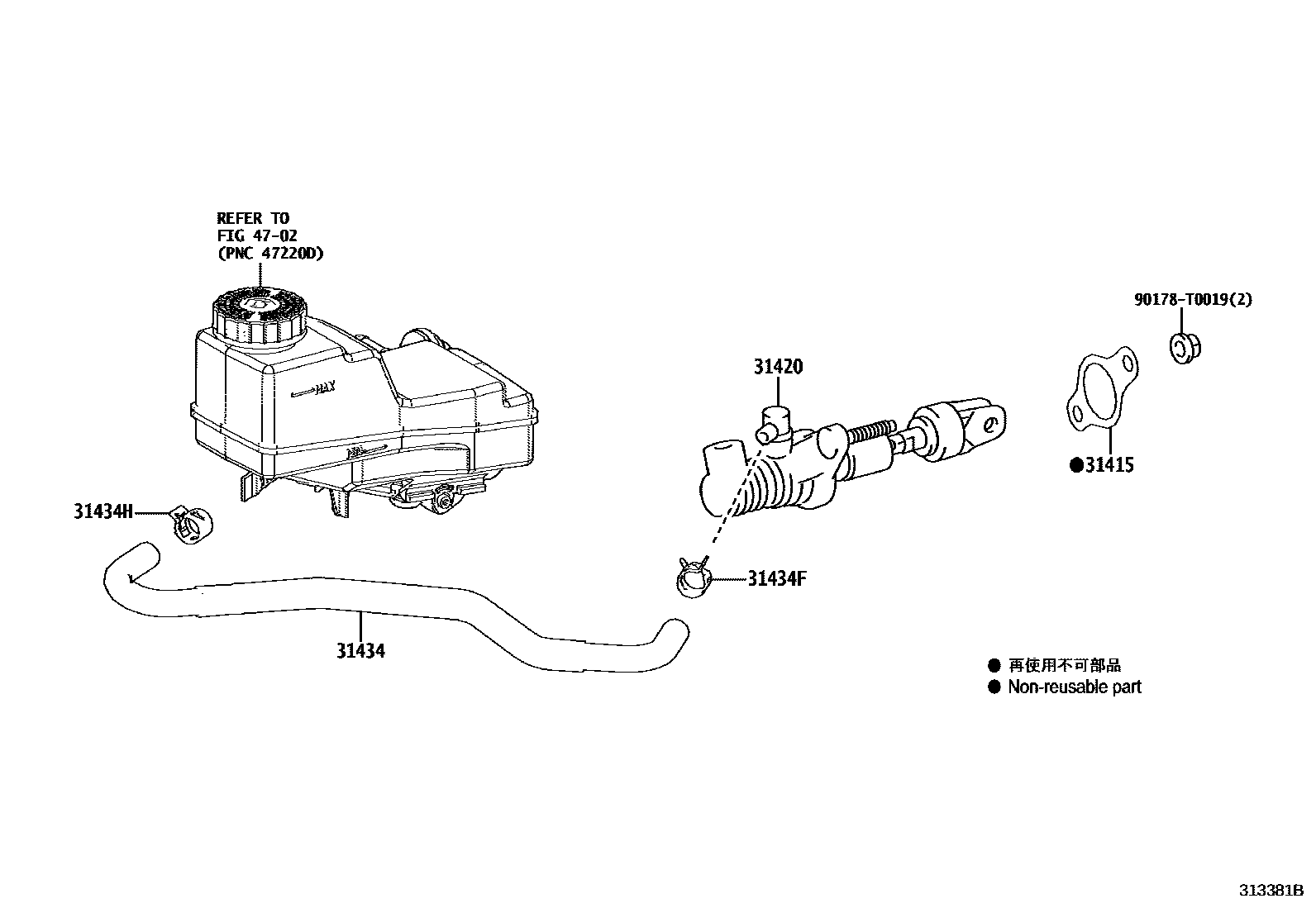

CLUTCH MASTER CYLINDER

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iZRE210..6F201908-202112

31420CYLINDER ASSY, MASTER W/O RESERVOIR

main31420-02110iZRE210..6F201908-202112

31434TUBE, CLUTCH RESERVOIR

main31434-02100iZRE210..6F201908-202112

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iZRE210..6F201908-202112

31434HCLIP(FOR CLUTCH RESERVOIR HOSE NO.2)

main90466-T0059iZRE210..6F201908-202112

4702

90178T0019

main90178-T0019

7 parts on this diagram · 1 diagram in section
