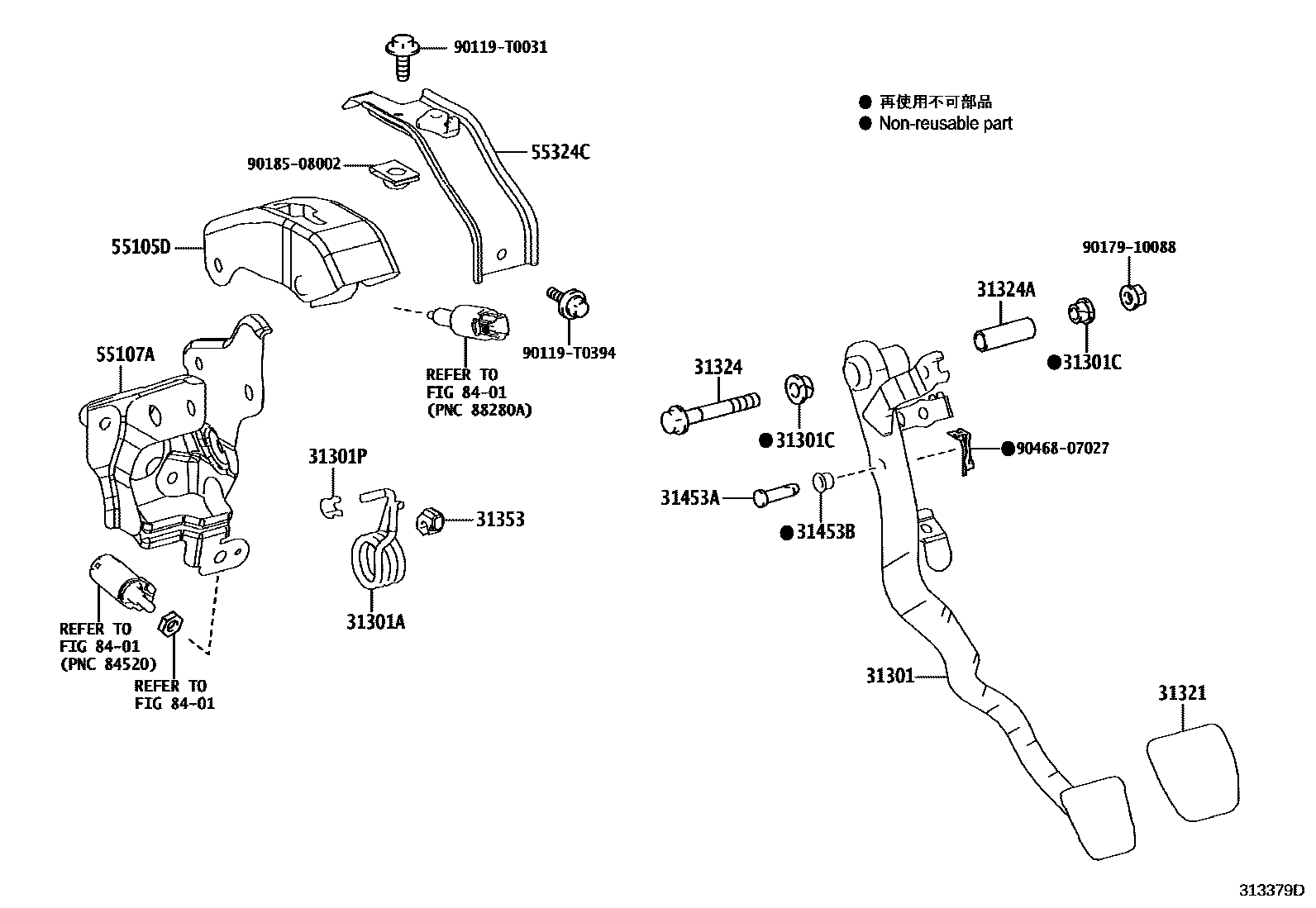

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02610iZRE210..6F201908-202112

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03068iZRE210..6F201908-202112

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZRE210..6F201908-202112

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZRE210..6F201908-202112

31321PAD, CLUTCH PEDAL

main31321-42010iZRE210..6F201908-202112

31324SHAFT, CLUTCH PEDAL

main90105-10524iZRE210..6F201908-202112

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZRE210..6F201908-202112

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iZRE210..6F201908-202112

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08078iZRE210..6F201908-202112

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE210..6F201908-202112

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-02100iZRE210..6F201908-202112

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02520iZRE210..6F201908-202112

55324CBRACKET, INSTRUMENT PANEL, NO.4

main55324-12260iZRE210..6F201908-202112

8401

90119T0031

main90119-T0031

90119T0394

main90119-T0394

9017910088

main90179-10088

9018508002

main90185-08002

9046807027

main90468-07027

19 parts on this diagram · 2 diagrams in section
