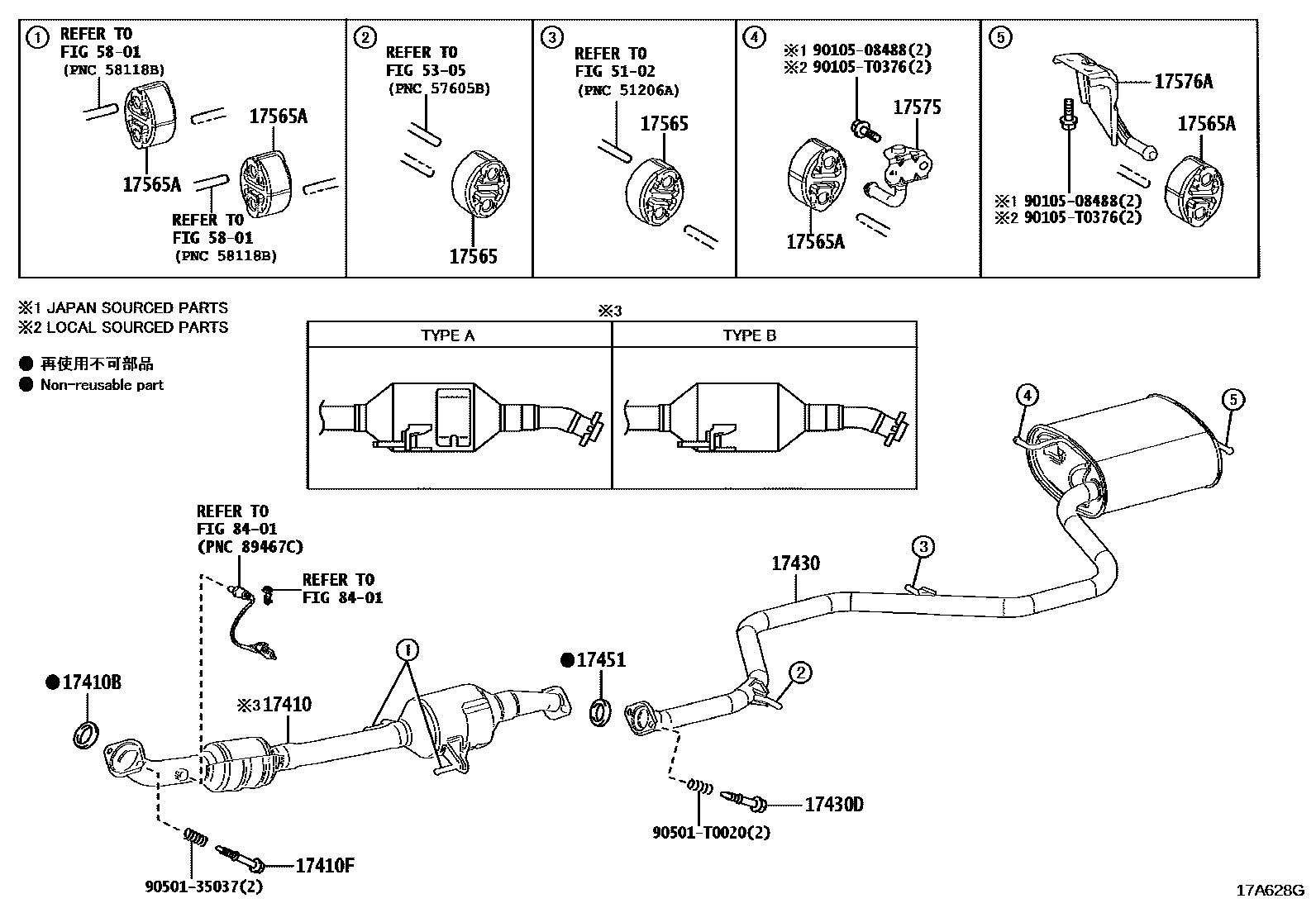

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TE00i2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,MA,PHL,SGP201908-202109

sub17410-0TK90

main17410-0TE10i2ZRFXE..ZWE211..GCC,TAIW201904-202105

TYPE A:REFER ILLUST.

main17410-0TE11i2ZRFXE..ZWE211..GCC,TAIW202105-202209

TYPE B:REFER ILLUST.

main17410-0TE30i1ZRFBE,2ZRFBE..ZRE21#201908-202112

sub17410-0TK50

main17410-0TE40i1ZRFAE..ZRE210201908-202306

main17410-0TE70i1ZRFE,2ZRFE..ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL)201908-202110

sub17410-0TL00

main17410-0TE80i1ZRFE,2ZRFE..ZRE21#..GCC,TAIW201904-202209

main17410-0TE81i1ZRFE..ZRE210..GCC202212-202411

main17410-0TJ40i1ZRFE..ZRE217202305-202411

main17410-0TK50i1ZRFBE..ZRE210202201-202306

main17410-0TK60i2ZRFBE..ZRE211202201-202306

main17410-0TK90i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA202110-202411

main17410-0TL00i1ZRFE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL)202110-202411

main17410-0TL10i2ZRFXE..ZWE211..GCC,TAIW202209-202411

main17410-0TL20i1ZRFE..ZRE210..GCC202209-202405

main17410-0TL40i2ZRFE..ZRE218202304-202405

main17410-0TP00i2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH)202411

main17410-0TP10i2ZRFE..ZRE211..IDN;1ZRFE,2ZRFE..ZRE210,211..D,E,V,X202411

main17410-0TP20i2ZRFXE..ZWE211..GCC,TAIW202411

main17410-0TP40i1ZRFE..ZRE210..GCC202411

main17410-0TP60i1ZRFE..ZRE217202411

main17410-0TP70i2ZRFE..ZRE218202405

main17410-F2090iM20AFKS..MZEA12201904-202305

main17410-F2490iM20AFKS..MZEA18202305

main17410-F3070iM15AFKS..MZEA11202008-202411

main17410-F3080iM15AFKS..MZEA11202411

main17410-F3110iM15AFKS..MZEA17202305-202411

main17410-F3140iM15AFKS..MZEA17202411

17410BGASKET, EXHAUST PIPE

main17451-15010iM15AFKS..MZEA11¥1,450202008-202305

main17451-24010i2ZRFXE..ZWE211..TAIW¥1,360202105-202410

main17451-28040i2ZRFXE..ZWE211..(D,G,N,V)..(GCC,GEN,IDN,PHL,SGP,TAIW,TH)¥1,510201904-202311

sub17451-28041¥1,510

main17451-28041i2ZRFE..ZRE211..TAIW¥1,510202311-202410

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90109-10182i1ZR#,2ZR#..ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH¥190201904-202004

main90109-T0005i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)¥190202002-202410

main90901-05020iM15AFKS,M20AFKS,1ZRFE..MZEA11,12,ZRE210..N,X;M15AFKS,M20AFKS,1ZRFE,2ZRFE..MZEA17,18,ZRE217,218¥230202005-202405

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T560i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201908-202410

main17430-0T570i2ZRFXE..ZWE211..TAIW201904-202305

main17430-0T590i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main17430-0T600i2ZRFE..ZRE211..TAIW201904-202405

main17430-0T660i1ZRFE..ZRE210..GCC201904-202305

main17430-0T820i1ZRFE,2ZRFE..ZRE217,218202304

main17430-0T860i2ZRFXE..ZWE211..VN202403-202407

sub17430-0T861

main17430-0T861i2ZRFXE..ZWE211..VN202408

main17430-0T870i2ZRFBE..ZRE211..VN202403-202407

sub17430-0T871

main17430-0T871i2ZRFBE..ZRE211..VN202408

main17430-F2070iM20AFKS..MZEA12201904-202305

main17430-F2330iM20AFKS..MZEA18202305

main17430-F3060iM15AFKS..MZEA11202008-202305

main17430-F3120iM15AFKS..MZEA17202305

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90109-10183i1ZR#,2ZR#..ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH¥190201904-202004

main90109-T0016i2ZRFE..ZRE211..D,E,X;2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN202002-202410

main90109-T0016i2ZRFXE..ZWE211..GCC,TAIW202304

(L)

main90901-05026iM15AFKS,M20AFKS,1ZRFE..MZEA11,12,ZRE210..N,X;M15AFKS,M20AFKS,1ZRFE,2ZRFE..MZEA17,18,ZRE217,218¥310202304

(J)

main90901-05026i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW¥310202005-202405

17451GASKET, EXHAUST PIPE

main17451-0M032i2ZRFXE..ZWE211..(G,N,V)..(GEN,IDN,PHL,SGP,TH)201908-202410

main17451-23042iM20AFKS,1ZRFE..MZEA12,ZRE210..GCC¥790201904-202311

sub17451-23043¥720

main17451-23043i2ZRFE..ZRE211..TAIW¥720202311-202405

main17451-24020iM15AFKS..MZEA11¥720202008-202410

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P240i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main17565-28010i2ZRFE..ZRE211..TAIW¥670201904-202405

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D120iM15AFKS,M20AFKS,1ZRFE,2ZRFXE..MZEA1#,ZRE210,ZWE211..GCC201904-202405

main17565-0P110i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0T110i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main17575-0T140iM15AFKS,M20AFKS,1ZRFE..MZEA11,12,ZRE210..N,X;M15AFKS,M20AFKS,1ZRFE,2ZRFE,2ZRFXE..MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0T060i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main17576-0T090i2ZRFE..ZRE211..TAIW201904-202405

5102

5305

5801

8401

9010508488

main90105-08488¥80

90105T0376

main90105-T0376

9050135037

main90501-35037¥200

90501T0020

main90501-T0020

18 parts on this diagram · 7 diagrams in section
