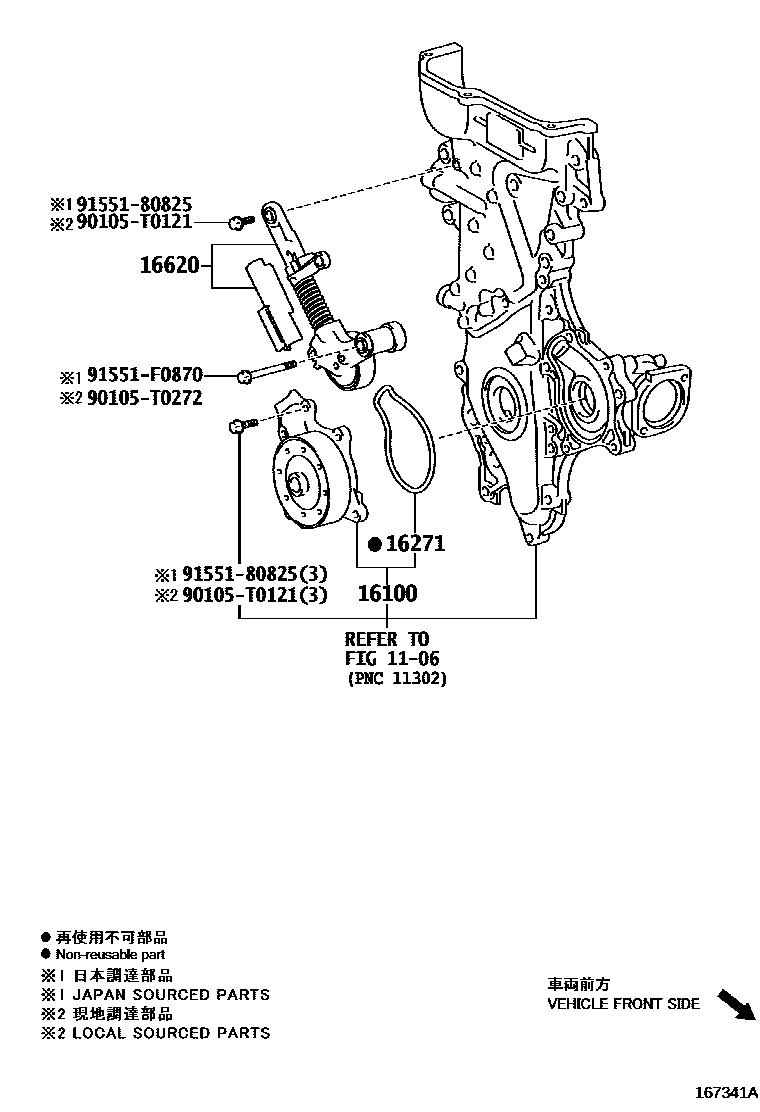

WATER PUMP

0001 1 0003 1 0005 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09740i2ZRFE..ZRE211..G..PHL201904-202410

(L)

main16100-39466i1ZRFAE..ZRE210201908-202306

main16100-39565i2ZRFE..ZRE211..TAIW201904-202410

(J)

main161A0-39035i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202410

16271GASKET, WATER PUMP

main16271-37010i1ZRFAE..ZRE210201908-202306

main16271-37020i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201904-202410

main16271-37030i2ZRFE..ZRE211..TAIW201904-202410

16620TENSIONER ASSY, V-RIBBED BELT

main16620-37030i2ZRFE..ZRE211..G..PHL201904-202410

main16620-37040i1ZRFE..ZRE210..GCC202002-202306

90105T0121

main90105-T0121

90105T0272

main90105-T0272

9155180825

main91551-80825

91551F0870

main91551-F0870

8 parts on this diagram · 3 diagrams in section
