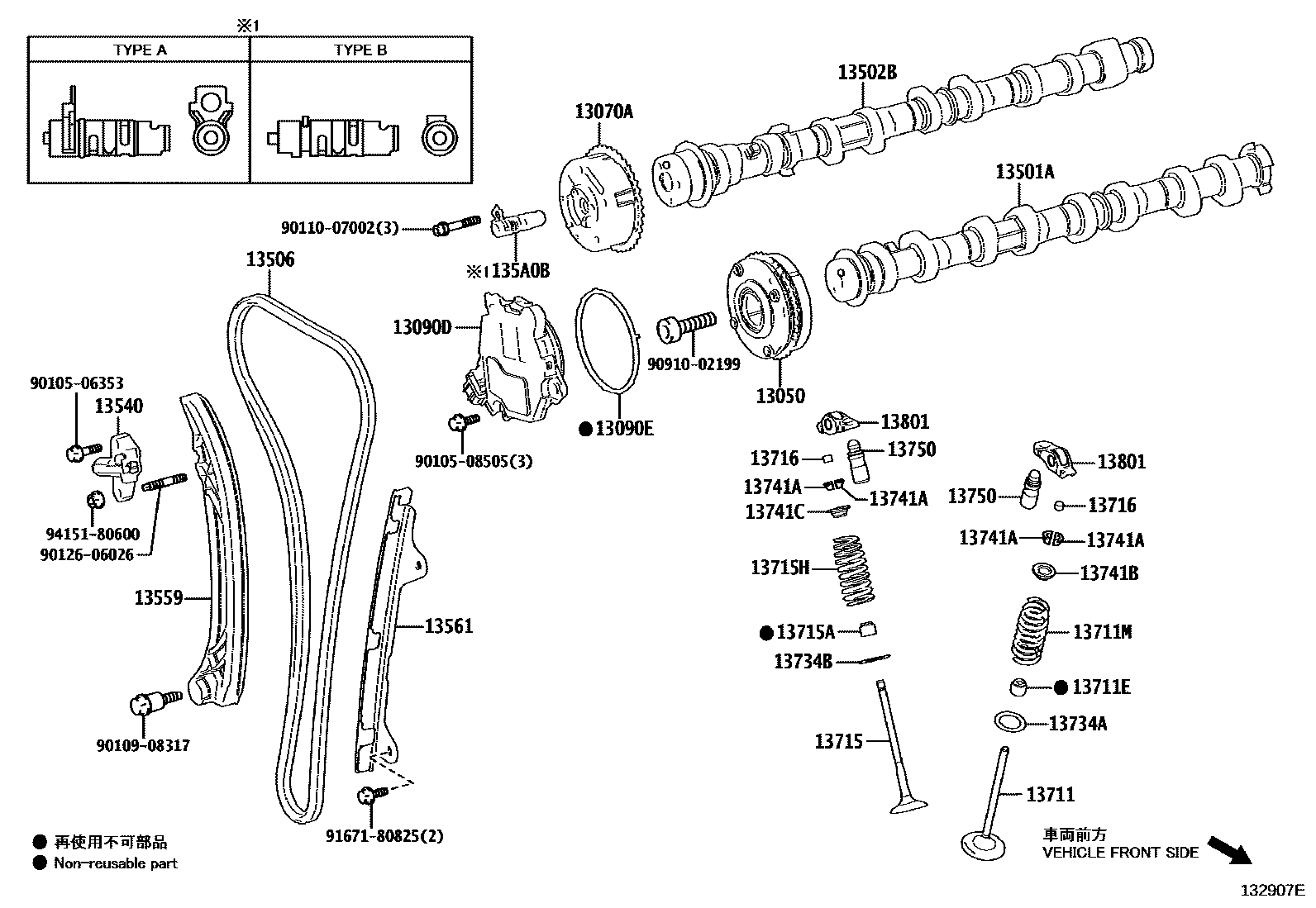

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0005 1 0007 1

13050GEAR ASSY, CAMSHAFT TIMING

main13050-15010iM15AFKS..MZEA11,17202305

main13050-25010iM20AFKS..MZEA12201904-202305

main13050-37040i1ZRFAE..ZRE210201908-202306

main13050-37050i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201904-202306

main13050-37060i1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0T090i2ZRFE..ZRE211..G..PHL202304-202410

(L)

main13070-25020iM20AFKS..MZEA12201904-202007

PNC 135A0B=TYPE A

main13070-25030iM15AFKS,M20AFKS..MZEA1#202007-202305

PNC 135A0B=TYPE B

main13070-37010i1ZRFAE..ZRE210201908-202306

main13070-37020i2ZRFE..ZRE211..TAIW202304-202405

(J)

13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU

main13090-25010iM20AFKS..MZEA12201904-202305

13090ERING, O(FOR CAM TIMING CONTROL MOTOR)

main90301-92005iM20AFKS..MZEA12201904-202305

13501ACAMSHAFT SUB-ASSY, INTAKE

main13501-15060iM15AFKS..MZEA11202008-202305

main13501-24020iM20AFKS..MZEA12201904-202305

13502BCAMSHAFT SUB-ASSY, EXHAUST

main13502-15060iM15AFKS..MZEA11,17202305

main13502-24010iM20AFKS..MZEA12,18202305

13506CHAIN SUB-ASSY

main13506-0T130i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(L)

main13506-24020iM15AFKS,M20AFKS..MZEA1#201904-202305

main13506-37050i1ZRFAE..ZRE210202306

main13506-37070i2ZRFE..ZRE211..TAIW202304-202405

(J)

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0T040i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC201904-202305

(L)

main13540-15010iM15AFKS..MZEA11,17202305

main13540-25020iM20AFKS..MZEA12,18202305

main13540-37030i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(J)

13559SLIPPER, CHAIN TENSIONER

main13559-0T050i2ZRFE..ZRE211..TAIW202304-202405

(L)

main13559-15010iM15AFKS..MZEA11202008-202305

main13559-24010iM20AFKS..MZEA12,18202305

main13559-37050i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

(J)

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0T060i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

(L)

main13561-15010iM15AFKS,M20AFKS..MZEA1#201908-202305

main13561-24020iM20AFKS..MZEA12201904-201907

main13561-37050i1ZRFE..ZRE210..N;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..G202304

(J)

main13561-37060i1ZRFAE..ZRE210201908-202306

135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)

main135A0-31020iM15AFKS..MZEA11,17202305

135A0BVALVE ASSY, CAMSHAFT TIMING

main135A0-25010iM20AFKS..MZEA12201904-202007

TYPE A:REFER ILLUST.

main135A0-25020iM20AFKS..MZEA12202007-202305

TYPE B:REFER ILLUST.

main135A0-70020iM15AFKS..MZEA11202008-202305

TYPE B:REFER ILLUST.

13711VALVE, INTAKE

main13711-0T020×8i1ZRFE,2ZRFE,2ZRFXE..ZRE21#,ZWE211201904-201910

(L)

main13711-0T050×8i2ZRFXE..ZWE211..TAIW201911-202304

(L)

main13711-24040×6iM15AFKS..MZEA11202008-202305

main13711-37020×8i2ZRFXE..ZWE211..TAIW201904-202304

(J)

main13711-37031×8i1ZRFBE,2ZRFBE..ZRE210,211201908-202306

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31085×8i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

(L)

main90913-02101×8i1ZRFAE..ZRE210202306

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-32076×6iM15AFKS..MZEA11,17202305

main90501-33034×8iM20AFKS..MZEA12201904-202305

13715VALVE, EXHAUST

main13715-0T020×8i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202112

(L)

main13715-15090×6iM15AFKS..MZEA11,17202305

main13715-24040×8iM20AFKS..MZEA12,18202305

main13715-37030×8i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201904-202306

(J)

main13715-37060×8i1ZRFBE,2ZRFBE..ZRE210,211202306

(J)

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31084×8i1ZRFE..ZRE210..N;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..G202304

(L)

main90913-02112×8i1ZRFE..ZRE210..N;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..G202304

(J)

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-32076×6iM15AFKS..MZEA11202008-202305

main90501-33035×8iM20AFKS..MZEA12,18202305

13716CAP, VALVE STEM

main13716-0C010×16i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC201904-202305

(L)

main13716-25010×12iM15AFKS..MZEA11202008-202305

main13716-75020×16i2ZRFE..ZRE211..TAIW202304-202405

(J)

13734SEAT, VALVE SPRING

main13734-0C010×16i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(L)

main13734-62020×16i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

13734ASEAT, INTAKE VALVE SPRING

main13734-62020×6iM15AFKS..MZEA11202008-202305

13734BSEAT, EXHAUST VALVE SPRING

main13734-62020×8iM20AFKS..MZEA12201904-202305

13741RETAINER, VALVE SPRING

main13741-0C030×16i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

(L)

main13741-36010×16i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(J)

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

13741BRETAINER, INTAKE VALVE SPRING

main13741-36010×8iM20AFKS..MZEA12201904-202305

13741CRETAINER, EXHAUST VALVE SPRING

main13741-36010×8iM20AFKS..MZEA12201904-202305

13750ADJUSTER ASSY, VALVE LASH

main13750-0C030×16i1ZRFE..ZRE210..N;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..G202304

(L)

main13750-21010×16i1ZRFAE..ZRE210202306

main13750-25010×12iM20AFKS..MZEA12,18202305

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0C020×16i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

(L)

main13801-25010×16iM20AFKS..MZEA12,18202305

main13801-36020×16i2ZRFE..ZRE211..TAIW202304-202405

(J)

9010506353

main90105-06353

9010508505

main90105-08505

9010908317

main90109-08317

9011007002

main90110-07002

9012606026

main90126-06026

9091002199

main90910-02199

9167180825

main91671-80825

9415180600

main94151-80600

36 parts on this diagram · 5 diagrams in section
