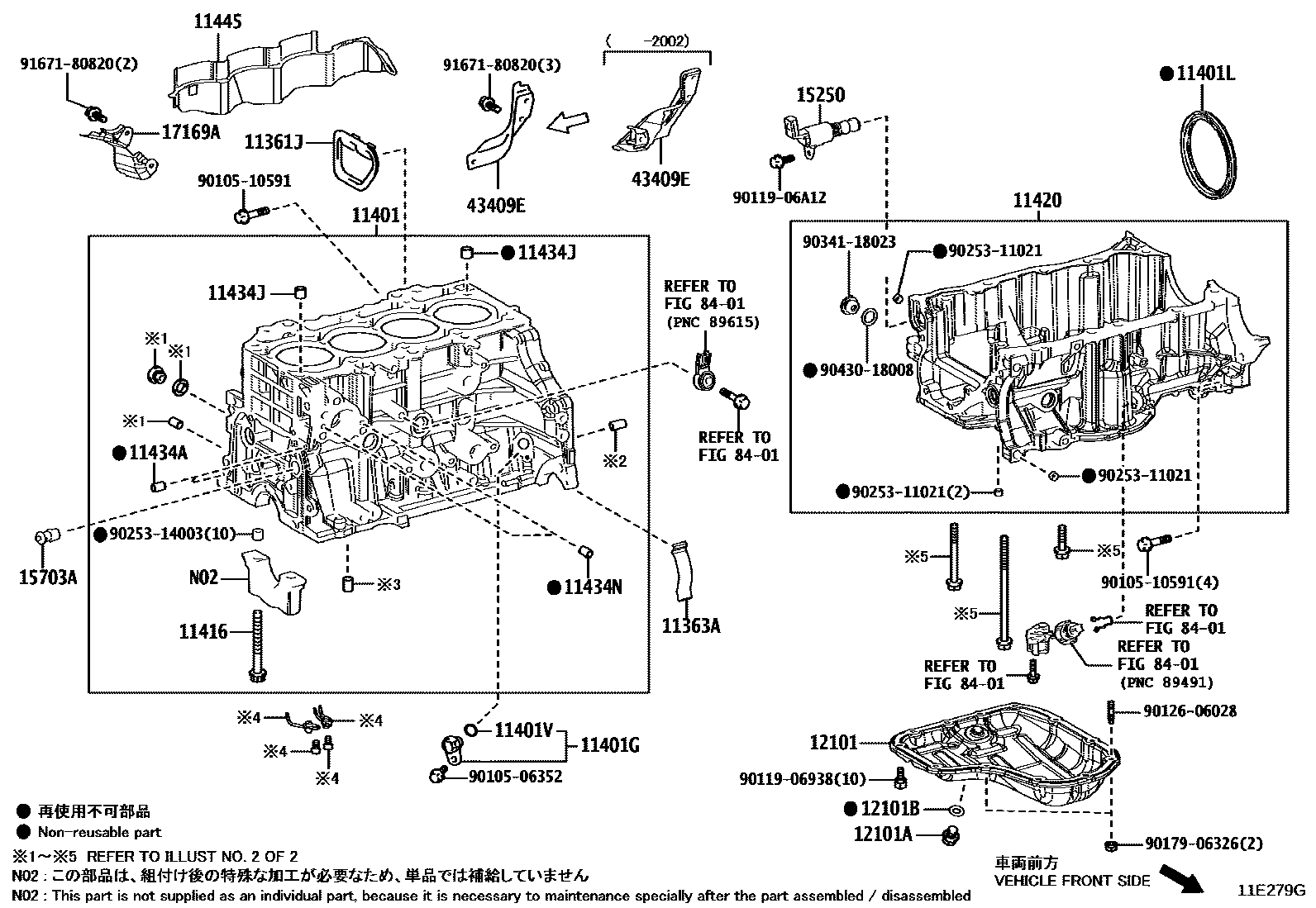

CYLINDER BLOCK

0001 1CYLINDER BLOCK 0002 1FITTING PARTS 0003 1CYLINDER BLOCK 0004 1FITTING PARTS 0005 1 0007 1 0009 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZRFE..ZRE211..TAIW201904-202304

main11361-25010iM15AFKS,M20AFKS..MZEA1#201904-202305

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-15010iM15AFKS..MZEA11,17202305

main11363-21010i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

main11363-33010iM20AFKS..MZEA12201904-202305

11401BLOCK SUB-ASSY, CYLINDER

main11410-09631i2ZRFE..ZRE211..TAIW201904-202304

MADE IN THAILAND

main11410-09641i1ZRFBE,1ZRFE..ZRE210..CVT..(GEN,PHL,TH)201904-202306

(L)

main11410-09830i2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

(L)

main11410-19005iM15AFKS..MZEA11202008-202305

main11410-29665iM20AFKS..MZEA12201904-202305

main11410-39226i2ZRFXE..ZWE211201904-202006

sub16278-37021

sub16281-37071

sub16281-37190

sub16295-37021

sub25601-37050

sub25601-37060

main11410-39235i1ZRFE..ZRE210..6F201904-202112

(J)

main11410-39236i1ZRFBE,1ZRFE..ZRE210..GEN,PHL,TH202303-202306

(J)

main11410-39245i2ZRFBE,2ZRFE..ZRE211..D,E,G201904-202303

MADE IN JAPAN

main11410-39246i2ZRFE..ZRE211..G..PHL202304-202410

MADE IN JAPAN

main11410-39295i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA202110-202112

(J)

main11410-39296i2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

(J)

11401GSENSOR, CRANK POSITION

main90919-05070i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

main90919-05095iM15AFKS,M20AFKS..MZEA1#201904-202305

11401LSEAL, ENGINE REAR OIL

main90311-78008i1ZRFAE..ZRE210202306

main90311-90010iM15AFKS,M20AFKS..MZEA1#201904-202305

main90311-T0088i2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#;2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW201904-202111

main90311-T0106i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)202112-202306

11401VO-RING, CRANK POSITION SENSOR

main90301-11039iM15AFKS,M20AFKS..MZEA1#201904-202305

main90301-14016i2ZRFE..ZRE211..TAIW202304-202405

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163×10i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

main90910-02197×8iM20AFKS..MZEA12,18202305

main90910-T2008×10i1ZRFE..ZRE210..GCC201904-202305

(L)

11420CRANKCASE ASSY, STIFFENING

main11420-0T050i2ZRFE..ZRE211..G..PHL202304-202410

(L)

main11420-0T100i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN202006-202306

(L)

main11420-15010iM15AFKS..MZEA11,17202305

main11420-24010iM20AFKS..MZEA12,18202305

main11420-37010i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202304

(J)

main11420-37030i2ZRFXE..ZWE211201904-202003

main11420-37040i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA202006-202112

(J)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

L=12,OD=4.0

main90250-06003×2iM15AFKS,M20AFKS..MZEA1#201904-202305

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001×2i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

main90253-13017×2iM15AFKS,M20AFKS..MZEA1#201904-202305

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003×2iM15AFKS,M20AFKS..MZEA1#202305

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-15010iM15AFKS..MZEA11202008-202305

main11445-24010iM20AFKS..MZEA12201904-202305

main11445-37010i2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

12101PAN SUB-ASSY, OIL

main12102-15010iM15AFKS..MZEA11,17202305

main12102-24010iM20AFKS..MZEA12201904-202305

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC201904-202305

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(L)

main90430-12031i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(J)

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010iM20AFKS..MZEA12201904-202305

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011iM20AFKS..MZEA12,18202305

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-24010iM20AFKS..MZEA12,18202305

43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12101iMZEA12201904-202001

main43409-K0030iMZEA11,17202305

main43498-12120iMZEA12202002-202203

main43498-12121iMZEA12,18202305

8401

9010506352

main90105-06352

9010510591

main90105-10591

9011906938

main90119-06938

9011906A12

main90119-06A12

9012606028

main90126-06028

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9034118023

main90341-18023

9043018008

main90430-18008

9167180820

main91671-80820

31 parts on this diagram · 7 diagrams in section
