SHORT BLOCK ASSEMBLY

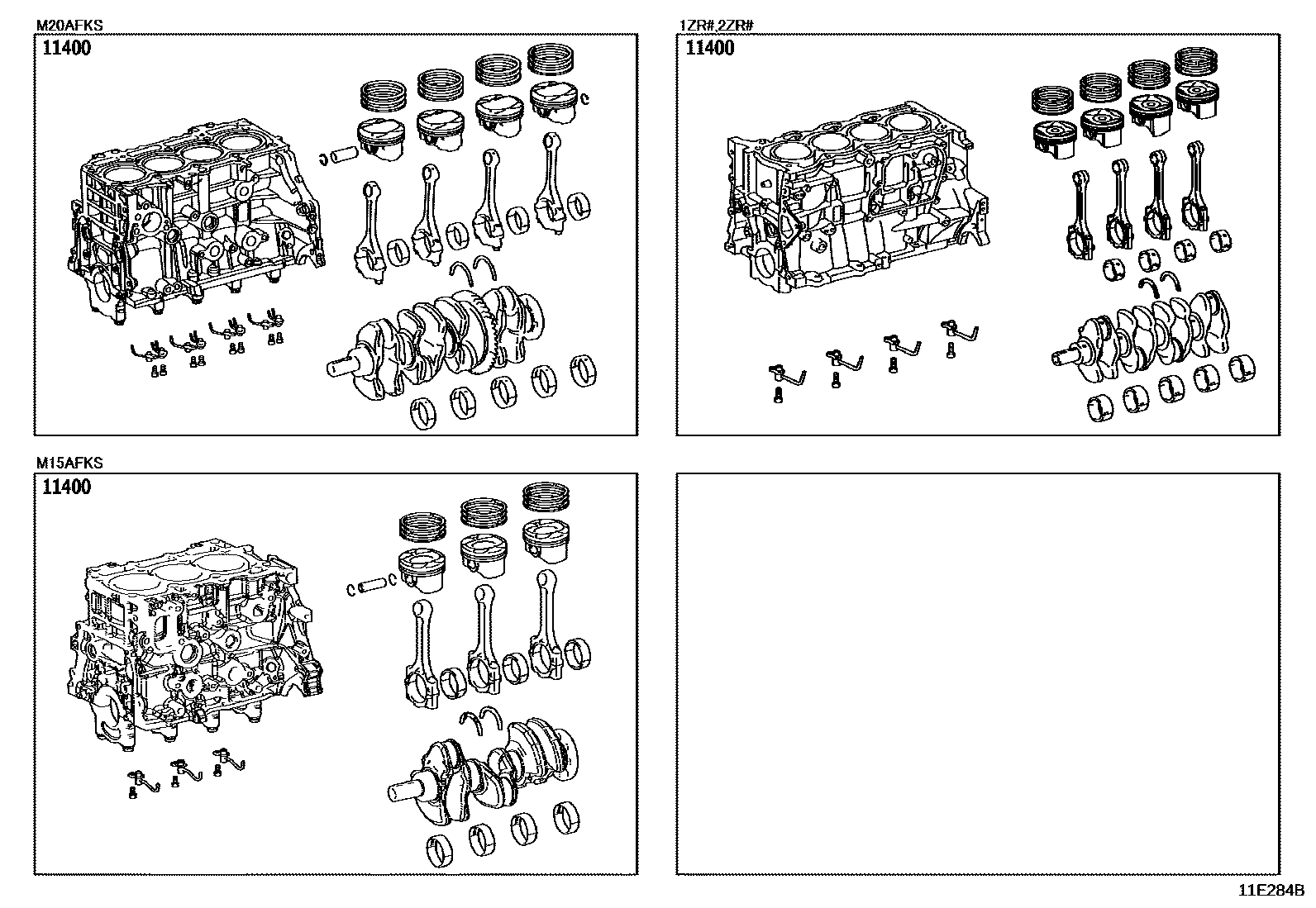

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0T160i201904-202306

main11400-0T170i201904-202410

main11400-0T400i201908-202306

main11400-0T460i201904-202410

main11400-0T470i201908-202306

main11400-15110i202008-202305

main11400-24030i201904-202305

main11400-37131i201908-202306

1 parts on this diagram · 1 diagram in section
