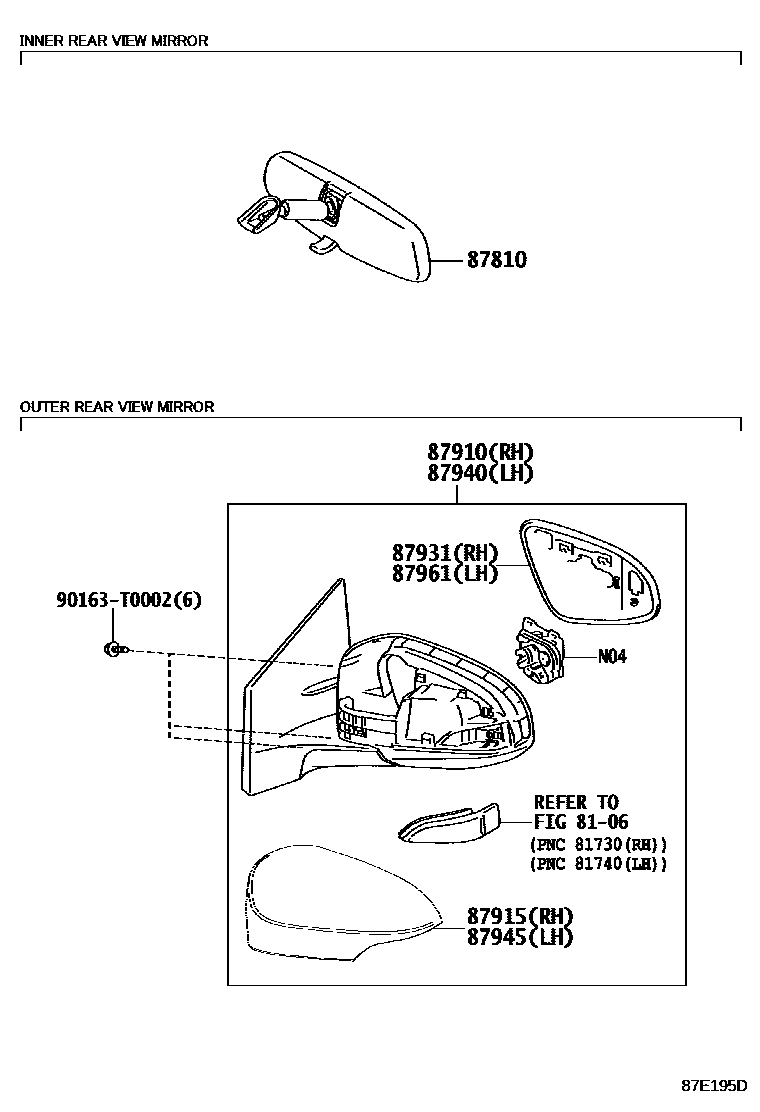

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
CSP PACKAGE(WITH(PRE-COLLISION SYSTEM))
87910MIRROR ASSY, OUTER REAR VIEW, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
NO PAINT REQ.
main87910-02J20iZRE171..GLI..GEN;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH;ZRE171..RHD..(CVT,MTM)..(GEN,SGP)201312-201610
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,NEW J PACKAGE
NO PAINT REQ.
BRUNEI SPEC
UP GRADE PACKAGE
87915COVER, OUTER MIRROR, RH
CKD COLOR,000
PAINT REQ.
PAINT REQ.
PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
PAINT REQ.
IRAQ SPEC
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,NEW J PACKAGE
NO PAINT REQ.
NO PAINT REQ.
BRUNEI SPEC
UP GRADE PACKAGE
87945COVER, OUTER MIRROR, LH
CKD COLOR,000
main87945-06910iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202201
PAINT REQ.
87961MIRROR OUTER, LH
IRAQ SPEC
main87961-0D740supersedes 87961-0D740iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610
90163T0002
main90163-T0002
9 parts on this diagram · 2 diagrams in section
