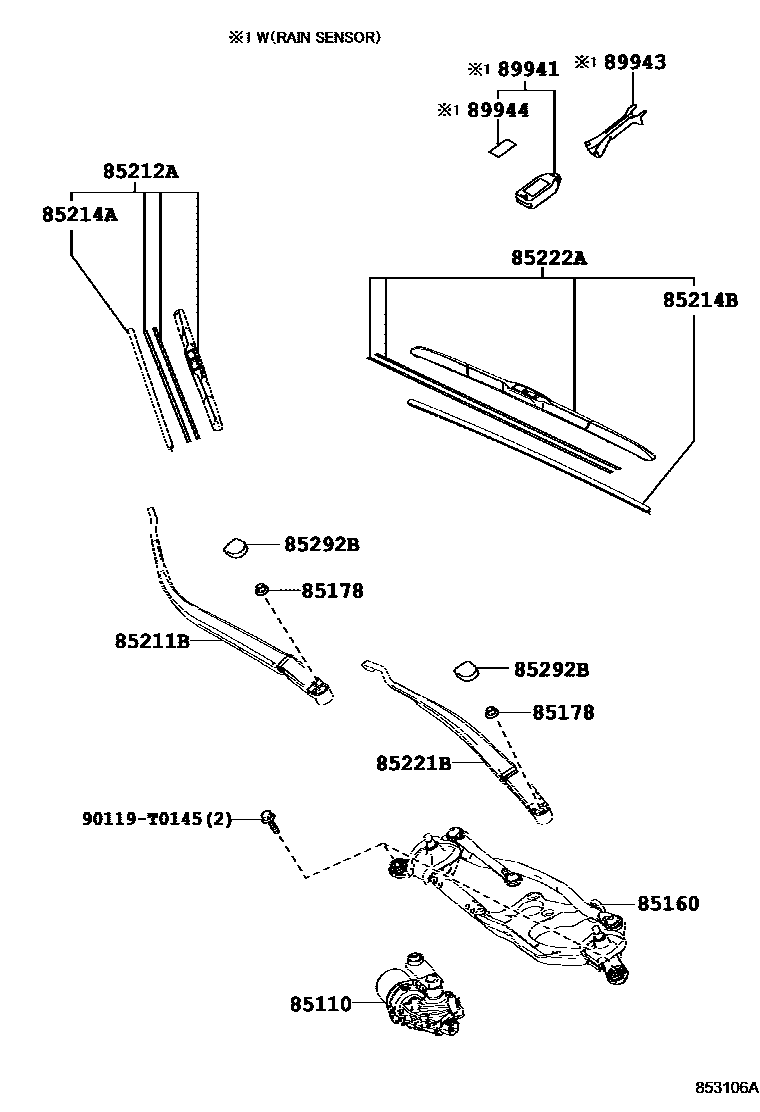

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02400iZRE171..16J..CNG201312-202208

main85110-02410iZRE173..6F;ZRE171..6F..GLI201310-202201

main85110-02420iNDE170,ZRE172..IND201405-201906

85160LINK ASSY, WINDSHIELD WIPER

main85150-02360iZRE171..HTWC..TH201312-202208

main85150-02370iZRE171,173..LHD..(GEN,PHL)201310-202201

main85150-02380iNDE170,ZRE172..IND201405-201906

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-T0029iZZE172201310-202208

85211BARM, FRONT WIPER, RH

main85211-02360iZRE172..6F..PKN201312-202208

main85211-02370iZRE171,173..4FC..GCC201310-202201

main85211-02400iNDE170,ZRE172..IND201405-201906

85212ABLADE, FR WIPER, RH

main85212-02300iNDE170,ZRE172..IND201405-201906

main85212-52220iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202201

main85212-52250iZRE172..6F..(ARL,IDN);ZRE171..RHD..(CVT,MTM);ZRE172..CVT..(ARL,IDN,MA,PKN,TH);NZE170,ZRE171,173..RHD..(20G,20V,GLI,XLI)201312-202208

85214ARUBBER, WIPER, RH

main85214-52110iZRE172..6F..PKN201312-202208

main85214-68030iZRE172..LHD..CVT;ZRE17#..LHD..(16E,16G,16V,18E,20V,GLI,XLI)201310-202201

85214BRUBBER, WIPER, LH

main85214-52110iZRE171,173..LHD..(GEN,PHL)201310-202201

main85214-68030iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-202208

85221BARM, FRONT WIPER, LH

main85221-02380iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-202208

main85221-02390iZRE171,173..LHD..(GEN,PHL)201310-202201

main85221-02420iNDE170,ZRE172..IND201405-201906

85222ABLADE, FR WIPER, LH

main85222-02340iNDE170,ZRE172..IND201405-201906

main85222-42120iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202201

main85222-52220iNZE170,ZRE171,172..PKN201312-202208

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNZE170,ZRE171,172..PKN201312-202208

main85292-0D050iZRE171,173..LHD..(GEN,PHL)201310-201903

89941SENSOR, RAIN

main89941-52010iNDE170,ZRE172..GL,VL201312-202201

main89941-52010iZRE173..VN201312-202002

LOW GRADE PACKAGE

main89941-52010iZRE172..VN202008-202107

X PACKAGE(LOW)

main89941-52010iZRE172..6F..PKN201407-202109

UP GRADE PACKAGE

89943COVER, RAIN SENSOR

main89943-47010iZRE173..VN201312-202002

LOW GRADE PACKAGE

main89943-47010iNDE170,ZRE172..GL,VL201312-202201

main89943-47010iZRE172..PKN201407-202109

UP GRADE PACKAGE

main89943-47010iZRE172..VN202008-202107

X PACKAGE(LOW)

89944TAPE, RAIN SENSOR

main89944-42010iZRE172..18V;ZRE171,172..RHD..(E,G);ZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-202002

LOW GRADE PACKAGE

main89944-42010iNDE170,ZRE172..GL,VL201312-202201

main89944-42010iZRE172..PKN201407-202109

UP GRADE PACKAGE

main89944-42010iZRE172..VN202008-202107

X PACKAGE(LOW)

90119T0145

main90119-T0145

14 parts on this diagram · 2 diagrams in section
