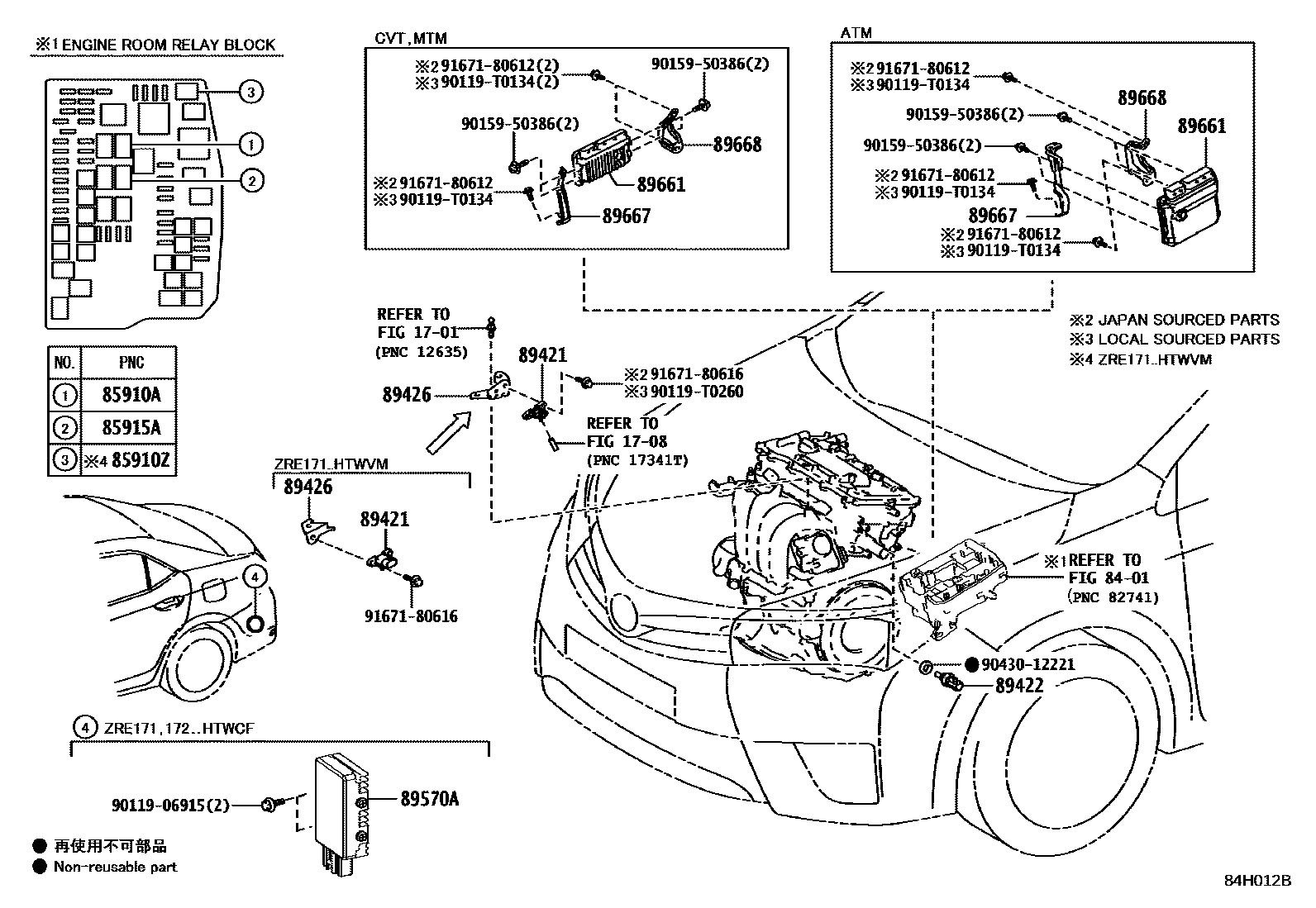

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

1708

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZZE172201310-201409

main90987-T2001iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);ZRE171,173..(CVT,MTM)..HTWC;ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW)201610

(L)

85910ZRELAY, INJECTION (FOR EFI)

main90987-T2001iZRE171..G201611-201907

85915ARELAY, MAIN

main90987-02027iZRE173..4FC;ZRE171..4FC..GLI..GCC;ZRE171..(4FC,6F)..XLI..GCC201310-201512

(J)

main90987-T2001iZRE17#..ARL,GEN,IDN,MA,PHL,SGP201310-201610

(L)

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE171..GCC201512-201609

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE171..4FC..N201610-202208

main89422-35010iZZE172201310-201409

89426BRACKET, VACUUM SENSOR

main89426-12270iZRE171..6F..GCC201601-201609

main89426-28080iZRE171..G201611-201907

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12390iZRE171,172..HTWCF201312-201610

89661COMPUTER, ENGINE CONTROL

main89661-0Z710iNZE170..4FC201707-201911

main89661-0ZE40iNZE170..5F201407-201707

main89661-0ZE50iNZE170..4FC201407-201707

main89661-0ZE70iZRE171..16G..TH201312-201601

main89661-0ZE80supersedes 89661-0ZF70iZRE171..6F..(GEN,PHL)201312-201610

main89661-0ZE90supersedes 89661-0ZE70iZRE171..CVT..PHL201312-201610

BRUNEI SPEC

main89661-0ZF10iZRE172..6F..ARL201312-201610

main89661-0ZF20iZRE172..TAIW201310-201603

main89661-0ZF30iZRE172..6F..VN201312-201709

main89661-0ZF50iZRE173..VN201312-201709

main89661-0ZF60iZRE172..TH201312-201610

main89661-0ZF70iZRE171..16J..HTWC201310-201601

main89661-0ZF80supersedes 89661-0ZE61iZRE171..N201312-201707

main89661-0ZG00iZRE172..CVT..VN201312-201709

main89661-0ZJ60iZZE172..5F201310-201409

main89661-0ZJ70iZZE172..4FC201310-201409

main89661-0ZP30iZRE171..16J201601-201610

main89661-0ZP40iZRE171..CVT..GCC201512-201609

main89661-0ZP50iZRE171..16G..TH201601-201610

main89661-0ZP70iZRE173..GCC201512-201609

main89661-0ZS20iZRE171..16J201611-201907

main89661-0ZS30iZRE171..6F..HTWC201610-201907

main89661-0ZS40iZRE171..CVT..GCC201610-201903

main89661-0ZS50iZRE171..16G..TH201611-201907

main89661-0ZS60iZRE171..CVT..PHL201611-201907

main89661-0ZS70iZRE172..6F..IND201703-201906

main89661-0ZS80iZRE172..6F..ARL201611-201907

main89661-0ZS90iZRE172..18E..VN;ZRE172..6F..(IDN,PKN)201611-202109

main89661-0ZT00iZRE172..CVT..ARL201610-201907

main89661-0ZT10iZRE172..CVT..IND201703-201906

main89661-0ZT20iZRE172..CVT..VN201611-202201

main89661-0ZT30iZRE172..TH201611-201907

main89661-0ZT50iZRE173..GCC201610-201903

main89661-0ZT60iZRE173..20G,20V201611-202007

main89661-0ZT70iZRE171..G201611-201907

main89661-0ZU70iZRE172..TAIW201604-201609

main89661-12T40iZRE171..16J..CNG201312-201512

main89666-02850iZRE172..TAIW201707-201903

FUJITSU TEN

main89666-02C10iZRE171..CVT202209

DENSO TEN

main89666-02C20iZRE171..6F201909

DENSO TEN

main89661-0ZL30supersedes 89661-0ZG10iZRE173..6F201310-201511

IRAN SPEC

main89661-0ZL40supersedes 89661-0ZG20iZRE173..4FC201310-201404

ROUGH ROAD AREA SPEC

main89661-12W20supersedes 89661-1AA40iZRE171..CNG201601-201610

CNG PACKAGE

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02330iZRE172..6F..PKN201611-202109

main89667-02340iNZE170,ZRE171..PKN201312-201707

main89667-02360iZRE171,173..CVT..GCC201512-201609

main89667-02370iZZE172201310-201409

main89667-02430iZRE172..IND201703-201906

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02310iZRE172..18E..VN;ZRE172..6F..(ARL,IDN);ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171,173..(CVT,MTM)..(HTWC,HTWCF,HTWVM)..(GEN,MA,PHL,PKN,SGP,TH,VN)201611

main89668-02320iNZE170,ZRE171..PKN201312-201707

main89668-02340iZRE171,173..CVT..GCC201512-201609

main89668-02350iZZE172201310-201409

main89668-02410iZRE172..IND201405-201702

9011906915

main90119-06915

90119T0134

main90119-T0134

90119T0260

main90119-T0260

9015950386

main90159-50386

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

20 parts on this diagram · 4 diagrams in section
