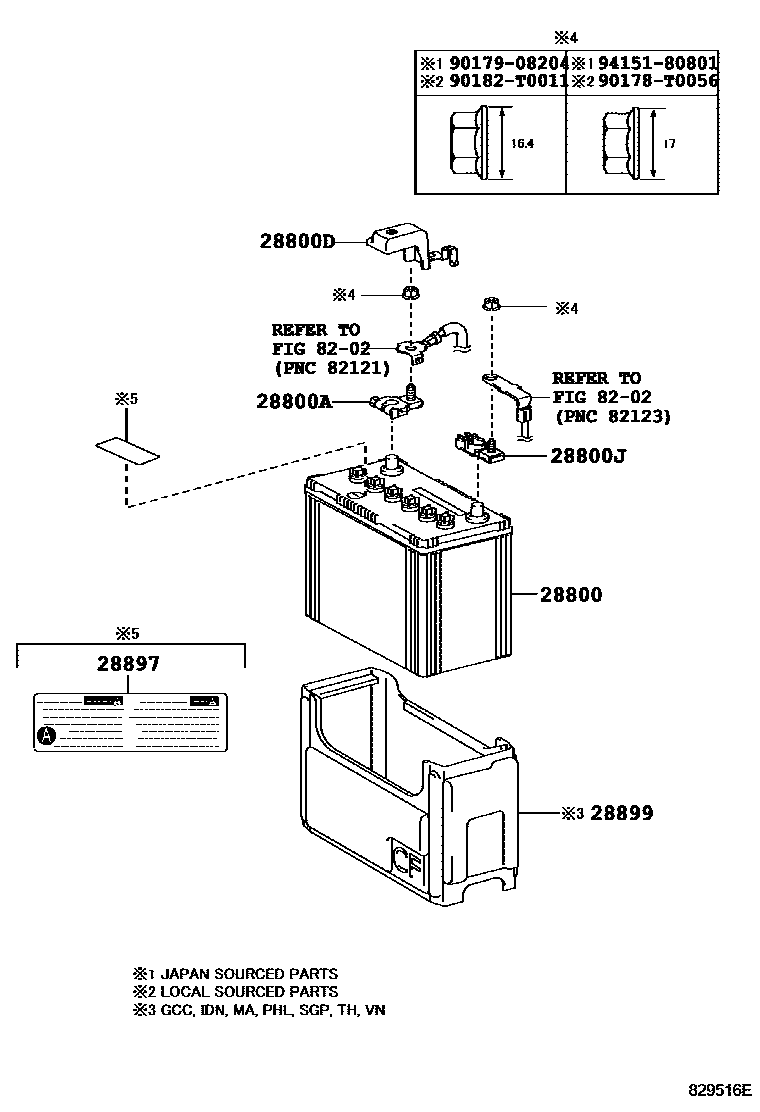

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-0D410i2NZFE,1ZRFE,2ZRFE..NZE170,ZRE171,172..PKN201407-201705

46C24L

sub28800-0D411

main28800-0D411i2NZFE,1ZRFE,2ZRFE..NZE170,ZRE171,172..PKN201706-202211

46C24L

sub28800-0D412

main28800-0D412i1ZRFE,2ZRFE..ZRE17#202212

46C24L

main28800-0M060i1ZR#,2ZR#,3ZRFE..ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH201611-201701

46B24L(S)

sub28800-0M061

main28800-0M060i1ZRFE..ZRE171..HTWC..TH201312-201610

46B24L(S),GS

sub28800-0M061

main28800-0M061i1ZR#,2ZR#,3ZRFE..ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH201702-201907

46B24L(S)

main28800-0M081i1ZRFE..ZRE171..CNG201312-201610

46B24L(S),FURUKAWA

sub28800-0M082

main28800-0M090i2ZRFE..ZRE172..TAIW201310-201903

46B24L(S)

sub28800-0M091

main28800-0M120i2ZRFE,3ZRFE..ZRE172,173..VN201409-201705

46B24L(S)

sub28800-0M121

main28800-0M121i2ZRFE,3ZRFE..ZRE172,173..VN201706-202201

46B24L(S)

main28800-0T050i3ZRFE..ZRE173..6F;1ZRFE..ZRE171..6F..GLI201310-201903

46B24L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1ZZFE..ZZE172201310-202208

main90982-05056i1NDTV..NDE170201405-201906

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ZRFE..ZRE172..CVT..VN201310-202208

main82821-52060i1NDTV..NDE170201405-201906

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i3ZRFE..ZRE173..6F;1ZRFE..ZRE171..6F..GLI201310-202208

28897PLATE, BATTERY CAUTION

main28897-36030i1ZRFE,3ZRFE..ZRE171,173..GCC201610-201903

28899INSULATOR, BATTERY

main28899-0M030i3ZRFE..ZRE173..20G201412-201907

main28899-37040i1ZRFE..ZRE171..CVT..GLI;3ZRFE..ZRE173..CVT..GCC;1ZRFE..ZRE171..(CVT,MTM)..XLI..GCC201310-201602

sub28899-46020

main28899-37050i2ZRFE..ZRE172..18G..VN201312-202201

main28899-46020i1ZRFE,3ZRFE..ZRE171,173..GCC201603-201903

8202

90178T0056

main90178-T0056

9017908204

main90179-08204

90182T0011

main90182-T0011

9415180801

main94151-80801

11 parts on this diagram · 3 diagrams in section
