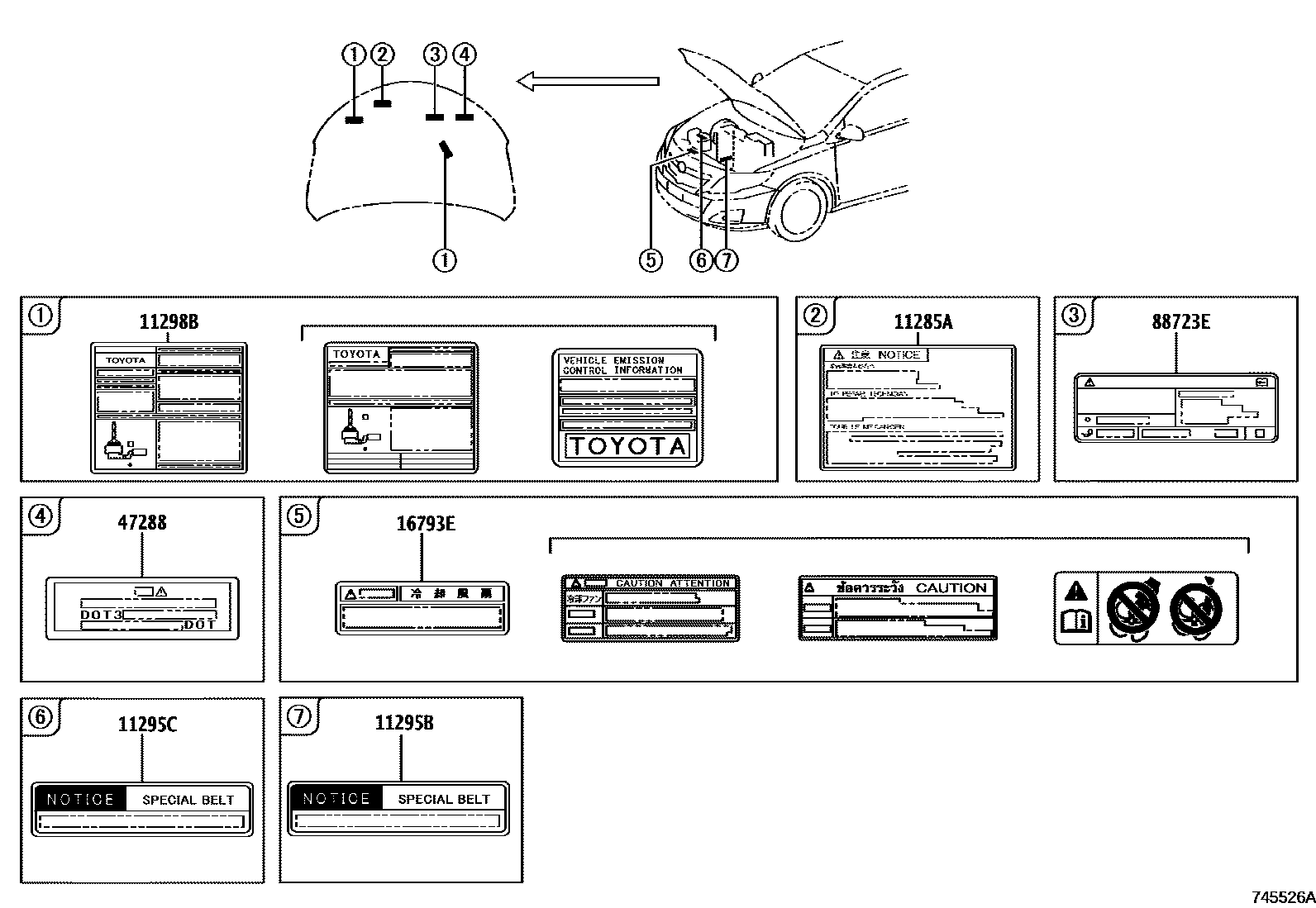

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0N020i1NDTV..NDE170201405-201906

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-33010i1NDTV..NDE170201405-201906

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11295-33010i1NDTV..NDE170201405-201906

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0T020i3ZRFE..ZRE173..PHL201312-201610

main11298-0T070i1ZRFE..ZRE171..PHL201312-201610

main11298-0T180i2ZRFE..ZRE172..TAIW201310-201407

main11298-0T181i2ZRFE..ZRE172..TAIW201408-201410

main11298-0T260i2ZRFE..ZRE172..TAIW201410-201510

main11298-0T360i2ZRFE..ZRE172..TAIW201510-201604

main11298-0T370i2ZRFE..ZRE172..TAIW201604-201609

main11298-0T390i2ZRFE..ZRE172..TAIW201610-201706

main11298-0T391i2ZRFE..ZRE172..TAIW201706-201805

main11298-0T450i3ZRFE..ZRE173..PHL201611-201907

main11298-0T460i1ZRFE..ZRE171..PHL201611-201907

main11298-0T520i2ZRFE..ZRE172..TAIW201805-201809

main11298-0T590i2ZRFE..ZRE172..TAIW201809-201903

16793ELABEL, COOLING FAN CAUTION

main16793-0N010i1NDTV,2ZRFE..NDE170,ZRE172..IND201405-201605

main16793-0T030i2ZRFE,3ZRFE..ZRE172,173..VN201312-202201

main16793-11010i2ZRFE..ZRE172..TAIW201310-201601

main16793-36030i1ZRFE..ZRE171..4FC..N201601-202208

main16793-46010i1ZRFE,3ZRFE..ZRE171,173..CVT..GCC201310-201601

47288LABEL, BRAKE FLUID NOTICE

main47288-71010iZRE171,173..GCC201610-201903

88723ELABEL, COOLER SERVICE CAUTION

main88723-02260iZRE171..HTWC..TH201312-201907

main88723-02270iZRE17#..ARL,GEN,IDN,MA,PHL,SGP201312-202201

main88723-02280iZRE172..TAIW201310-201903

main88723-02290iZRE171,173..GCC201310-201903

main88723-02300iNDE170,ZRE172..IND201405-201906

main88723-02310iZRE171..4FC..N201407-202208

7 parts on this diagram · 3 diagrams in section
