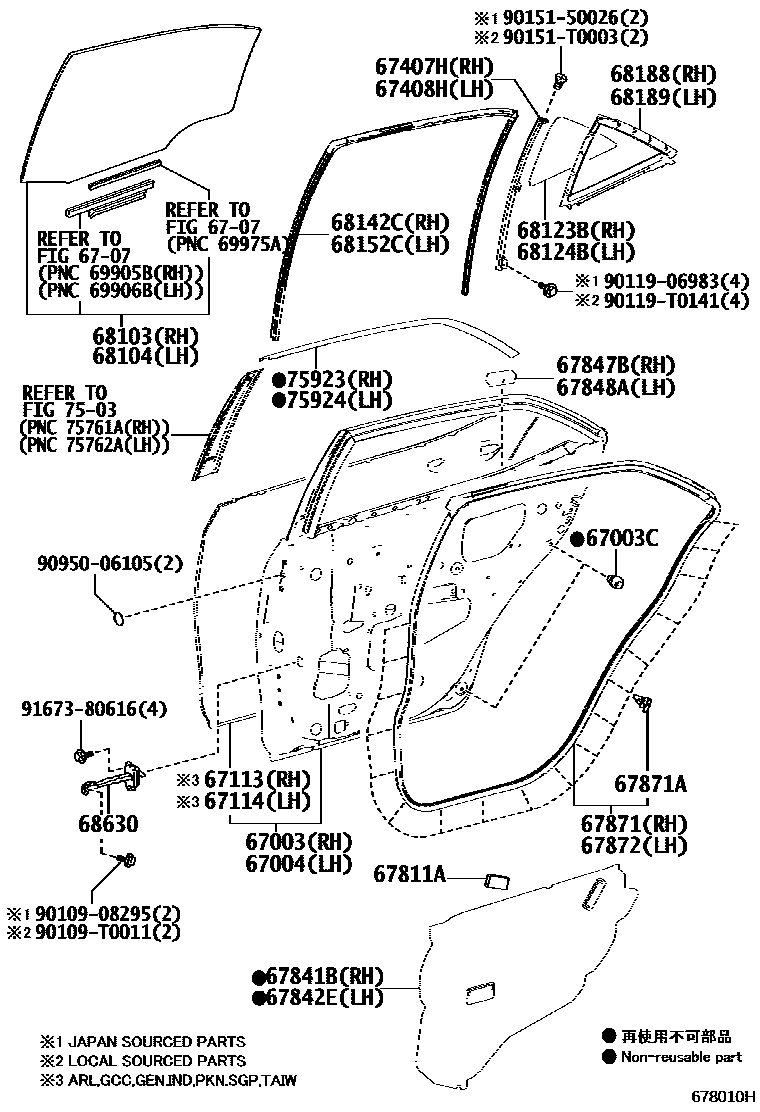

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02430iZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,ZRE171,173..CVT,MTM;NZE170,ZRE172..(18E,GLI)..(PKN,VN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

main67003-02440iNZE170..XLI201707-201911

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iZRE171..HTWC..TH201310-201601

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02430iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201610

main67004-02440iNZE170..XLI201707-201911

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-02220iZZE172201310-201409

67114PANEL, REAR DOOR, OUTER LH

main67114-02220iZRE171,173..CVT..GCC201512-201609

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-02140iZRE172,173..VN201312-201709

main67407-02160iZZE172201310-201409

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-02140iZRE172,173..VN201312-201709

main67408-02160iZZE172201310-201409

67811APAD, REAR DOOR SILENCER

main67811-0D010×2iZZE172201310-201409

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-02290iZZE172201310-201409

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02270iZZE172201310-201409

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02060iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02060iZZE172201310-201409

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02260iZZE172201310-201409

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×36iZZE172201310-201409

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02260iZZE172201310-201409

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02440iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610

main68103-02441iNZE170,ZRE171,172..PKN201708-201812

main68103-02450iZRE171,173..CVT..GCC201512-201609

main68103-02460iNDE170,ZRE172..IND201405-201702

main68103-02690iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201812

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02440iZRE171..HTWC..TH201312-201601

main68104-02441iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201708-202201

main68104-02450iZZE172201310-201409

main68104-02460iNDE170,ZRE172..IND201703-201906

main68104-02690iZRE172..6F..PKN201812-202109

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02360iNZE170,ZRE17#..PKN,VN201312-201707

main68123-02361iNZE170,ZRE171,172..PKN201708-201812

main68123-02370iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main68123-02380iNDE170,ZRE172..IND201405-201702

main68123-02600iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201812

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02360iNZE170,ZRE17#..PKN,VN201312-201707

main68124-02361iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201708-202201

main68124-02370iZRE171,173..CVT..GCC201512-201609

main68124-02380iNDE170,ZRE172..IND201703-201906

main68124-02600iZRE171..4FC..N201812-202208

68142CRUN, REAR DOOR GLASS, RH

main68142-02320iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

68152CRUN, REAR DOOR GLASS, LH

main68152-02320iNDE170,ZRE172..IND201310-201702

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02190iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02190iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201610

68630CHECK ASSY, REAR DOOR

main68630-02260×2iZRE172..6F..PKN201611-202109

main68630-02270×2iZRE171,173..CVT..GCC201512-201609

main68630-02280×2iNDE170,ZRE172..IND201405-201702

7503

75923TAPE, BLACK OUT, NO.2 RH

main75923-02250iNZE170,ZRE171,172..PKN201310-201707

75924TAPE, BLACK OUT, NO.2 LH

main75924-02250iZRE171,173..CVT..GCC201512-201609

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9015150026

main90151-50026

90151T0003

main90151-T0003

9095006105

main90950-06105

9167380616

main91673-80616

36 parts on this diagram · 2 diagrams in section
