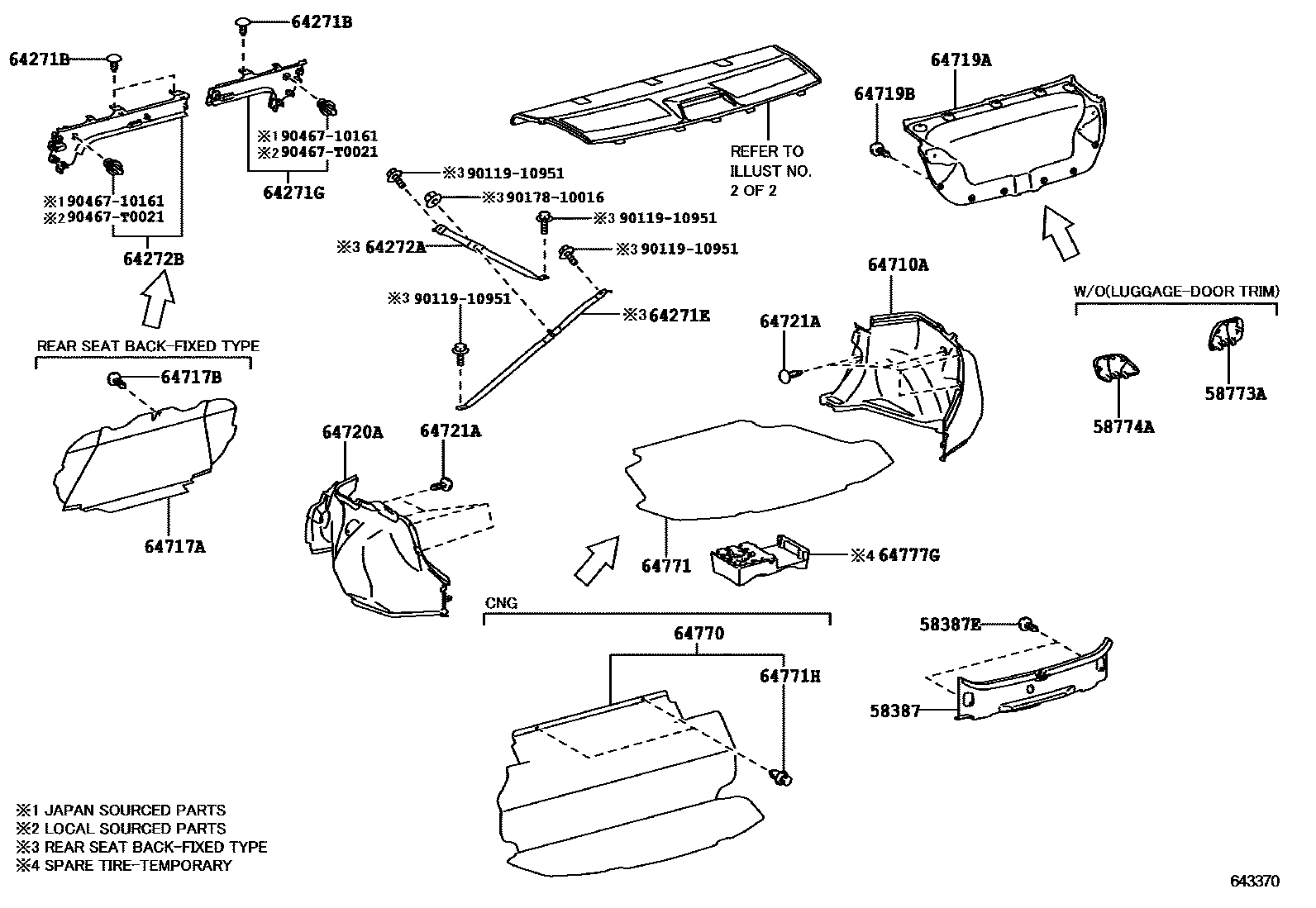

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1PACKAGE TRAY

58387PLATE, REAR FLOOR FINISH

main58387-02240iZRE172,173..VN201312-201709

main58387-02250iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main58387-02260iNDE170,ZRE172..IND201405-201702

main58387-02270iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iZRE171..16J..HTWCF;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TH,VN201310-201610

BLACK

main90467-08186-C3×2iZRE172..6F..PKN201610-202109

BLACK

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02190iZRE171..16J201611-201907

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02180iZRE171..16J..CNG201312-201512

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3iZZE172..GLI201310-201409

BLACK

main90467-08186-C3×3iZRE172..PKN201610-201707

BLACK

64271EPANEL, ROOM PARTITION

main64241-02100iNZE170,ZRE171..PKN201310-201707

64271GBOARD, ROOM PARTITION, RH

main64271-02210-C0iZRE171..RHD..GEN201312-201610

BLACK,TRIM0#,1#

main64271-02220-C0supersedes 64271-02220-C0iZRE172,173..MA201312-201610

BLACK,TRIM2#

main64271-02230-C0iZRE172..TAIW..D201310-201609

BLACK,TRIM2#

main64271-02250-C0iNDE170,ZRE172..IND201405-201702

BLACK,TRIM0#

main64271-02260-C0iZRE172..PKN201407-201707

BLACK,TRIM0#

64272APANEL, ROOM PARTITION, LH

main64242-02100iZRE173..CVT..XLI;ZRE171..(CVT,MTM)..XLI..GCC201310-201609

64272BBOARD, ROOM PARTITION, LH

main64272-02050-C0iZRE172..CVT..VN201312-201709

BLACK,TRIM0#,2#

main64272-02060-C0supersedes 64272-02060-C0iZRE172,173..MA201312-201610

BLACK,TRIM2#

main64272-02070-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,2#

main64272-02090-C0iNDE170,ZRE172..IND201405-201702

BLACK,TRIM0#

main64272-02100-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02300-C0iZRE172..IDN;ZRE171..16G..HTWCF201312-201610

BLACK,TRIM0#,2#

main64710-02310-C0iZRE171..CNG201611-201907

BLACK,TRIM0#

main64710-02320-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,1#

main64710-02330-C0iNDE170,ZRE172..IND201703-201906

BLACK,TRIM0#

main64710-02340-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02190iZRE171..16E..PHL;ZRE171..LHD..4FC;ZRE171,172..(CVT,MTM)..(16G,16J,18E,18G,18GS,XLI)..(GEN,IDN,TH)201611-201907

main64717-02200iZRE171,173..CVT..XLI201512-201609

main64717-02220iNZE170;ZRE171..(CVT,MTM)..N201707

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0iZRE171..HTWCF;NZE170,ZRE171..PKN;ZRE172..(18E,18G)..(IDN,TH);ZRE171..LHD..(16E,XLI)..(GEN,PHL)201310-201610

BLACK

main90467-08186-C3iZRE171,173..LHD..(16E,XLI);ZRE171..(CVT,MTM)..(HTWC,HTWCF)..(PKN,TH);NZE170,ZRE172..(18E,18G,18GS,GLI,XLI)..(IDN,PKN,TH)201610

BLACK

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02200-C0iZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL)201312-201610

BLACK,TRIM0#,1#

main64719-02210-C0iZRE172..TAIW..D201310-201609

BLACK,TRIM0#,1#

main64719-02220-C0iNDE170,ZRE172..IND201703-201906

BLACK,TRIM0#

main64719-02240-C0iZRE172..CVT..VN201409-201709

BLACK,TRIM2#

main64719-02270-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×13iZRE172,173..VN201310-201709

BLACK

main90467-08186-C3×13iNZE170,ZRE171,172..PKN201610-201707

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02300-C0iZRE172..IDN;ZRE171..16G..HTWCF201312-201610

BLACK,TRIM0#,2#

main64720-02310-C0iZRE171..16E..TH201312-201610

BLACK,TRIM0#

main64720-02320-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,1#

main64720-02330-C0iNDE170,ZRE172..IND201405-201702

BLACK,TRIM0#

main64720-02340-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0×8iZRE171,173..CVT..GCC201512-201609

BLACK

main90467-08186-C3×8iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201610

BLACK

64770COVER ASSY, SPARE WHEEL

main64770-02100-C0iZRE171..CNG201611-201907

BLACK,TRIM0#

64771COVER, SPARE WHEEL

main64771-02390-C0iZRE172..IDN;ZRE171..16G..HTWCF201312-201610

BLACK,TRIM0#,2#

main64771-02410-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,1#

main64771-02420-C0iNDE170,ZRE172..IND201405-201702

BLACK,TRIM0#

main64771-02430-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

64771HCLIP(FOR SPARE WHEEL COVER)

main90467-T0015×2iZRE171..16E..TH201312-201610

64777GCUSHION, SPARE WHEEL

main64777-02150iZRE172..TAIW201310-201609

main64777-02310iZRE171..16J201601-201610

CNG PACKAGE

9011910951

main90119-10951

9017810016

main90178-10016

9046710161

main90467-10161

90467T0021

main90467-T0021

24 parts on this diagram · 2 diagrams in section
