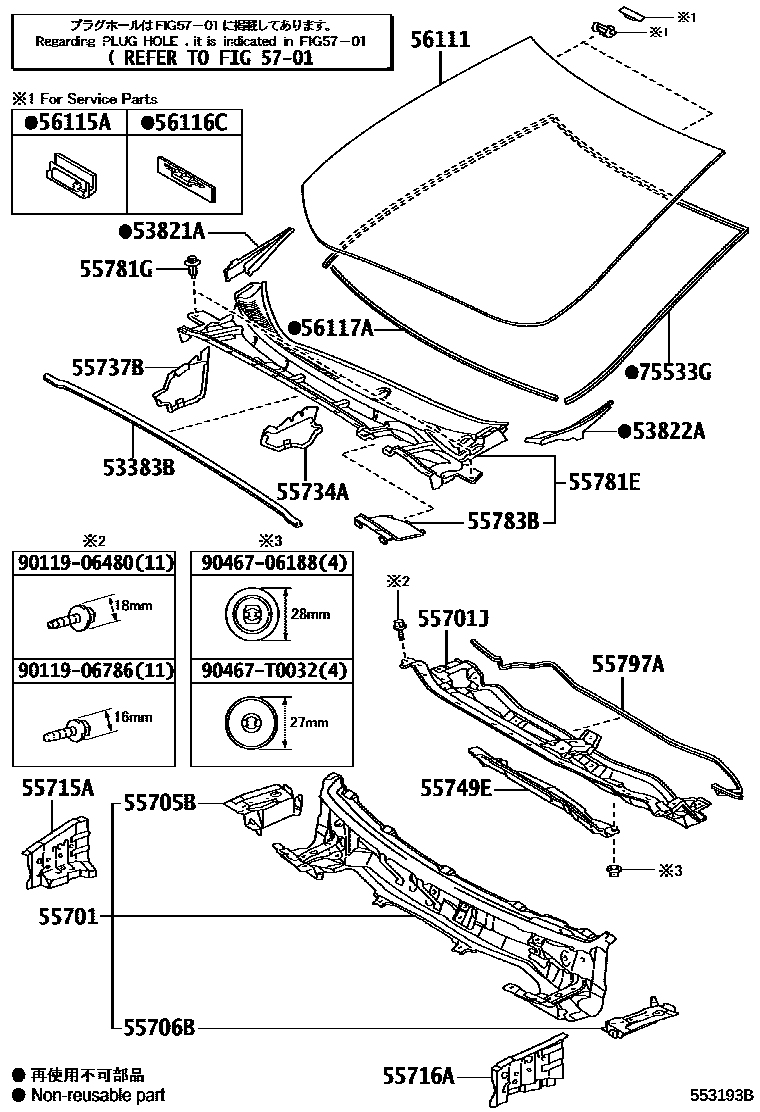

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02220iZZE172201310-202208

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53805-02040iZRE171..(CVT,MTM)..N;ZRE172..CVT..(IND,PKN);NDE170,NZE170,ZRE172..(ATM,MTM)..(G,GL,GLI,J,XLI)201405-202208

main53805-02050iZRE172,173..VN201907-202201

main53823-02100iZZE172201310-201907

main53823-02150iZRE171..16J..CNG201312-201907

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53806-02040iNZE170,ZRE171,172..PKN201405-202208

main53806-02050iZRE172,173..VN201907-202201

main53824-02100iZRE171..HTWC..TH201312-201907

main53824-02150iZRE171,173..4FC..GCC201310-201907

55701PANEL SUB-ASSY, COWL

main55700-02550iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-202208

main55700-02560iZRE171,173..LHD..(GEN,PHL)201310-202201

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02420iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-202208

main55701-02430iZRE172,173..VN201310-202201

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02150iZRE173..6F;ZRE171..6F..GLI201310-202208

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02150iZZE172201310-202208

55715ABRACE, COWL TOP TO APRON, RH

main55715-02040iZZE172201310-202208

55716ABRACE, COWL TOP TO APRON, LH

main55716-02040iZRE171,173..CVT..GCC201310-202208

55734APLATE, WATER GUARD, RH

main55734-02310iZRE173..6F;ZRE171..6F..GLI201310-202208

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02180iZRE171,173..CVT..GCC201310-202208

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02110iZRE172,173..VN201312-202201

main55749-02120iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201903

main55749-02130iNDE170201405-201906

main55749-02150iZRE171,172..PKN201312-202208

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02640iZRE171,173..CVT..GCC201310-202201

main55708-02650iZRE172..RHD..CVT;ZRE171..RHD..(CVT,MTM);ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE171,173..RHD..(20G,20V,G,GL,GLI,XLI)201312-202208

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZRE172,173..VN201310-201703

BLACK

main90467-07076-C0iZRE171..16J..CNG201405-201703

BLACK,(J)

main90467-07076-C7iZRE172..RHD..CVT;ZRE171..RHD..(CVT,MTM);ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE171,173..RHD..(20V,G,GL,GLI,XLI)201703-202208

BLACK,(J)

main90467-07076-C7iZRE172,173..VN201703-202201

BLACK

main90467-T0022iNDE170,NZE170,ZRE171,172..IND,PKN201405-201907

(L)

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-02250iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-202208

main55783-02260iZRE173..6F;ZRE171..6F..GLI201310-202201

55797ASEAL, COWL WATER EXTRACT

main55797-02130iZZE172201310-202208

56111GLASS, WINDSHIELD

main56101-02951iZRE172..18V..IDN201312-201708

main56101-02953iZRE171..(CVT,MTM)..(16E,16G,XLI)..(GEN,PHL)201312-201708

main56101-02954iZRE173..VN201409-201709

main56101-02955iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-201708

main56101-02956iZRE172..ARL..(D,N)201312-201708

main56101-02958iNZE170,ZRE171..RHD..(GEN,PKN,TH);ZRE172..(18E,18G,18GS)..(IDN,TH)201611-201708

LOW GRADE PACKAGE

main56101-02958iZRE171..16J..CNG201312-201707

main56101-02961iZRE171,173..CVT..GCC201310-201903

main56101-02966iZRE172,173..RHD..(18GS,20V)201312-201708

main56101-02967iZRE171..G;ZRE172..18V..TH201312-201708

main56101-02968iZRE172..ARL..E201312-201610

main56101-02969iZRE172..TAIW..(E,G)201310-201903

main56101-02970iZRE172..PKN201312-201708

main56101-02971iZRE172..TAIW..D201310-201903

main56101-02974iZRE173..VN201709-202201

main56101-02976iZRE172..ARL..E201611-201708

main56101-02977iZRE171..4FC..N201708-202208

main56101-02978iZRE172..CVT..VN;ZRE171,172..(CVT,MTM)..(16E,16G,18E,XLI)..(GEN,PHL,VN)201708-202008

main56101-02981iZRE172..CVT..(MA,PKN)201708-202109

main56101-02982iZRE173..MA201708-201907

main56101-02983iZRE172..18V..IDN201708-201907

main56101-02984iZRE171..G;ZRE172..18V..TH201708-201907

main56101-02985iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201708-201907

main56101-02986iZRE172..ARL..(D,N)201708-201907

main56101-02988iZRE172..ARL..E201708-201907

main56101-02E30iNDE170,ZRE172..G201405-201906

main56101-02F00iZRE172..J201405-201906

NEW J PACKAGE

main56101-02F00iNDE170..G201405-201702

HE PACKAGE

main56101-02F30iNDE170,ZRE172..GL,VL201405-201906

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZRE173..6F;ZRE171..6F..GLI201310-202208

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iNDE170,ZRE172..IND201310-202208

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02190iZZE172201310-202208

L=1262.5

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02220iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main75531-02230iZRE173..6F;ZRE171..6F..GLI201310-201903

main75531-02240iNDE170,ZRE172..IND201405-201906

9011906480

main90119-06480

9011906786

main90119-06786

9046706188

main90467-06188

90467T0032

main90467-T0032

26 parts on this diagram · 2 diagrams in section
