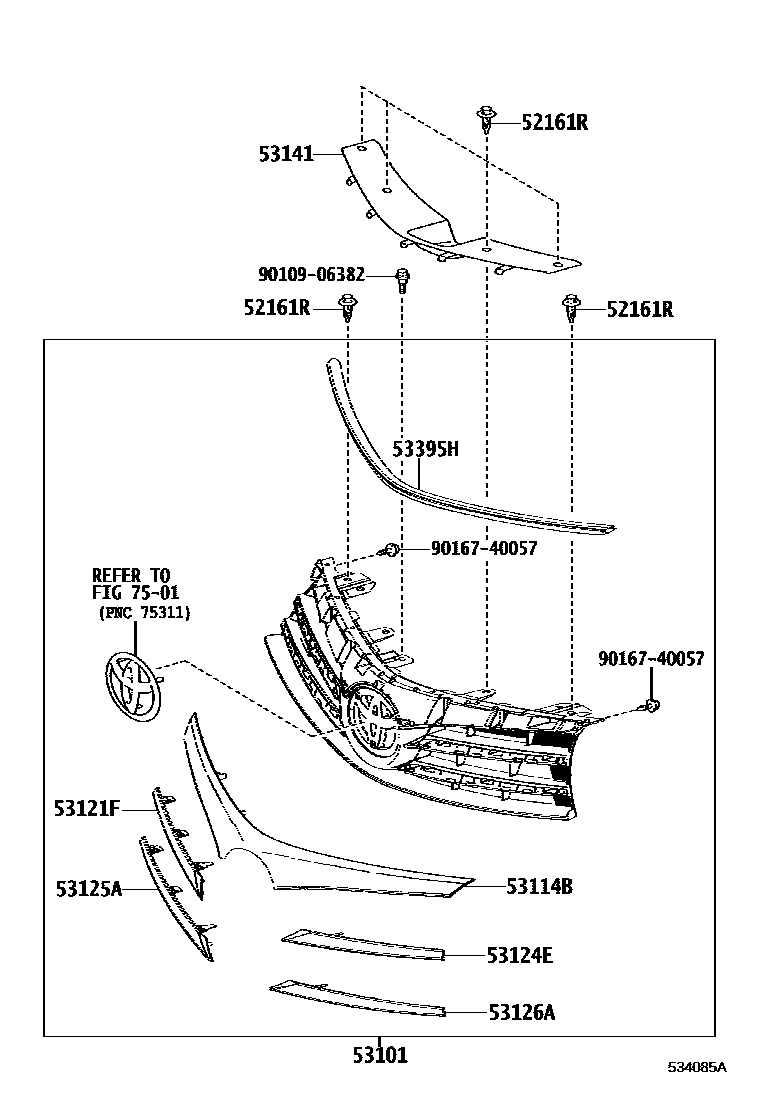

RADIATOR GRILLE

0001 1 0006 1 0007 1

52161RPIECE, FRONT BUMPER

main52161-0K040iZRE172,173..18GS,20V201611-201907

(L)

main52161-0K040iZRE172,173..18GS,20V201611-201907

SPORTY PACKAGE,(L)

main52161-0K040iZRE173..VN201709-201907

LOW GRADE PACKAGE

main52161-0K040iZRE171..HTWC..TH201312-201709

main52161-0K060iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")

main52161-0K060iNDE170,ZRE17#..GCC,IND,TAIW201310-201511

(L)

main52161-0K060iZRE171,173..4FC..GLI..GCC201511-201609

SPORTY PACKAGE

main52161-0K060iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

X PACKAGE(REAR EMBLEM "X")

main52161-0K060iZRE17#..(J,XLI)..(GCC,IND)201610-201903

main52161-0K060iNDE170..G201703-201903

NEW J PACKAGE

main52161-16010iNZE170,ZRE171..PKN201407-201707

sub52161-0K040

main52161-16010iNDE170,ZRE17#..GCC,IND,TAIW201310-202007

(J)

sub52161-0K040

main52161-16010iZRE172..18E..TH201611-201907

SPORTY PACKAGE,(J)

sub52161-0K040

main52161-16010iZRE173201907-202007

LOW GRADE PACKAGE

sub52161-0K040

53101GRILLE SUB-ASSY, RADIATOR

main53100-02650iZRE172..J201310-201702

PLATED

main53100-02650iNDE170..G201405-201702

PLATED,NEW J PACKAGE

main53100-02650iNDE170..G201405-201702

PLATED,HE PACKAGE

main53100-02660iZRE172..TAIW..E201310-201609

PLATED,SPORTY PACKAGE

main53100-02670iZRE171..6F..GLI201310-201702

PLATED

main53100-02750iZRE172..18E..TH201312-201709

PLATED

main53100-02750iZRE173..20V..(MA,PHL)201312-201610

PLATED,SPORTY PACKAGE

main53100-02760iZRE172..PKN201312-201709

PLATED

main53100-02B50iNDE170..G201703-201906

NEW J PACKAGE

main53100-02B50iZRE17#..(J,XLI)..(GCC,IND)201610-201906

main53100-02B70iZRE172..6F..(G,GL);ZRE172..CVT..(IND,TAIW);NDE170,ZRE171,173..(G,GL,GLI)..(GCC,IND)201610-201906

main53100-02B80iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main53100-02B80iZRE172,173..18GS,20V201611-202007

main53100-02B90iZRE172..CVT..VN201611-202201

main53100-02B90iZRE173..VN201709-202007

LOW GRADE PACKAGE

main53100-02C00iNZE170;ZRE171..(CVT,MTM)..N201707-202208

main53100-02C70-A0iZRE172..TAIW..E201601-201609

X PACKAGE(REAR EMBLEM "X"),SUPER WHITE 2,040

main53100-02C70-A0iZRE172..TAIW..E201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"),SUPER WHITE 2,040

main53100-02C70-A1iZRE171,173..GLI..GCC201601-201609

X PACKAGE(REAR EMBLEM "X"),WHITE PEARL CS.,070

main53100-02C70-B0iZRE172..TAIW..E201601-201609

X PACKAGE(REAR EMBLEM "X"),SILVER ME.,1F7

main53100-02C70-B0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"),SILVER ME.,1F7

main53100-02C70-B1iZRE173..GLI;ZRE172..TAIW201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"),GRAY ME.,1G3

main53100-02C70-B1iZRE172..TAIW..E201601-201609

X PACKAGE(REAR EMBLEM "X"),GRAY ME.,1G3

main53100-02C70-D0iZRE172..TAIW..E201601-201609

X PACKAGE(REAR EMBLEM "X"),RED M.M.,3R3

main53100-02C70-D0iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"),RED M.M.,3R3

main53101-02110iNZE170,ZRE171..PKN201407-201707

NO PAINT REQ.

53114BGRILLE, RADIATOR, UPPER

main53114-02310iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

main53114-02440iNDE170,ZRE17#..GCC,IND,TAIW201610-201906

main53114-02450iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,PKN,TH;NZE170,ZRE171,173..GEN,MA,PHL,PKN,SGP,TH,VN201611

main53114-02500iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

X PACKAGE(REAR EMBLEM "X")

main53114-02500iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")

main53114-YP010iZRE17#202407

MLM PACKAGE

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02220iNDE170..G201405-201702

HE PACKAGE

main53121-02220iNZE170,ZRE171..PKN201310-201707

main53121-02220iNDE170..G201405-201702

NEW J PACKAGE

main53121-02230iZRE171,173..4FC..GLI..GCC201310-201609

SPORTY PACKAGE

main53121-02240iZRE171..6F..GLI201310-201702

main53121-02270iZRE173..20V..(MA,PHL)201312-201610

SPORTY PACKAGE

main53121-02270iZRE173..VN201312-201709

main53121-02280iZRE173..20G;ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF)201312-201709

main53121-02350iZRE17#..(J,XLI)..(GCC,IND)201610-201906

main53121-02350iNDE170..G201703-201906

NEW J PACKAGE

main53121-02370iZRE172..6F..(G,GL);ZRE172..CVT..(IND,TAIW);NDE170,ZRE171,173..(G,GL,GLI)..(GCC,IND)201610-201906

main53121-02380iZRE172,173..18GS,20V201611-202007

main53121-02380iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main53121-02390iZRE173..VN201709-202007

LOW GRADE PACKAGE

main53121-02390iZRE172..6F..PKN201611-202201

main53121-02440iZRE171..4FC..N201707-202208

53124EMOULDING, RADIATOR GRILLE, LOWER LH

main53124-02210iNDE170..G201405-201702

NEW J PACKAGE

main53124-02210iZRE173..6F201310-201707

main53124-02210iNDE170..G201405-201702

HE PACKAGE

main53124-02220iZRE171,173..4FC..GLI..GCC201310-201609

SPORTY PACKAGE

main53124-02230iZZE172201310-201702

main53124-02260iZRE172..18E..TH201312-201610

SPORTY PACKAGE

main53124-02260iZRE173..VN201312-201709

main53124-02270iZRE173..20G;ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF)201312-201709

main53124-02340iZRE17#..(J,XLI)..(GCC,IND)201610-201906

main53124-02340iNDE170..G201703-201906

NEW J PACKAGE

main53124-02360iZRE172..6F..(G,GL);ZRE172..CVT..(IND,TAIW);NDE170,ZRE171,173..(G,GL,GLI)..(GCC,IND)201610-201906

main53124-02370iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main53124-02370iZRE172,173..18GS,20V201611-202007

main53124-02380iZRE173..VN201709-202007

LOW GRADE PACKAGE

main53124-02380iZRE172..6F..PKN201611-202201

main53124-02430iNZE170;ZRE171..(CVT,MTM)..N201707-202208

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-02070iNDE170..G201405-201702

NEW J PACKAGE

main53125-02070iZRE173..6F201310-201707

main53125-02070iNDE170..G201405-201702

HE PACKAGE

main53125-02080iZRE172..TAIW..E201310-201609

SPORTY PACKAGE

main53125-02090iZZE172201310-201702

main53125-02120iZRE172..18E..TH201312-201610

SPORTY PACKAGE

main53125-02120iZRE173..VN201312-201709

main53125-02130iZRE172..VN201312-201709

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-02100iNDE170..G201405-201702

HE PACKAGE

main53126-02100iZRE172..J201310-201707

main53126-02100iNDE170..G201405-201702

NEW J PACKAGE

main53126-02110iZRE171,173..4FC..GLI..GCC201310-201609

SPORTY PACKAGE

main53126-02120iZZE172201310-201702

main53126-02150iZRE172..18E..TH201312-201610

SPORTY PACKAGE

main53126-02150iZRE173..VN201312-201709

main53126-02160iZRE172..VN201312-201709

53141COVER, RADIATOR

main53141-02110iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201709

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-02120iZRE172,173..VN201310-201709

7501

9010906382

main90109-06382

9016740057

main90167-40057

12 parts on this diagram · 3 diagrams in section
