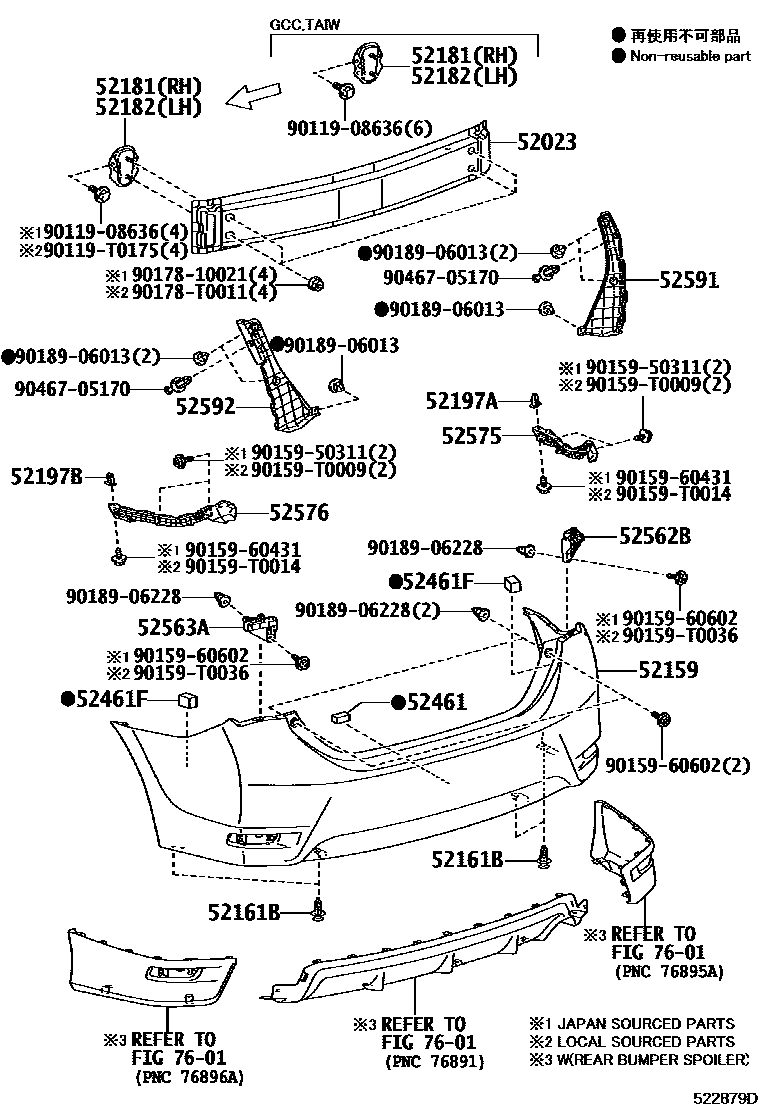

REAR BUMPER & BUMPER STAY

0001 1 0002 1SPORTY PACKAGE OR X PACKAGE 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02190iZRE171,173..CVT..GCC201512-201609

52159COVER, REAR BUMPER

main52159-0Z904supersedes 52159-0Z944iZRE171..16J..CNG201312-201512

PAINT REQ.

main52159-0Z905iZRE172..VN201312-201709

PAINT REQ.

main52159-0Z906supersedes 52159-0Z908iZRE172..ARL..(E,N);ZRE172,173..CVT..(IDN,MA);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL)201312-201610

PAINT REQ.

main52159-0Z907iZRE172..18E..TH201611-201907

PAINT REQ.,SPORTY PACKAGE

main52159-0Z909iZRE171,173..GCC201610-201903

PAINT REQ.

main52159-0Z910iZZE172..GLI201310-201409

PAINT REQ.

main52159-0Z912iNDE170..G201405-201702

PAINT REQ.,NEW J PACKAGE

main52159-0Z913iNDE170,ZRE172..G,GL,VL201405-201702

PAINT REQ.

main52159-0Z914iNZE170,ZRE171,172..PKN201707-202012

main52159-0Z933iZRE172..ARL..D;ZRE172..18G..IDN;ZRE171,172..(ATM,CVT)..(18G,GLI)..(GEN,VN)201611-202008

main52159-0Z934supersedes 52159-0Z908iZRE172..ARL..(E,N);ZRE172,173..CVT..(IDN,MA);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL)201611-201907

PAINT REQ.

main52159-0Z935iZRE173..LHD..20V201611-202007

main52159-0Z936iZRE172..J201804-201906

PAINT REQ.

main52159-0Z969iZRE172..6F202012-202109

main52159-0Z911iZRE172..TAIW..E201310-201609

PAINT REQ.,SPORTY PACKAGE

main52159-0Z922iZRE171,173..4FC..GLI..GCC201410-201512

PAINT REQ.,SPORTY PACKAGE

main52159-0Z928supersedes 52159-0Z932iZRE172..TAIW..E201601-201609

PAINT REQ.,SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")

main52159-0Z929iZRE171,173..GLI..GCC201601-201609

PAINT REQ.,X PACKAGE(REAR EMBLEM "X")

main52159-0Z945iZRE171,173..GLI..GCC201709-201903

PAINT REQ.,X PACKAGE(REAR EMBLEM "X")

52161BPIECE, REAR BUMPER

main52161-0K040×4iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main52161-0K060×4iZZE172201310-201409

main52161-16010×4iZRE173..VN201405-201709

52181ARM, REAR BUMPER, RH

main52181-02180iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main52181-02190iZRE171..16J..CNG201312-201512

52182ARM, REAR BUMPER, LH

main52182-02150iZZE172201310-201409

main52182-02160iZRE171..HTWC..TH201312-201601

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iZZE172201310-201409

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-22020iZZE172201310-201409

52461PAD, REAR BUMPER, CENTER

main52462-02240iZZE172201310-201409

main52462-02241iZRE173..6F;ZRE171..6F..GLI201504-201511

main52462-YP050×2iZRE17#..CVT202407

MLM PACKAGE

52461FPAD, REAR BUMPER

main52462-02200×2iZZE172201310-201409

main52462-02201×2iZRE173..6F;ZRE171..6F..GLI201504-201511

main52462-YP040×2iZRE17#..CVT202407

MLM PACKAGE

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02250iZZE172201310-201409

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02250iZZE172201310-201409

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02140iZZE172201310-201409

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02140iZZE172201310-201409

52591SEAL, REAR BUMPER SIDE, RH

main52591-02300iZZE172201310-201409

main52591-02301iZRE17#..GCC,TAIW201601-201609

main52591-YP050iZRE17#..CVT202407

MLM PACKAGE

52592SEAL, REAR BUMPER SIDE, LH

main52592-02300iZZE172201310-201409

main52592-02301iZRE17#..GCC,TAIW201601-201609

main52592-YP050iZRE17#..CVT202407

MLM PACKAGE

7601

9011908636

main90119-08636

90119T0175

main90119-T0175

9015950311

main90159-50311

9015960431

main90159-60431

9015960602

main90159-60602

90159T0009

main90159-T0009

90159T0014

main90159-T0014

90159T0036

main90159-T0036

9017810021

main90178-10021

90178T0011

main90178-T0011

9018906013

main90189-06013

9018906228

main90189-06228

9046705170

main90467-05170

29 parts on this diagram · 3 diagrams in section
