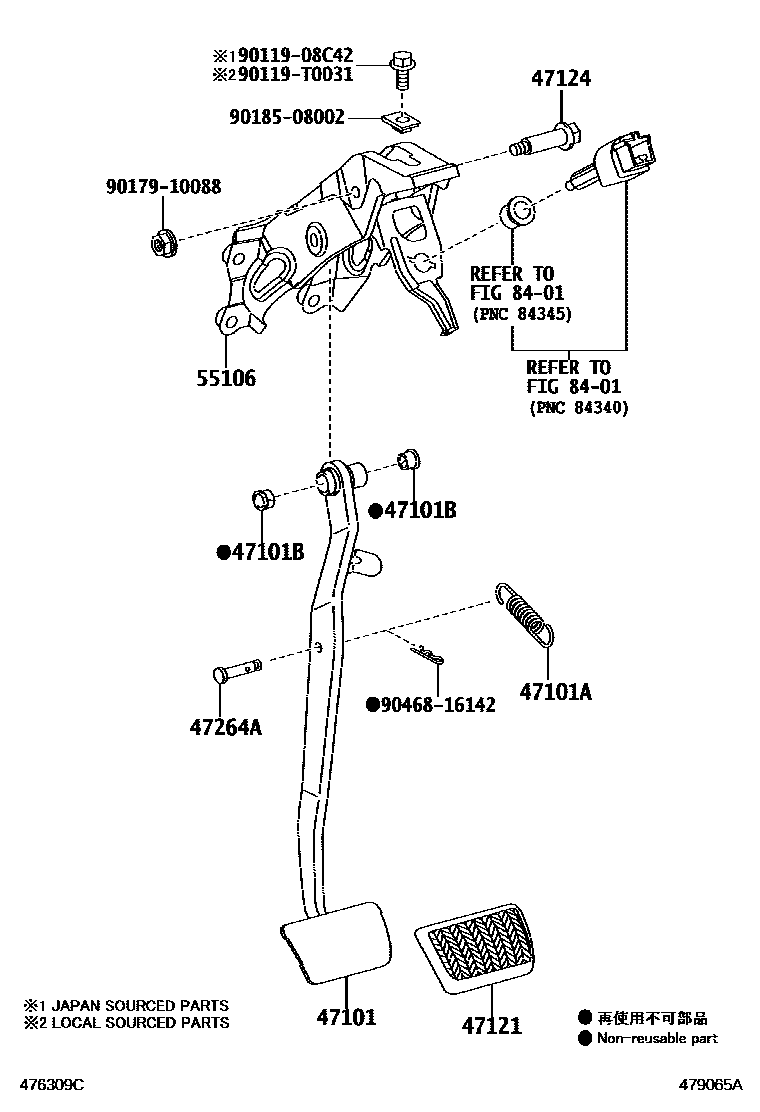

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02530iZRE171..16G..TH201312-201601

main47101-02540iZRE171..16J..HTWC201312-201601

main47101-02550iZRE172,173..CVT..VN201312-201709

main47101-02560iZRE171,172..6F..(16E,16G,18E,XLI)..(GEN,PHL,VN)201611-202007

main47101-02570iZZE172..4FC201310-201409

main47101-02580iZRE171..6F..XLI..GCC201310-201609

main47101-02590iZRE171..4FC..N201707-202208

main47101-02600iNZE170,ZRE171..MTM..PKN201707

main47101-02620iNDE170,ZRE172..6F..IND201703-201906

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14058iNDE170,ZRE172..IND201310-201702

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZZE172201310-201409

47121PAD, BRAKE PEDAL

main31321-02020iNDE170,ZRE172..6F..IND201709-201906

main31321-02030iZRE172..6F..PKN201707-202109

main31321-02060iZZE172..5F201310-201409

main31321-02090iZRE172..18E..VN;ZRE171,172..6F..(ARL,GEN,IDN,PHL,TH)201611-202007

main31321-42010iNDE170,ZRE172..6F..IND201405-201702

main47121-02040iNZE170,ZRE171,172..(ATM,CVT)..PKN201407-201707

main47121-02060iZRE172..TAIW201310-201609

main47121-02090iZRE172..CVT..IND201312-201702

47124SHAFT, BRAKE PEDAL

main90109-10174iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

47264APIN(FOR PUSH ROD)

main47148-33011iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02180iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

main55106-02200iZRE171,173..CVT..GCC201512-201609

main55106-02280iNDE170,ZRE172..6F..IND201703-201906

main55106-02290iZRE172..CVT..IND201312-201702

main55106-02300iZRE172,173..VN201312-201709

8401

9011908C42

main90119-08C42

90119T0031

main90119-T0031

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 1 diagram in section
