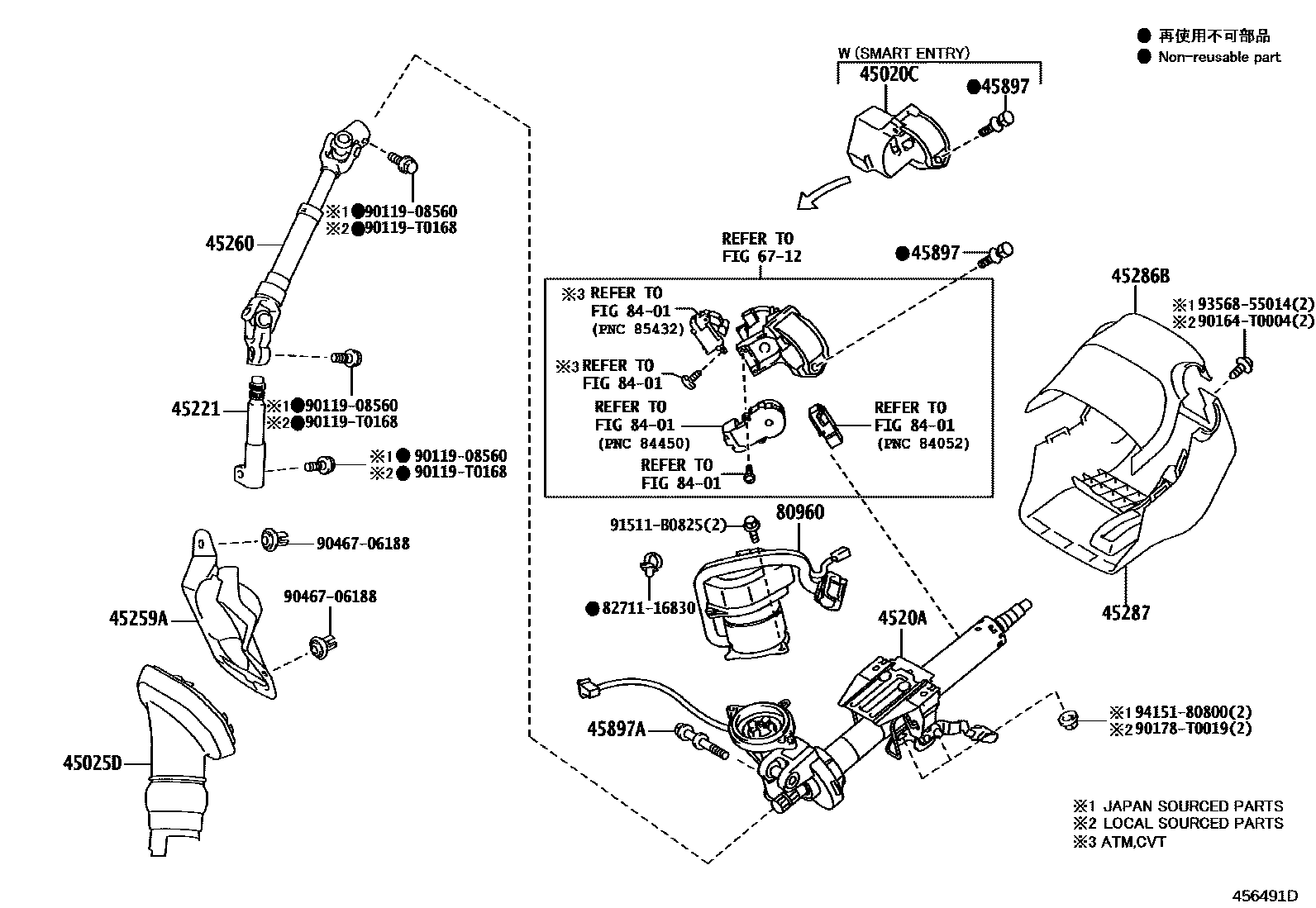

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-02550iNDE170,ZRE172..GL,VL201405-201702

sub45020-02551

main45020-02551iNDE170,ZRE172..GL,VL201703-201906

main45020-52170iZRE171..6F..GLI201310-202201

main45020-52170iZRE172..TAIW..E201310-201907

SPORTY PACKAGE

main45020-52170iZRE172..TAIW..E201404-201609

SPORTY PACKAGE&KEY PLATE-SMART KEY,WITH(PANIC BUTTON)

main45020-52170iZRE172..6F..PKN201707-202208

UP GRADE PACKAGE

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02191iZRE171..16J..CNG201312-201907

main45025-02201iZRE171..4FC..N201407-202208

main45025-02211iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201312-202201

main45025-02221iZRE173..6F;ZRE171..6F..GLI201310-201903

main45025-02250iNDE170,ZRE172..IND201405-201906

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02200iZRE171..4FC..N201312-202208

main4520A-02200iZRE171..G201410-201907

LOW GRADE PACKAGE

main4520A-02220iZRE171..4FC201707-202208

UP GRADE PACKAGE

main4520A-02220iNDE170,ZRE172..GL,VL201312-201702

main4520A-02220iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main4520A-02240iZRE171,172..(CVT,MTM)..(16E,16G,18E,XLI)..(GEN,PHL,VN)201312-202007

main4520A-02240iZRE172..18G..VN201810-202008

LOW GRADE PACKAGE

main4520A-02250iZRE172..TAIW..(D,E);ZRE171..6F..XLI..GCC201310-201903

main4520A-02260iZRE172..18G..VN201312-202201

main4520A-02270iZRE172..TAIW..E201310-201609

SPORTY PACKAGE

main4520A-02270iZZE172..GLI201310-201903

45221SHAFT, STEERING INTERMEDIATE

main45221-02130iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main45221-02150iZRE173..6F;ZRE171..6F..GLI201310-201903

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02130iZRE171..4FC..N201312-202208

main45259-02210iZRE17#..GCC,TAIW201310-201903

main45259-02220iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201312-202201

main45259-02230iNDE170,ZRE172..IND201405-201906

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02210iZRE172..RHD..CVT;ZRE171..RHD..(CVT,MTM);ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE171,173..RHD..(20G,20V,G,GL,GLI,XLI)201312-202208

main45260-02230iZRE171,173..LHD..(GEN,PHL)201312-202201

main45260-02240iZRE171,173..4FC..GCC201310-201903

45286BCOVER, STEERING COLUMN, UPR

main45286-02460-C0iZRE172..6F..VN201312-201907

BLACK,TRIM0#,2#

sub45286-02500

main45286-02460-C0iZRE171..G201410-202008

LOW GRADE PACKAGE,BLACK,TRIM0#,2#

sub45286-02500

main45286-02460-C0iZRE172,173..(18E,20G)..MA201312-201907

BLACK,TRIM2#

sub45286-02500

main45286-02460-C0iZRE171,172..(16E,18E)..(CNG,HTWC)..(TH,VN)201312-202007

BLACK,TRIM0#

sub45286-02500

main45286-02460-C0iZRE171..RHD..GEN;ZRE171..6F..(16E,XLI)..(GEN,PHL)201601-201907

BLACK,TRIM1#

sub45286-02500

main45286-02460-C0iZRE172..18E..TH;ZRE171..16G..PHL201312-201907

BLACK,TRIM0#,1#

sub45286-02500

main45286-02460-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

sub45286-02500

main45286-02460-C0iZRE171..16E..PHL201312-201610

BLACK,TRIM0#,1#,2#

sub45286-02500

main45286-02470-C0iZRE171,173..XLI..GCC201310-201903

BLACK,TRIM0#,1#

main45286-02470-C0iZRE171,173..XLI..GCC201310-201903

BLACK,TRIM2#

main45286-02470-C0iZZE172..XLI201310-201409

BLACK,TRIM0#,1#,2#

main45286-02470-C0iZRE172..TAIW..E201310-201609

BLACK,TRIM0#,2#

main45286-02480-C0iNDE170,ZRE172..G,J201405-201906

BLACK,TRIM0#

main45286-02490-C0iNZE170,ZRE171,172..PKN201407-201707

BLACK,TRIM0#

main45286-02500-C0iZRE172..PKN201707

UP GRADE PACKAGE,BLACK,TRIM0#,2#

main45286-02500-C0iZRE172,173..(18E,20G)..MA201312-201907

BLACK,TRIM2#

main45286-02500-C0iZRE172..ARL..(E,N);ZRE172,173..(18GS,18V,20V)..(MA,PHL,TH)201312-202201

BLACK,TRIM0#,2#

main45286-02500-C0iZRE172..ARL..(E,N);ZRE172,173..(18GS,18V,20V)..(MA,PHL,TH)201312-201610

BLACK,TRIM0#,1#

main45286-02500-C0iZRE172..ARL..(E,N);ZRE172,173..(18GS,18V,20V)..(MA,PHL,TH)201312-201907

BLACK,TRIM0#

main45286-02500-C0iZRE171..LHD..4FC201611-201907

BLACK,TRIM0#,1#,2#

main45286-02500-C0iZRE171..LHD..4FC201611-201907

SPORTY PACKAGE,BLACK,TRIM2#

main45286-02500-C0iZRE171..ATM,CVT202107

UP GRADE PACKAGE,BLACK,TRIM0#

main45286-02510-C0iZRE172..TAIW..(E,G)201310-201903

BLACK,TRIM0#,2#

main45286-02510-C0iZRE172..TAIW..(E,G)201310-201903

BLACK,TRIM0#,1#,2#

main45286-02510-C0iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,BLACK,TRIM0#,2#

main45286-02510-C0iZRE171,173..4FC..GLI..GCC201310-201609

BLACK,TRIM0#,1#

main45286-02530-C0iNDE170,ZRE172..GL,VL201405-201906

BLACK,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-02440-C0iZRE171..RHD..GEN;ZRE171..6F..XLI..GEN201312-202007

BLACK,TRIM0#

main45287-02440-C0iZRE172,173..(18E,20G)..MA201312-201907

BLACK,TRIM2#

main45287-02440-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main45287-02440-C0iZRE171..16G..TH201312-201907

BLACK,TRIM0#,2#

main45287-02440-C0iZRE171..16E..PHL201312-201610

BLACK,TRIM0#,1#,2#

main45287-02440-C0iZRE171..16E..PHL201312-201907

BLACK,TRIM0#,1#

main45287-02440-C0iZRE171..G201410-202008

LOW GRADE PACKAGE,BLACK,TRIM0#,2#

main45287-02440-C0iZRE171..16J201601-201907

BLACK,TRIM1#

main45287-02450-C0iZRE172..TAIW..E201310-201903

BLACK,TRIM2#

main45287-02450-C0iZRE171..6F..XLI..GCC201310-201903

BLACK,TRIM0#,1#

main45287-02450-C0iZZE172..XLI201310-201409

BLACK,TRIM0#,1#,2#

main45287-02450-C0iZRE172..TAIW..E201310-201609

BLACK,TRIM0#,2#

main45287-02460-C0iNDE170,ZRE172..G,J201405-201906

BLACK,TRIM0#

main45287-02470-C0iNZE170,ZRE171,172..PKN201407-201707

BLACK,TRIM0#

main45287-02480-C0iZRE171..LHD..4FC201312-201907

BLACK,TRIM0#

main45287-02480-C0iZRE171..LHD..4FC..GEN201312-201610

BLACK,TRIM0#,1#

main45287-02480-C0iZRE171..LHD..4FC..GEN201312-202201

BLACK,TRIM0#,2#

main45287-02480-C0iZRE171..LHD..4FC..GEN201312-201907

BLACK,TRIM2#

main45287-02480-C0iZRE171..LHD..4FC201611-201907

BLACK,TRIM0#,1#,2#

main45287-02480-C0iZRE171..LHD..4FC201611-201907

SPORTY PACKAGE,BLACK,TRIM2#

main45287-02480-C0iZRE172..PKN201707

UP GRADE PACKAGE,BLACK,TRIM0#,2#

main45287-02480-C0iZRE171..ATM,CVT202107

UP GRADE PACKAGE,BLACK,TRIM0#

main45287-02490-C0iZRE172..TAIW..E201310-201903

BLACK,TRIM0#,2#

main45287-02490-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK,TRIM0#,2#

main45287-02490-C0iZRE171,173..GLI..GCC201310-201609

BLACK,TRIM0#,1#

main45287-02490-C0iZZE172..GLI201310-201903

BLACK,TRIM0#,1#,2#

main45287-02510-C0iNDE170,ZRE172..GL,VL201405-201906

BLACK,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202208

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iNZE170,ZRE171,172..PKN201310-202208

6712

80960MOTOR ASSY, POWER STEERING

main80960-02100iZRE172..CVT..VN201310-202208

main80960-02160iZRE17#..GCC,TAIW201608-201903

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9011908560

main90119-08560

90119T0168

main90119-T0168

90164T0004

main90164-T0004

90178T0019

main90178-T0019

9046706188

main90467-06188

91511B0825

main91511-B0825

9356855014

main93568-55014

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
