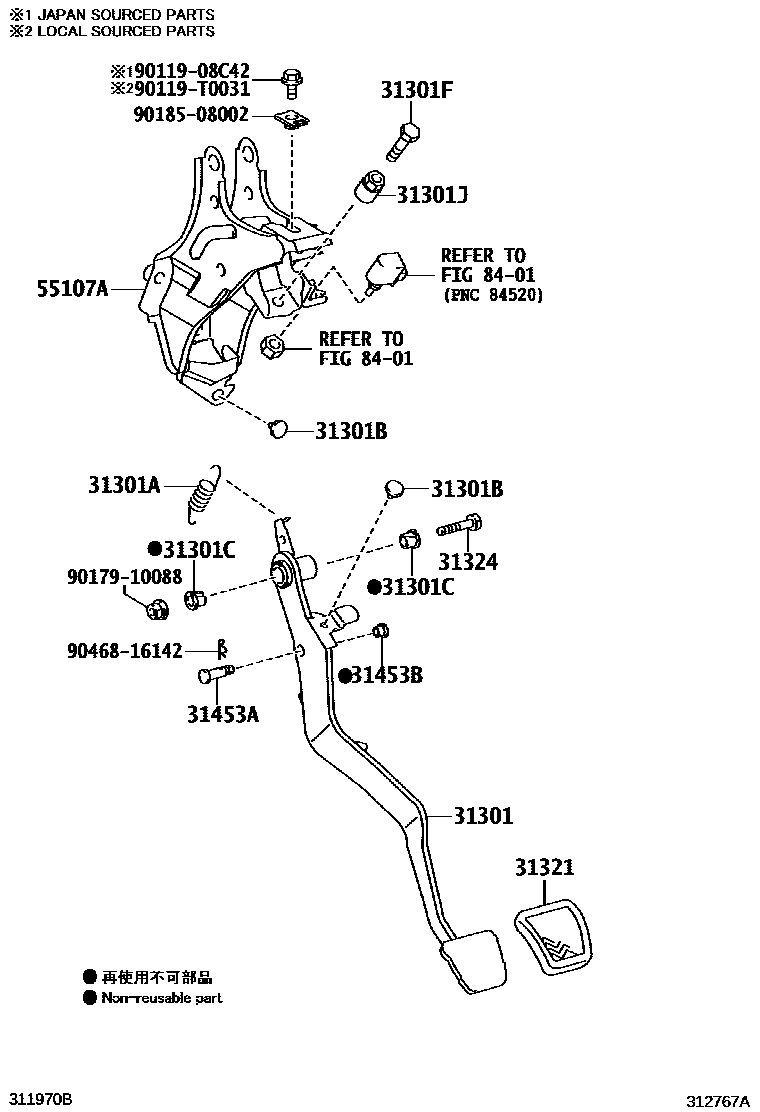

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02271iNZE170..5F201407-201707

main31301-02461iZRE171..6F201909

main31301-02480iZRE171..6F..GCC201610-201903

main31301-02490iZRE173..6F201310-201511

main31301-02520iNDE170201703-201906

main31301-02530iZRE172..6F..IND201405-201702

main31301-02550iZRE171..GXLI;ZRE171..16J..HTWCF201312-201610

main31301-02570iZRE172..6F..PKN201312-201707

main31301-02620iZRE171..LHD..6F..(GEN,PHL)201312-201610

main31301-02630iZRE172..18E..VN201709-202007

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZRE171..6F..GLI201310-201511

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZRE173..6F;ZRE171..6F..GLI201310-201511

main90541-06063iNDE170,ZRE172..6F..IND201803-201906

NO.2:REFER ILLUST.

main90541-T0004iNDE170,ZRE172..6F..IND201611-201802

NO.2:REFER ILLUST.

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZZE172..5F201310-201409

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZZE172..5F201310-201409

main90101-10369iZRE171..16J..HTWCF;ZRE171,172..RHD..6F..(ARL,GEN,IDN)201312-201610

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE172..6F..VN201310-201709

main94120-41000×2supersedes 94120-41000iZRE172..6F..PKN;NDE170,ZRE172..6F..(G,J)201703-202109

31321PAD, CLUTCH PEDAL

main31321-02020iNDE170,ZRE172..6F..IND201709-201906

main31321-02030iNZE170..5F201407-201707

main31321-02060iZZE172..5F201310-201409

main31321-02090iZRE172..6F..PKN201312-201707

main31321-42010iNDE170,ZRE172..6F..IND201703-201708

31324SHAFT, CLUTCH PEDAL

main90109-10167iZRE172..18E..VN;ZRE172..6F..(ARL,IDN);NZE170,ZRE171..MTM..(GEN,PHL,PKN,TH)201611

main90109-10174iZZE172..5F201310-201409

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZZE172..5F201310-201409

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZRE171..16J..HTWCF;ZRE171,172..6F..(ARL,GEN,IDN,PHL)201310-201610

main90386-08033iNDE170,ZRE172..6F..IND201803-201906

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02221iNZE170..5F201707-201911

main55107-02391iZRE171..6F201909

main55107-02400iZRE171..6F..GCC201610-201903

main55107-02410iZRE173..6F201310-201511

main55107-02430iNDE170,ZRE172..6F..IND201703-201906

main55107-02440iZRE171..RHD..6F201611-201907

main55107-02460iZRE172..6F..(ARL,IDN)201312-201610

main55107-02490iZRE171..LHD..6F..(GEN,PHL)201611-201907

main55107-02500iZRE172..6F..VN201409-201709

8401

9011908C42

main90119-08C42

90119T0031

main90119-T0031

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

17 parts on this diagram · 12 diagrams in section
